Description and Function of Each Part

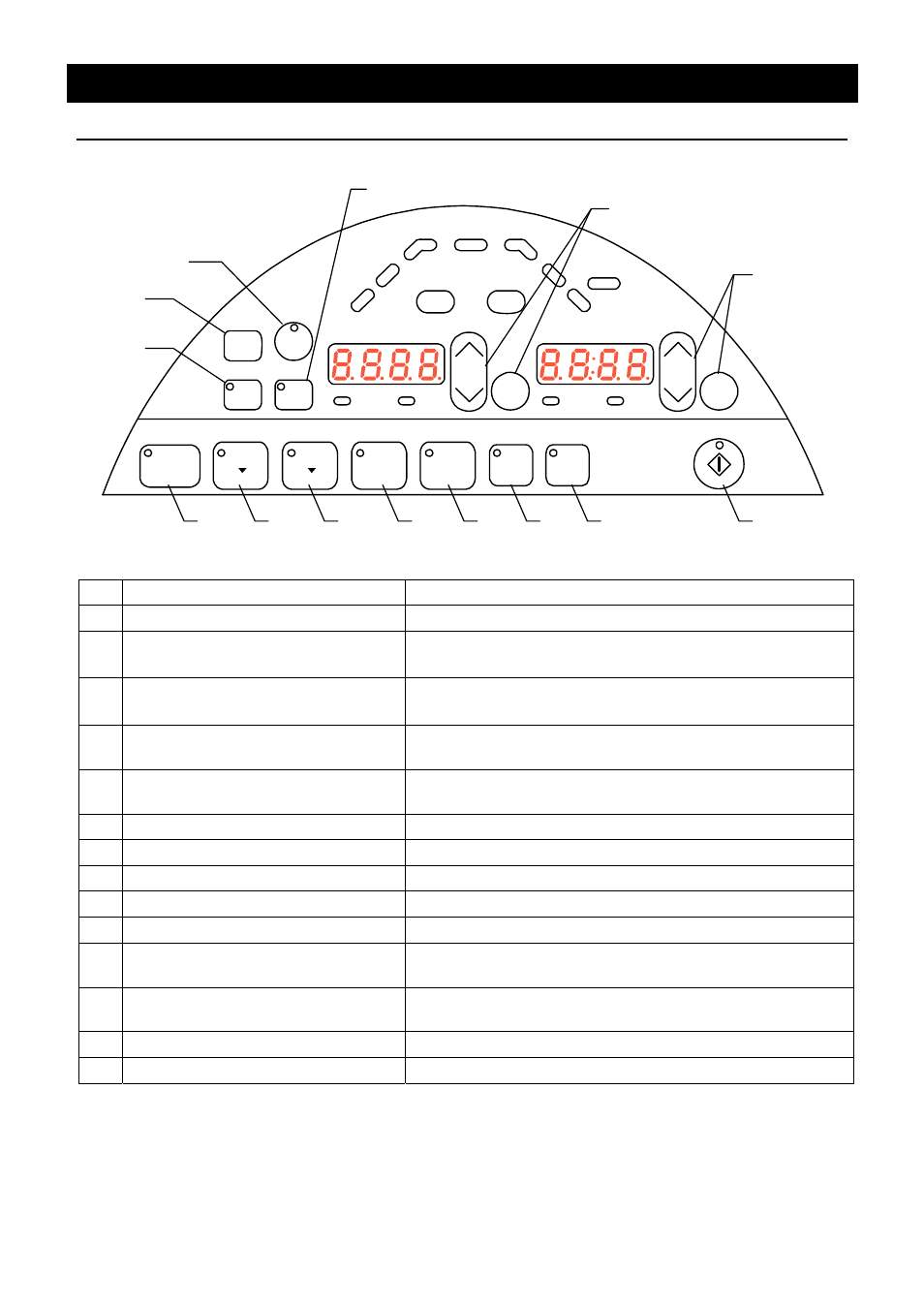

Control Panel (Keys)
MANUAL
MELT
PRE HEAT
AUTO
TEMP
PRES.
STERILIZE/MELT
HEAT
EXHAUST
WARM
SAMPLE
STERILIZE
WARM
/LIQUID
COOLING
FAN
WARM
℃
END
TIME
MAINT.
ENTER ENTER
WARM
STERILIZER
/MELT
STERILIZER
/MELT
START
WARM
STERILIZE
/NORMAL
STERILIZE SET
MEMORY
START/
STOP
No. Name Function
1 Manual course key (MANUAL) This key is used to select manual course.
2 Melting & Warm course key
(MELT→WARM) This key is used to select melting & warm course.
3 Sterilization & Warm course key
(STERILIZE→WARM) This key is used to select sterilization & warm course.
4 Liquid sterilization course key
(STERILIZE/LIQUID) This key is used to select liquid sterilization course.
5 Apparatus sterilization course key
(STERILIZE/NORMAL) This key is used to select apparatus sterilization course.
6 Forced cooling key (COOLING FAN) This key is used to set/cancel the forced cooling.
7 MEMORY (SET MEMORY) This key is used to read/register the memory.
8 Start/stop key (START/STOP) This key is used to start/stop operation.
9 Time setting key (TIME) This key is used to set the time parameter.
10 Temperature setting key (TEMP) This key is used to set the temperature parameter.
11 Sample temperature key (SAMPLE) This key is used to set/cancel the optional sample
temperature sensor (sold separately).
12 Auto start key (AUTO START) This key is used to perform auto start operation. Press it
after selecting the course.
13 Maintenance key (MAINT.) This key is used for maintenance settings.
14 Preheating key (PRE HEAT) This key is used to set the preheating operation.
14
13
12
11
10
9
8 7 6 5 4 3 2 1
