Description and Function of Each Part

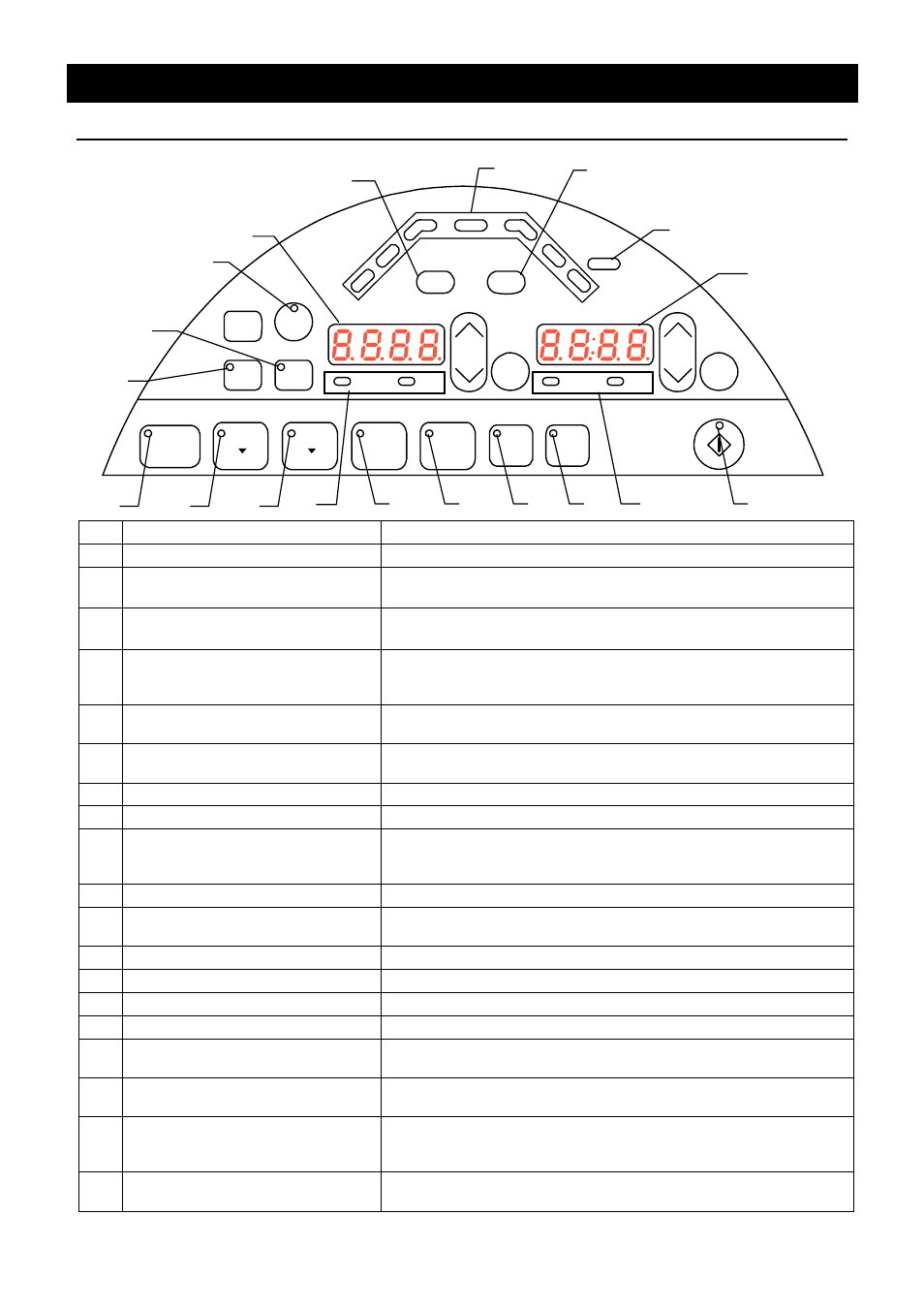

Control Panel (Indicators)
MANUAL
MELT
PRE HEAT
AUTO
TEMP
PRES.
STERILIZE/MELT
HEAT
EXHAUST
WARM
SAMPLE
STERILIZE
WARM
/LIQUID
COOLING
FAN
WARM
℃
END
TIME
MAINT.
ENTER ENTER
WARM
STERILIZER
/MELT
STERILIZER
/MELT
START
WARM
STERILIZE
/NORMAL
STERILIZE SET
MEMORY
START/
STOP
No. Name Function
1 Manual course lamp (MANUAL) This lamp lights up when manual course is selected.
2 Melting & Warm course lamp
(MELT→WARM) This lamp lights up when melting & warm course is selected.
3 Sterilization & Warm course lamp
(STERILIZE→WARM) This lamp lights up when sterilization & warm course is selected.
4 Sterilization/melting & warm
(STERILIZER/MELT, WARM)
temperature lamp This lamp blinks at temperature setting of sterilization/melting & warm.
5 Liquid sterilization course lamp
(STERILIZE/LIQUID) This lamp lights up when liquid sterilization course is selected.
6 Apparatus sterilization course lamp
(STERILIZE/NORMAL) This lamp lights up when apparatus sterilization course is selected.
7 Forced cooling lamp (COOLING FAN) This lamp lights up when forced cooling process is selected.
8 MEMORY lamp (SET MEMORY) This lamp lights up at the setting of memory.
9 Sterilization/melting & warm
(STERILIZER/MELT, WARM)
time lamp This lamp blinks at the setting of time for sterilization/melting & warm
10 Start/stop lamp (START/STOP) This lamp lights up during operation and goes out at operation stop.
11 Time display screen The display blinks at the setting of time parameters. It displays the
remaining time during operation of equipment.
12 Heat-retention lamp (WARM) This lamp blinks at the setting of heat-retention process.
13 End lamp (END) This lamp blinks when operation is completed.
14 Operation monitoring lamp Refer to Page 20.
15 Pressurization lamp (PRES.) This lamp lights up when the equipment is being pressurized.
16 Temperature display screen The display blinks at the setting of temperature parameters. It displays
the temperature inside the chamber during operation of equipment.
17 Auto start lamp (AUTO START) This lamp lights up when auto start key is pressed. It blinks after the
auto start time is set.
18 Sample temperature lamp
(SAMPLE) This lamp lights up when the sample temperature key (SAMPLE) is
selected when optional sample temperature sensor, which is sold
separately, is attached.
19 Preheating lamp (PRE HEAT) This lamp lights up when the preheating key (PRE HEAT) is selected. It
blinks during the preheating operation.
17
5 1 2 3 4 6 7 8 9 10
11
12
13 14
15
16
18
19
