Description and Function of Each Part

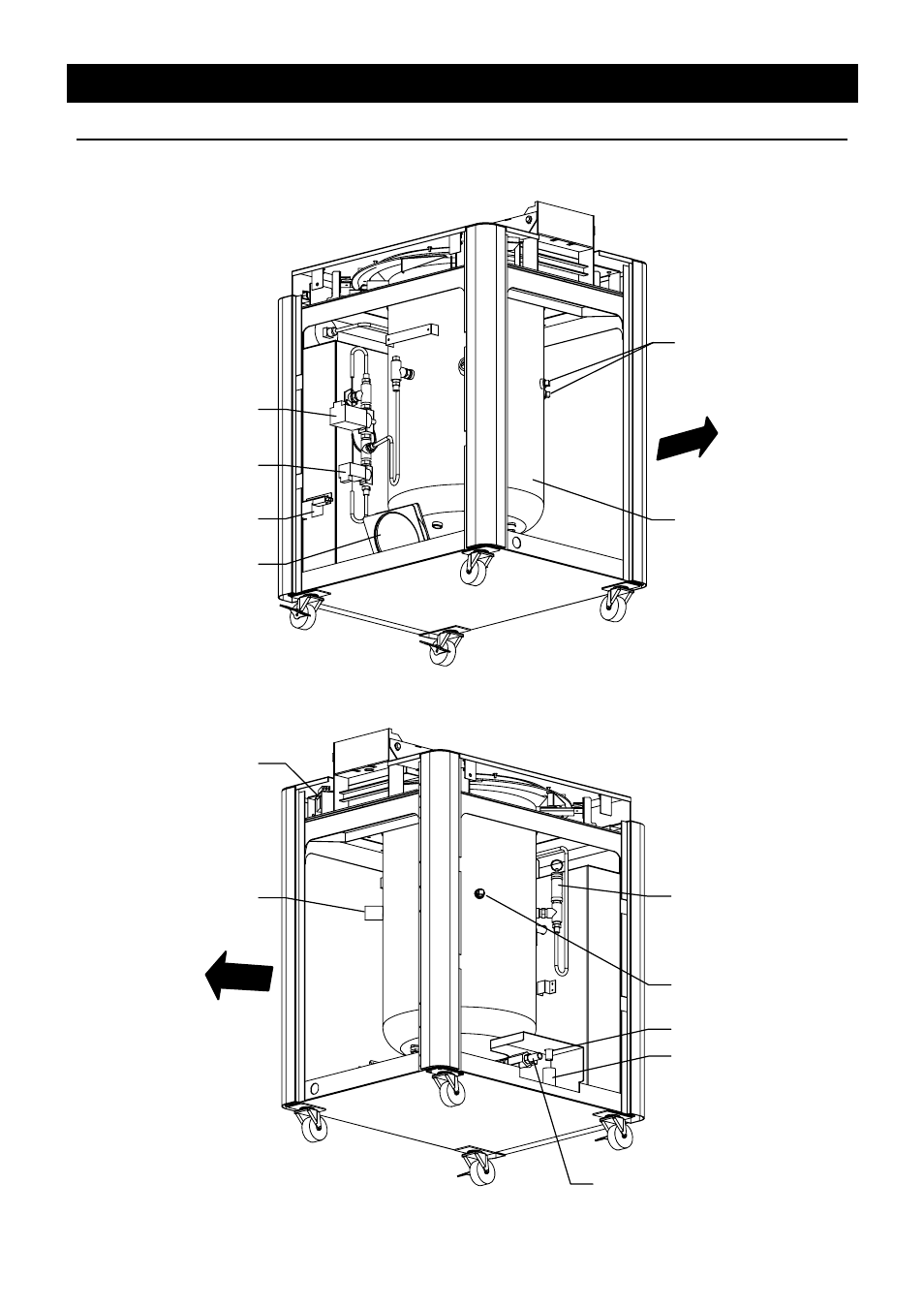

Inner structure
Exhaust solenoid valve (F)
Exhaust solenoid valve (S)
Bottle sensor
Fan motor
Option port (x2)
Chamber
Back face
Full lock
Safety valve
Back face
Chamber temperature
sensor
Option port (x2)
Vapor outlet
Vapor cup
Drain valve
