118

UNLOADING & ASSEMBLY

ATTACHING HAY CONDITIONER

(continued)

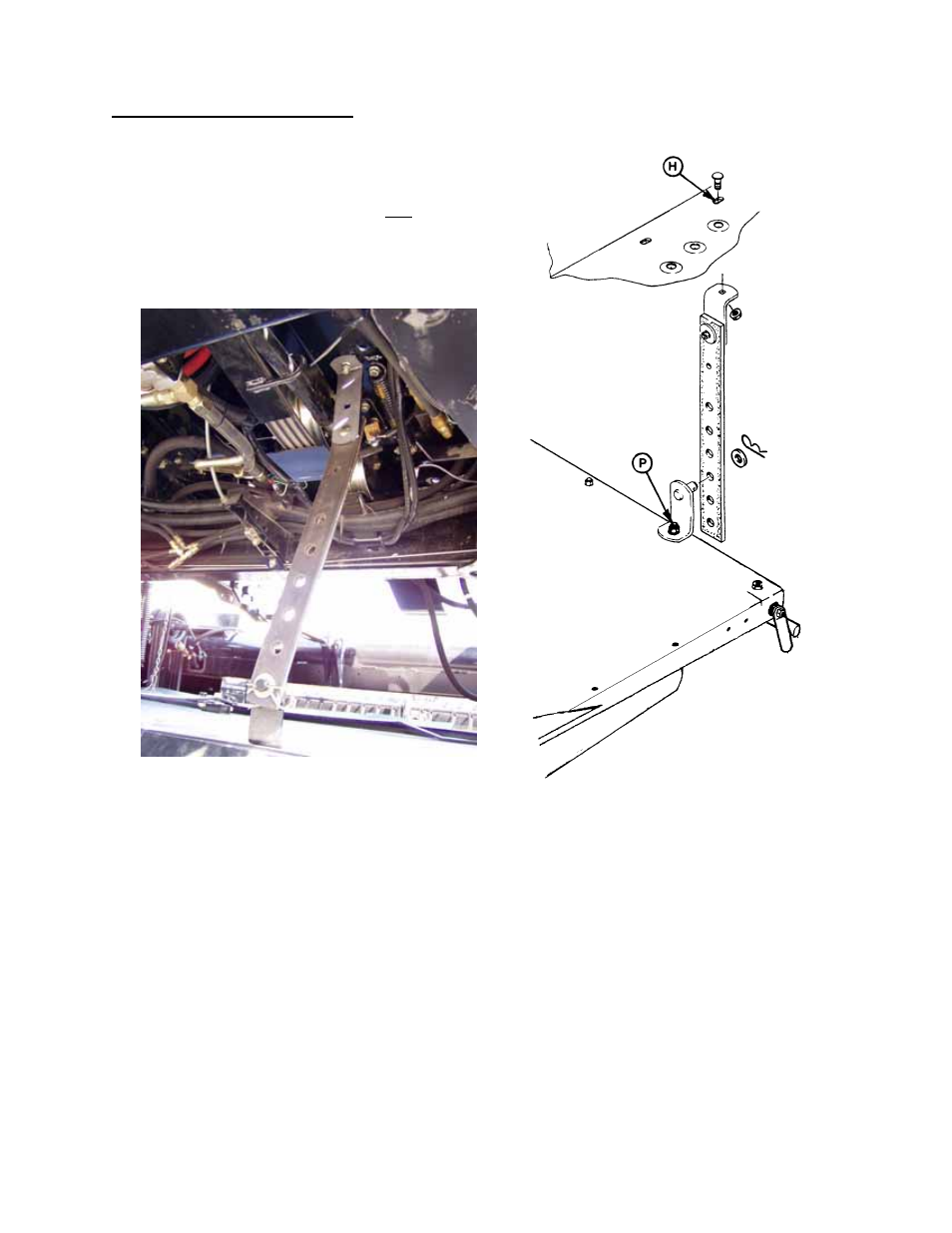

18. Attach rear supports to forming shield assembly,

at the second bolt (P) from each end.

19. Attach top bracket of rear support to rear hole (H)

of the two provided in the tractor floorboard, each

side.

NOTE: For XX52 & XX52i Windrower Tractors,

use the longer top brackets provided. Use the

lower hole for mounting the rubber strap.

XX52 & XX52i

FORMING SHIELD SUPPORT STRAP
