Form # 46290
113
Issue 09/05

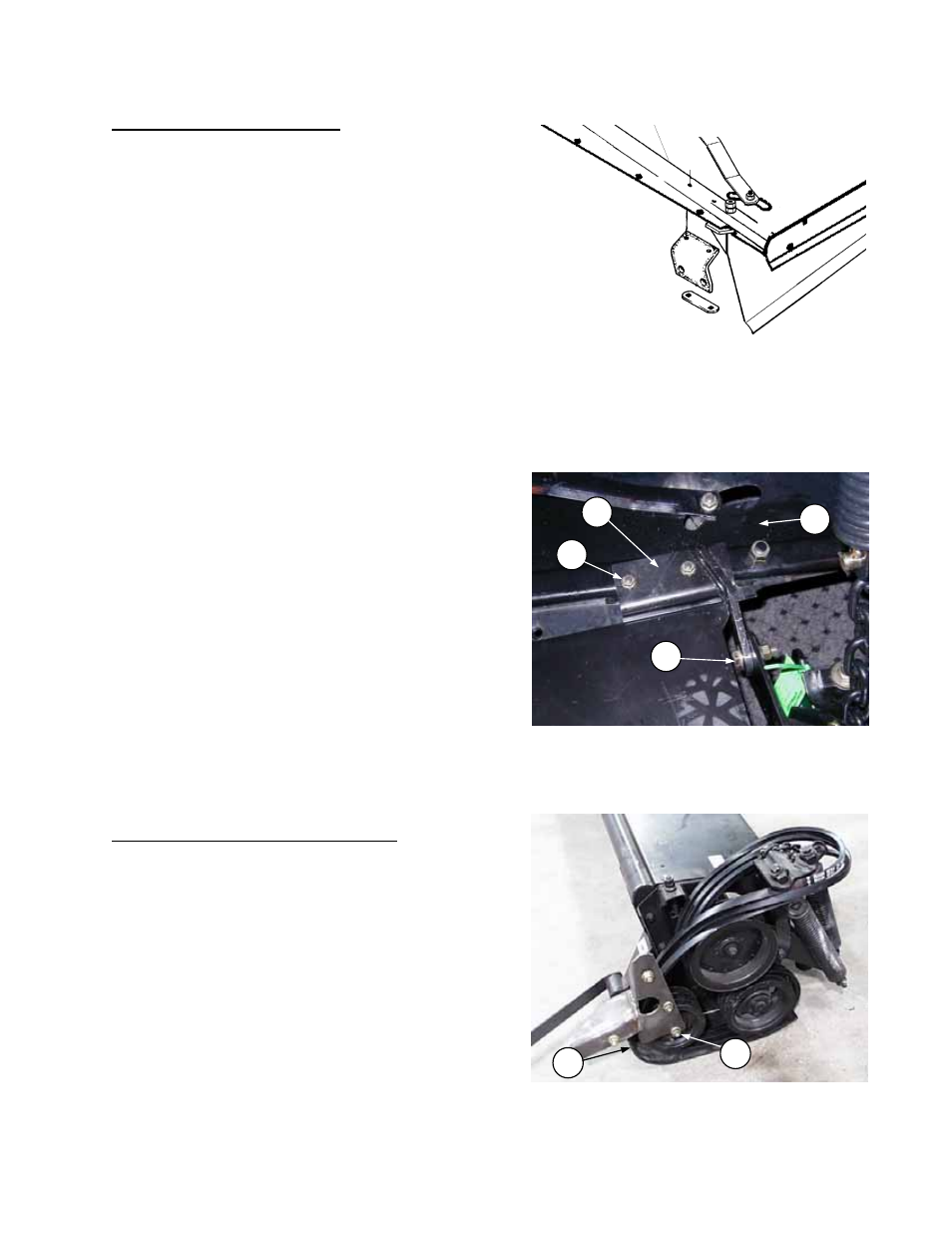

UNLOADING & ASSEMBLY
MOUNTING FORMING SHIELD:
Position hay conditioner and forming shield behind swath
opening of header and proceed as follows:
1. Remove the two rubber hinges and steel brackets
from the front of the conditioner forming shield.
2. Install L/H and R/H hinge brackets (H) onto forming
shield (C).
NOTE: Leave hardware (J) loose until forming shield is
mounted to the conditioner.
3. Install forming shield (C) onto conditioner. Install
spacers and secure with 1/2 x 2 inch hex head bolts
(K), flat washers and lock nuts as shown. Install head
of bolt towards center of conditioner.
4. Tighten mounting bracket hardware (J).
INSTALL CONDITIONER DRIVE BELTS
1. Remove two bolts securing L/H shoe (A).
2. Remove bolt securing grooved idler pulley (B).
3. Install belt as shown and reassemble pulley and shoe.
REMOVE RUBBER HINGES
INSTALL CONDITIONER DRIVE BELTS
A
B
INSTALL HINGE BRACKETS (L/H SHOWN)
H
K
J
C
