Form # 46290 Issue 09/05 103

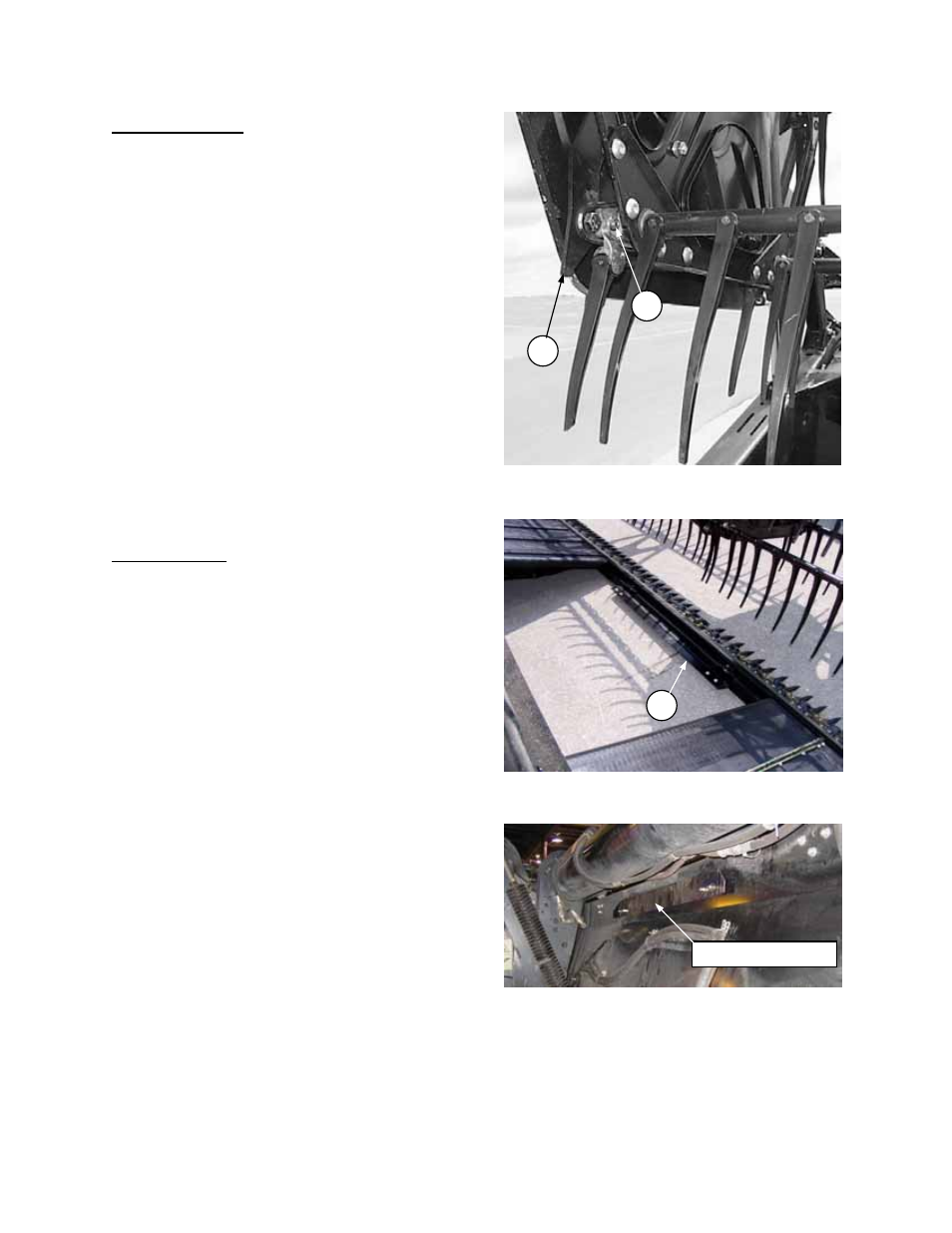

UNLOADING & ASSEMBLY
REEL ASSEMBLY
The reel comes fully assembled except for the following:
Two of the reel cam arms have been disassembled for
shipping. Attach cam arms (B) as shown. Install bolts
with heads inboard and torque to 120 ft.lbs. (162 N·m).
NOTE: Nut (A) on finger casting may need to be
loosened to align bolt with reel cam arm. Retighten when
complete.
END DELIVERY
For headers being set up for end delivery, install bar
(C) onto lugs across center opening at cutterbar. Note
that end tabs bend down and holes in bar are towards
rear of header. This bar prevents draper damage
when end delivering. (Bar is stored on deck
backsheet, or may be at right end panel on some
headers.)
C
INSTALL GUIDE BAR FOR END DELIVERY
GUIDE BAR STORAGE
ASSEMBLE REEL CAM ARMS
B
A
