MacDon 742 HAY CONDITIONER - Manual (Page 112)

Form # 46290 Issue 09/05 110
UNLOADING & ASSEMBLY

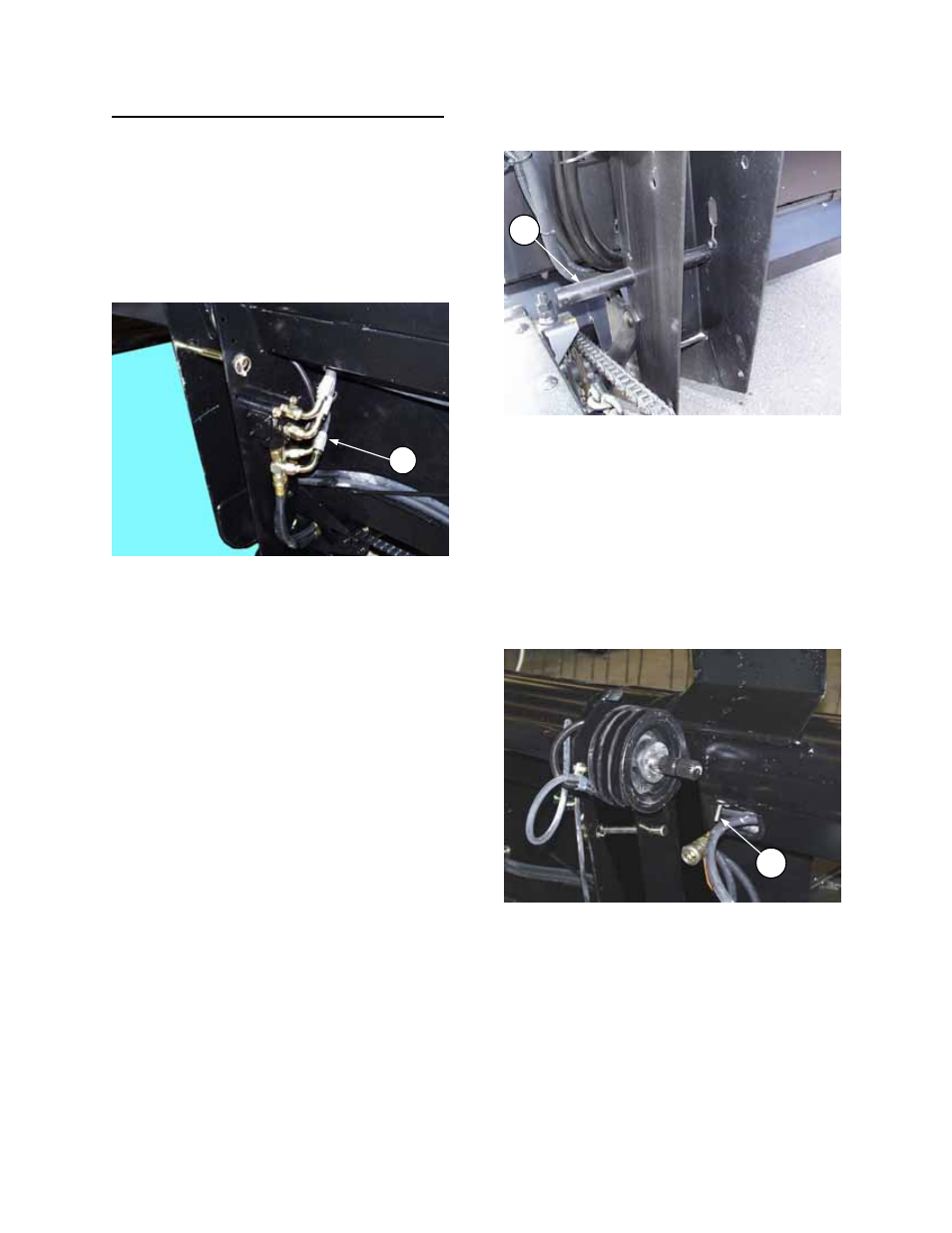

PREPARE HEADER FOR HAY CONDITIONER
1. Install conditioner stop rod (A) through right
header leg as shown. Secure with 3/8 x 3/4”
carriage bolt and flange nut.
NOTE: On hydraulic shift headers, it may be
necessary to remove some hoses from deck
shift assembly (B) at right leg to allow
installation of stop rod. Reassemble when
complete.
2. Install drive pulley on header drive shaft at
keyway near left leg. Remove hose clamp at (F)
to allow pulley installation. Replace clamp when
complete. NOTE: Do not install bolts in tapered
bushing until after conditioner is attached and
belts installed for the first time.
B
DETACH HOSES TO ALLOW ROD
INSTALLATION
INSTALL CONDITIONER STOP ROD
A
INSTALL DRIVE PULLEY
F
