Orbital Antares User Manual
Page 73
Antares
®
OSP-3
User’s Guide
Section 8.0
– Non-Standard Services
Release 1.1
July 2013
62
8.1.2. RUAG 1194VS Separation System
The Antares launch vehicle standard 1575 mm (62 in.) interface allows use of the standard RUAG
PAS47VS Payload Adapter System. This 47‖ marmon clamp and adapter cone separation system has
extensive launch heritage, having flown on Ariane, Atlas, Delta, Proton and other launch vehicles. The
system and its derivatives have a 100% record of mission success in over 200 launches since it was orig-
inally developed.
The 1194VS separation system and its mass capabilities are illustrated in Figure 8.1.2-1. The resulting
payload envelope when using the RUAG 1194VS separation system, including the axial impact of the
adapter cone on the payload envelope, is shown in Figure 8.1.2-2.

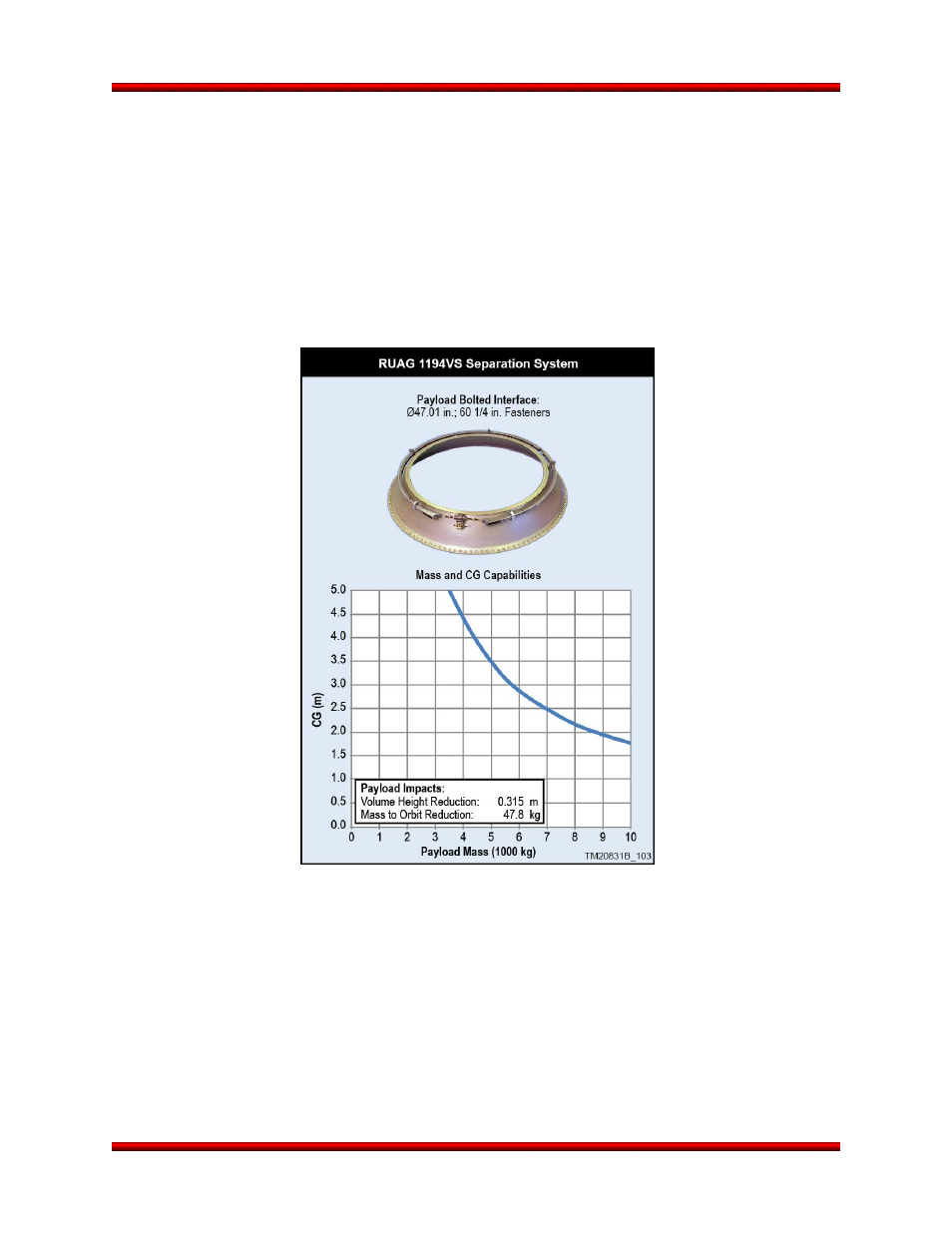

Figure 8.1.2-1. 1194VS Separation System
