Calculate bending moment (m1), Calculate bending moment (m2), Calculate specimen stress – MTS Series 215 Rotary Actuator User Manual
Page 49
Test Setup Using Standard Flexures
Series 215 Rotary Actuator Product Manual
Operation
49
Calculate bending
moment (M1)

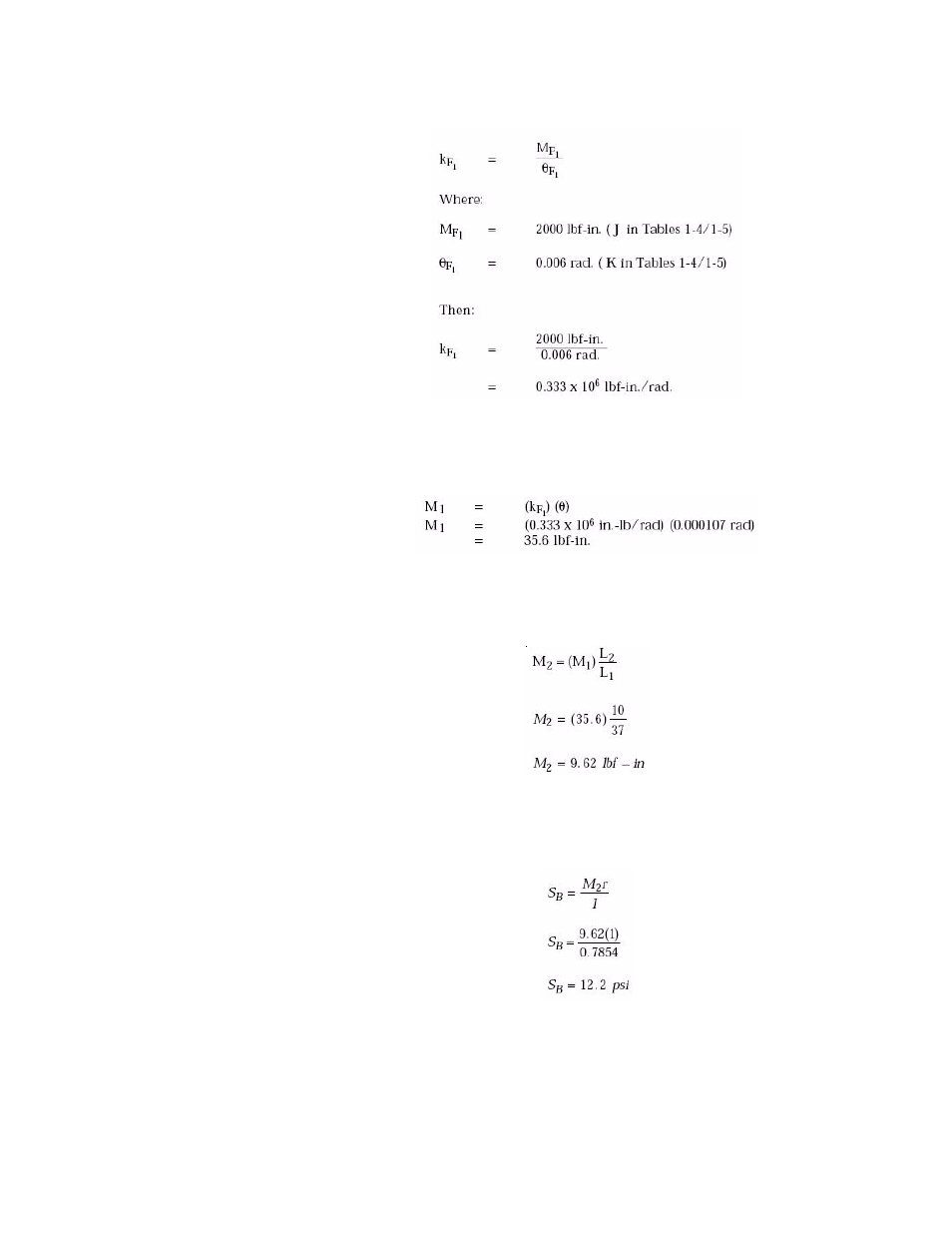

Calculate the bending moment (M
1
) that is applied to the actuator and reaction
bracket when equipped with standard flexures.
Calculate bending
moment (M2)
Calculate the bending moment (M2) induced in the test specimen with standard
flexures installed by using the following formula:
Calculate specimen
stress
Calculate the additional stress (SB) induced in the specimen due to base plate
twist by using the following formula:
The value 12.2 psi represents the amount of stress experienced by the specimen
under test and is an acceptable stress level. Typically, in a torsion test, stress
caused by reaction base or T-slot table twist should be zero or as close to zero as
possible. Specimen stress loading introduces unfavorable loads on the test
