Series 215 Rotary Actuator Product Manual 26
Flange Adapters
Introduction

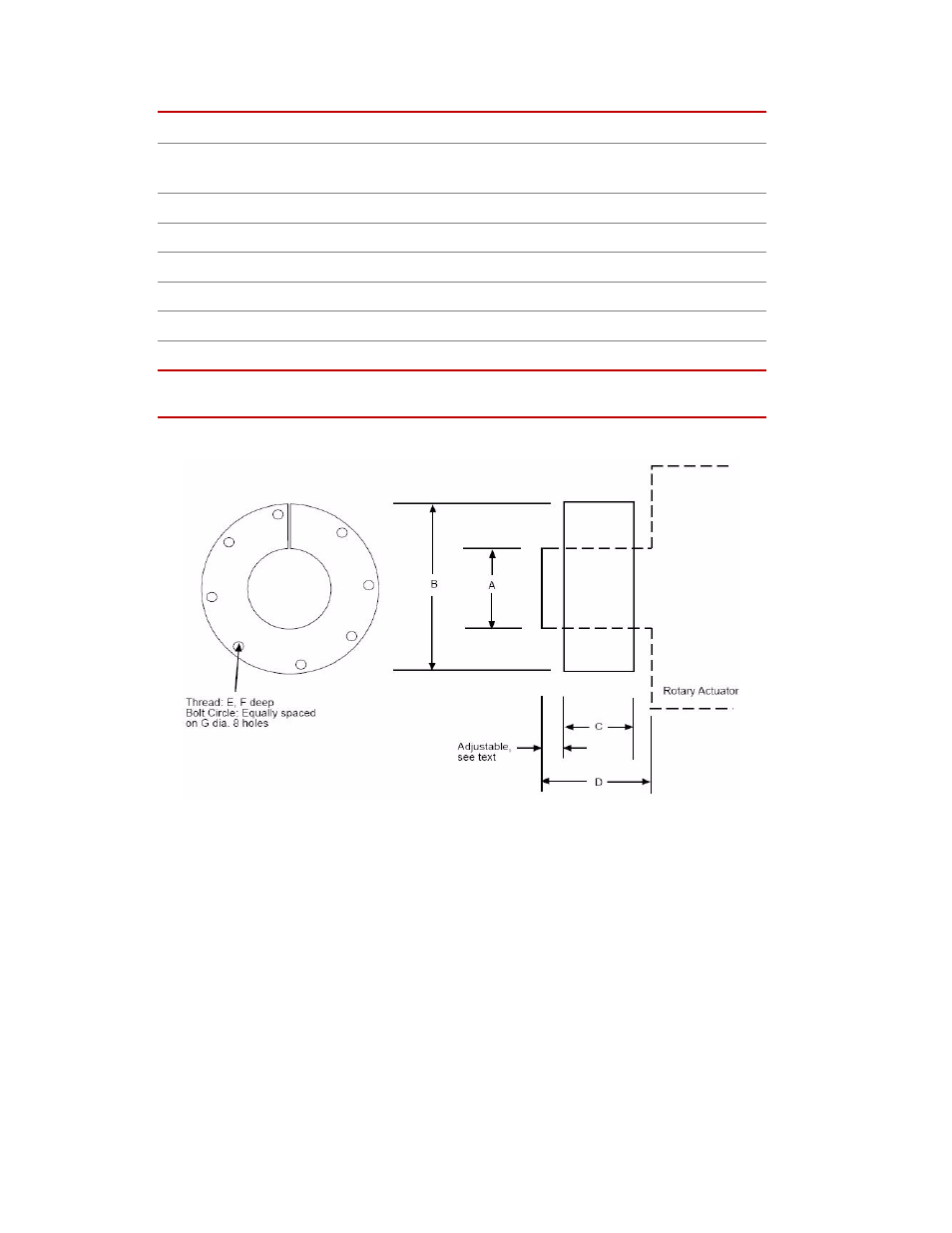

Flange Adapter Dimension Drawing
M ODEL E F G R OTATIONAL I NERTIA
T HREAD
S IZE
IN . MM IN . MM LBM · IN .
2 KG · M 2
215.32 5/16-18 0.63 16.0 3.25 82.5 14.4 0.00421
215.32 3/8-16 0.75 19.1 4.25 107.9 21.8 0.00639
215.41 3/8-16 0.75 19.1 4.25 107.9 21.8 0.00639
215.42 5/8-11 0.75 19.1 6.50 165.1 208 0.0608
215.45 5/8-11 1.25 31.8 6.50 165.1 273 0.0799
215.51 3/4-10 1.50 38.1 8.00 203.2 737 0.216
Dimensions are subject to change without notice. Contact MTS for verification of
dimensions critical to your needs.
