Actuator Specifications
Introduction

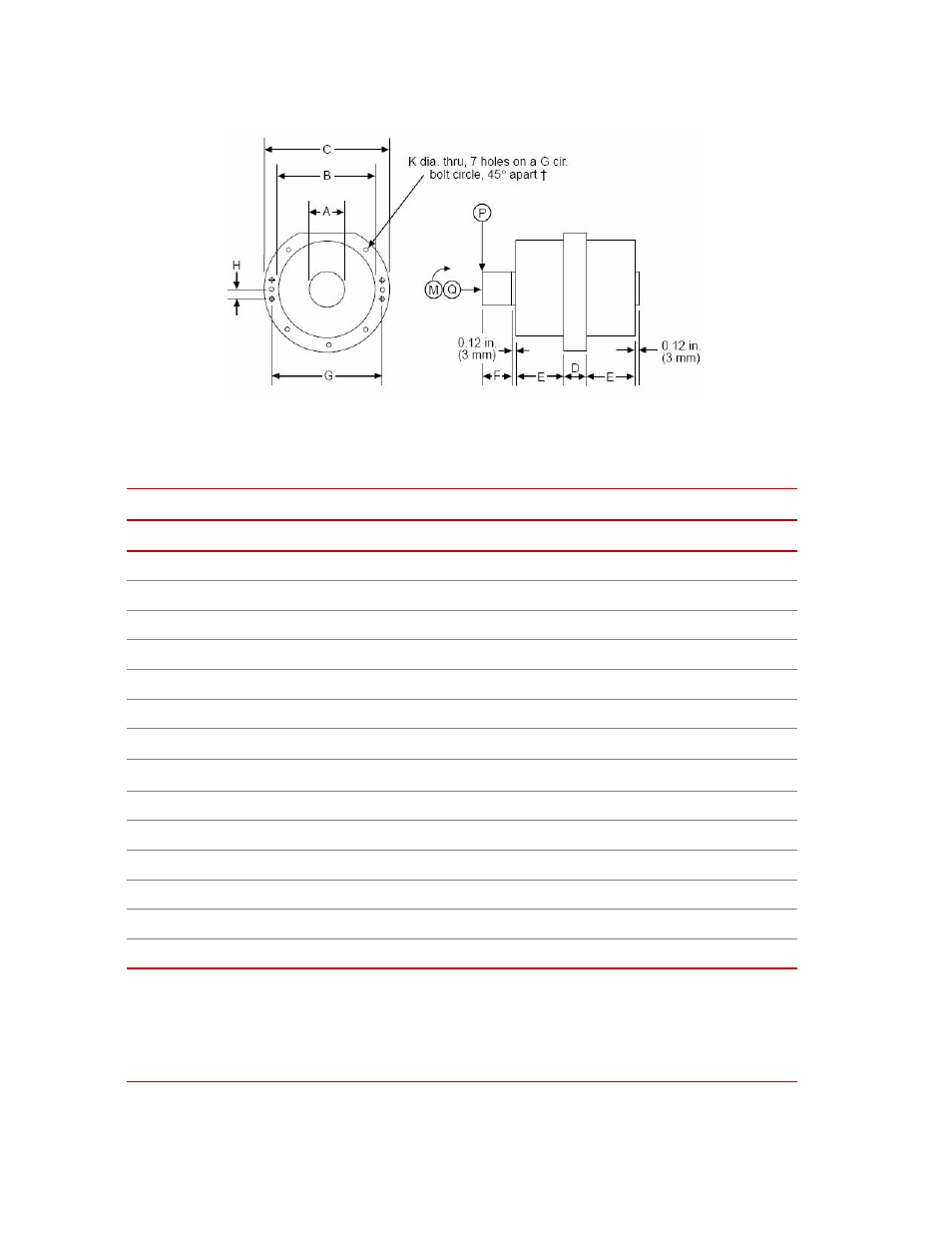

Actuator Dimensional Drawing
Actuator Dimensions and Weights
A
B
C
D
E
M
ODEL
IN
.
MM
IN
.
MM
IN
.
MM
IN
.
MM
IN
.
MM
215.32
1.50
38.1
7.875
200.0
10.00
254
1.175
29.8
3.130
79.5
215.35
2.251
57.1
7.875
200.0
10.00
254
2.275
57.8
3.130
79.5
215.41
2.251
57.1
7.875
200.0
10.00
254
2.275
57.8
3.130
79.5
215.42
2.251
57.1
7.875
200.0
10.00
254
3.275
83.2
3.130
79.5
215.45
3.751
95.3
9.875
250.8
12.25
311
2.775
74.5
4.137
105.1
215.51
3.751
95.3
9.875
250.8
12.25
311
5.553
141.0
4.137
105.1
F
G
H
K
W
EIGHT
M
ODEL
IN
.
MM
IN
.
MM
IN
.
MM
IN
.
MM
LB
KG
215.32
2.50
63.5
9.000
228.6
1.000
25.4
0.406
10.3
100
45
215.35
2.50
63.5
9.000
228.6
1.000
25.4
0.406
10.3
130
59
215.41
2.50
63.5
9.000
228.6
1.000
25.4
0.406
10.3
130
59
215.42
2.99
75.9
9.000
228.6
1.000
25.4
0.406
10.3
150
70
215.45
3.49*
88.6*
11.000 279.4
1.000
25.4
0.656
16.7
270
125
215.51
5.12*
130.0*
11.000 279.4
1.000†
25.4†
0.656
16.7
365
165
* Contains a 3.0 mm (0.12 in.) shoulder that is 0.25 mm (0.01 in.) larger in diameter than Dimension
'A'.
† 215.51 pattern has more bolt holes, not evenly spaced.
Dimensions and weights are subject to change without notice. Contact MTS for dimensions and weights crit-
ical to your needs.
