Reaction Bracket and Torque Cell Installation
Series 215 Rotary Actuator Product Manual Installation 33

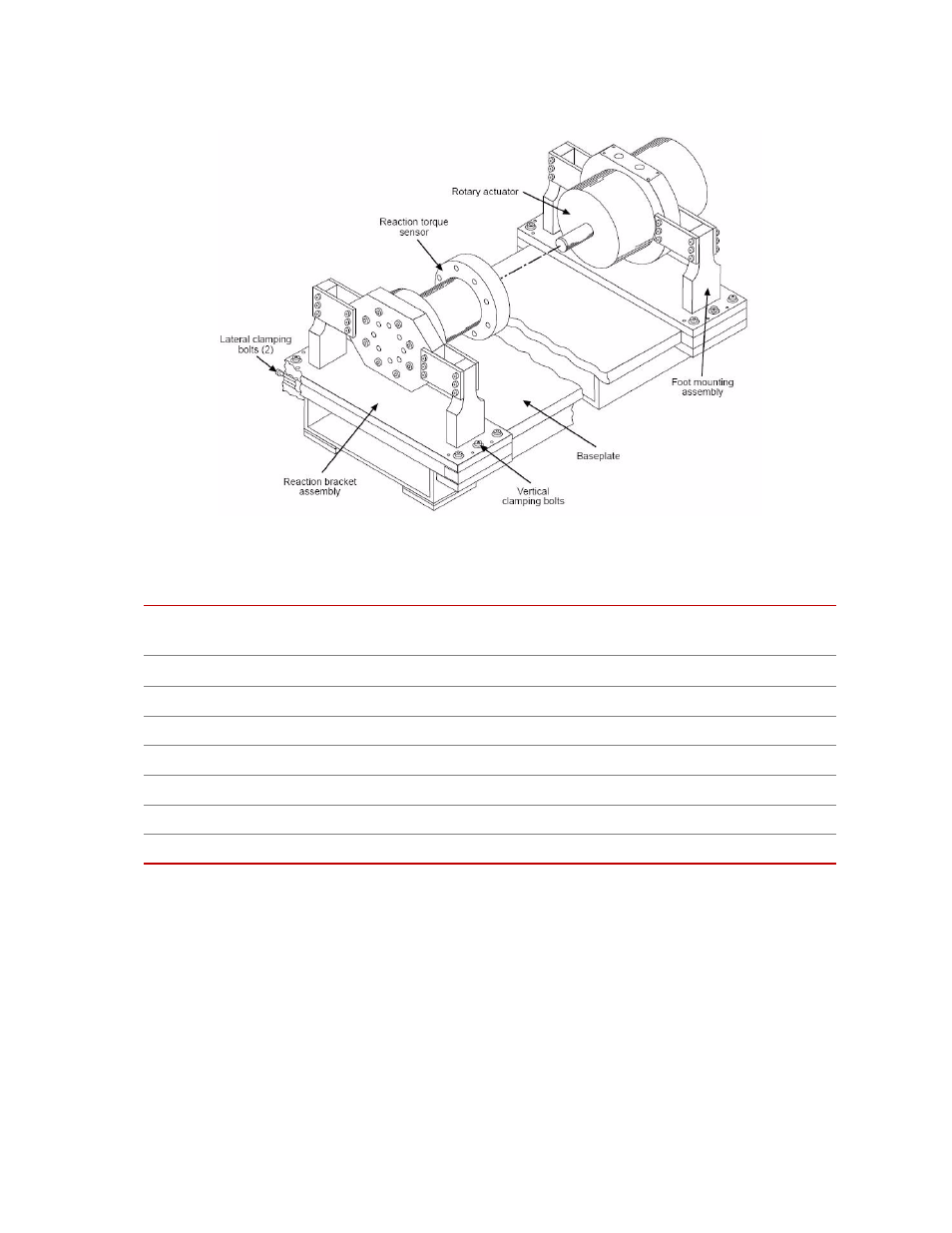

MTS Base Plate and Reaction Bracket
Reaction Bracket Ratings and Mounting Bolt Torque Value
M ODEL R EACTION B RACKET R ATING T ORQUE C ELL TO R EACTION
B RACKET T ORQUE V ALUE
R EACTION B RACKET TO B ASE OR T-
S LOT T ABLE T ORQUE V ALUE
LBF · FT . N· M LBF · FT . N· M LBF · FT . N· M
215.32 2000 0.226 18 24.0 150 204
215.35 5000 0.560 35 47.0 150 204
215.41 10,000 1.130 35 47.0 150 204
215.42 20,000 2.260 170 230.0 150 204
215.45 50,000 5.650 170 230.0 150 204
215.51 100,000 11.300 280 380.0 150 204
