Series 215 Rotary Actuator Product Manual
Installation
31
Installation
This section describes the procedures for installing the Series 215 Rotary
Actuator and optional equipment onto a base plate or T-slot table. It also includes
instructions for aligning the components of the rotary actuator test system after
they have been installed or moved.
Though the Series 215 Rotary Actuator can be installed onto any suitable base
plate or T-slot table that conforms to the specifications listed in the Diaphragm
Flexure Dimensions and Ratings table, these instructions assume that an MTS
supplied base plate or T-slot table will be used.

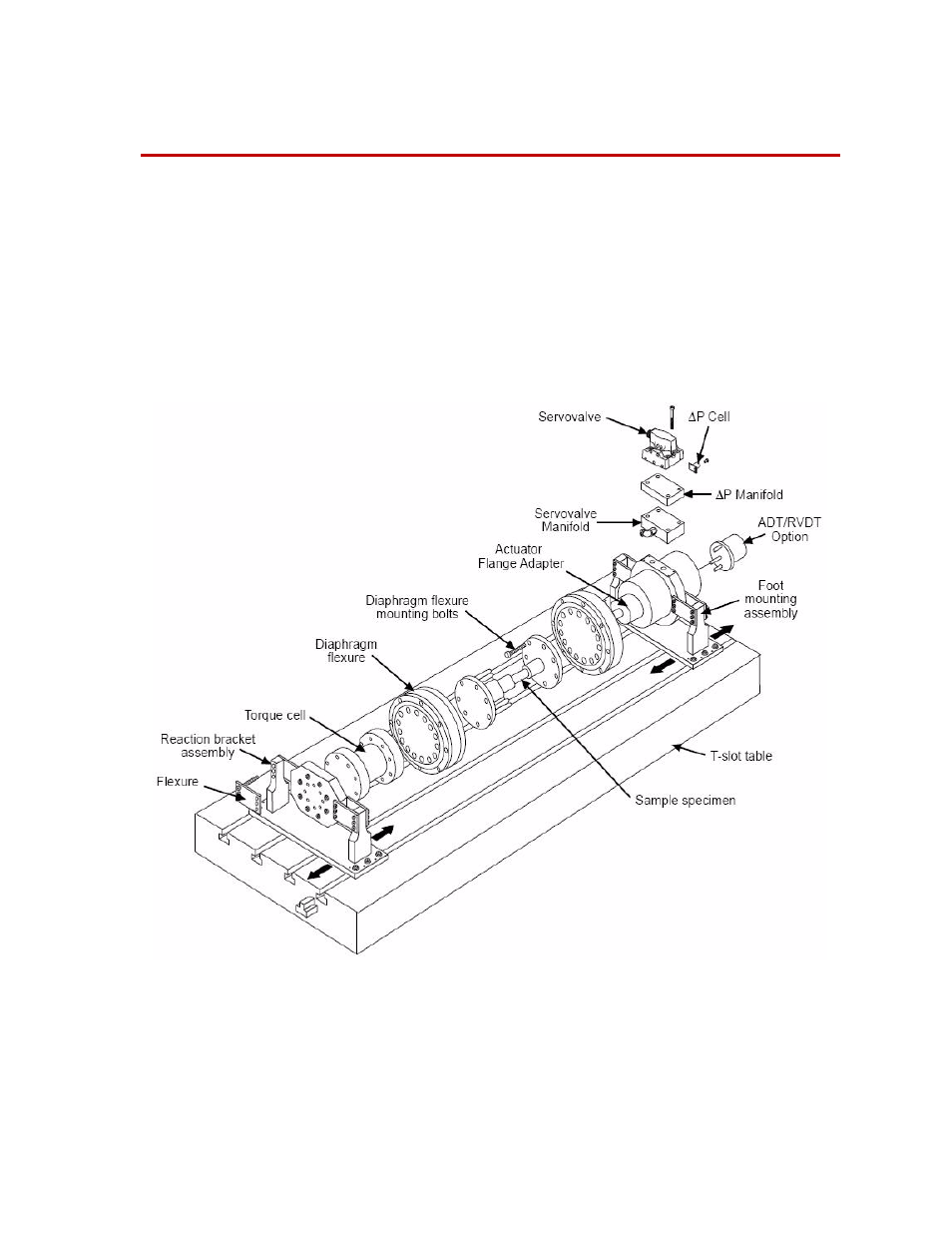

Typical Test System Configuration (Using T-slot Table)
