Flange Adapters
Series 215 Rotary Actuator Product Manual
Introduction
25

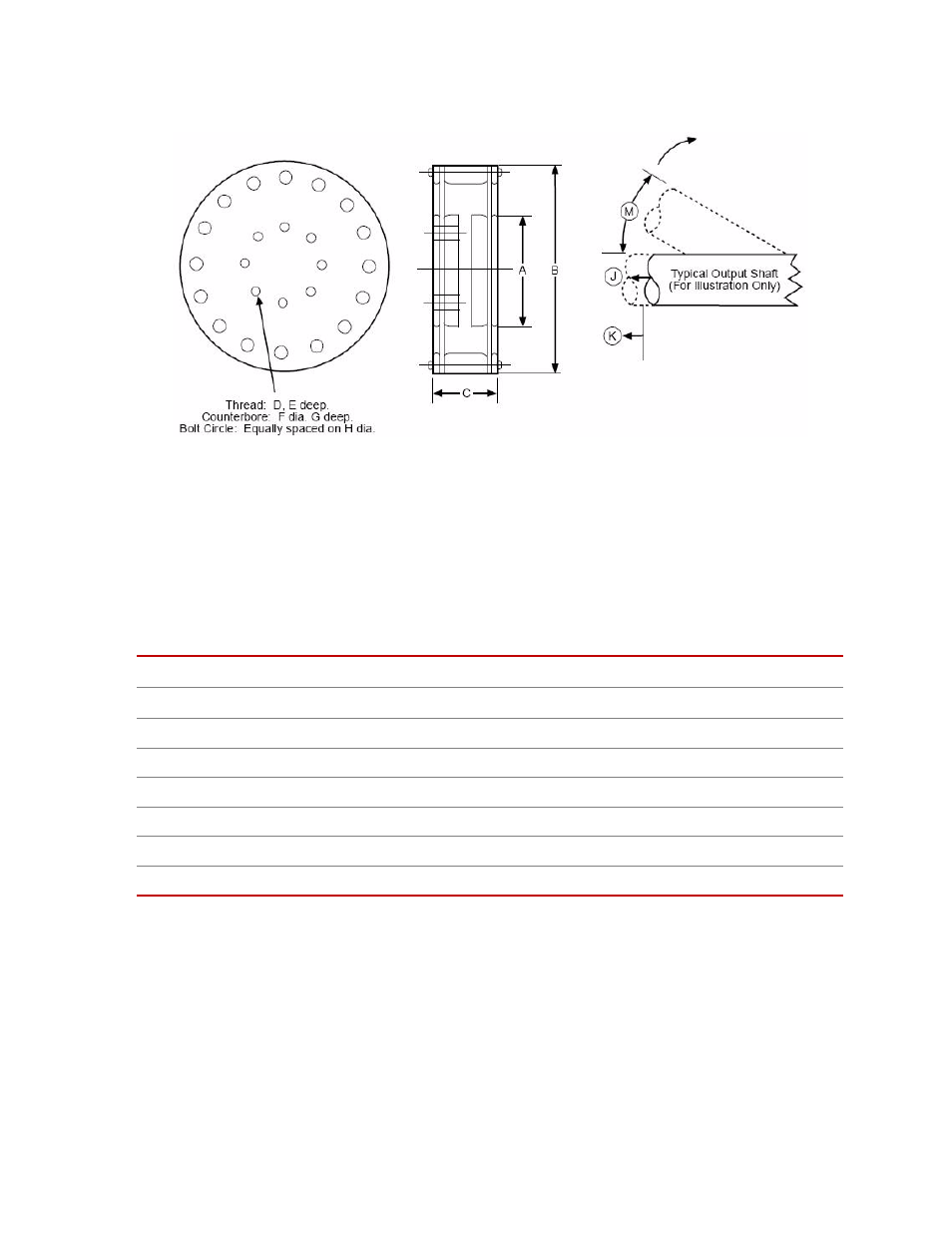

Diaphragm Flexure Specification Drawing
Flange Adapters
A flange adapter may be used to mount the specimen to the actuator. Adapter
mounting position is adjustable. The actuator shaft may extend beyond the
adapter, be flush with it, or be recessed into it. Diameter A may be used as a
shallow pilot.
Flange Adapter Dimensions and Inertia
M
ODEL
A
B
C
D
IN
.
MM
IN
.
MM
IN
.
MM
IN
.
MM
215.32
2.2511
57.2
4.00
102
2.25
57
2.99
75.9
215.32
2.2511
57.2
5.00
127
2.25
57
2.99
75.9
215.41
2.2511
57.2
5.00
127
2.00
51
2.99
75.9
215.42
2.2511
57.2
8.00
203
2.00
51
2.99
75.9
215.45
3.7400
95.0
8.00
203
3.25
83
3.68
93.5
215.51
3.7400
95.0
9.75
248
4.88
124
5.31
134.9
