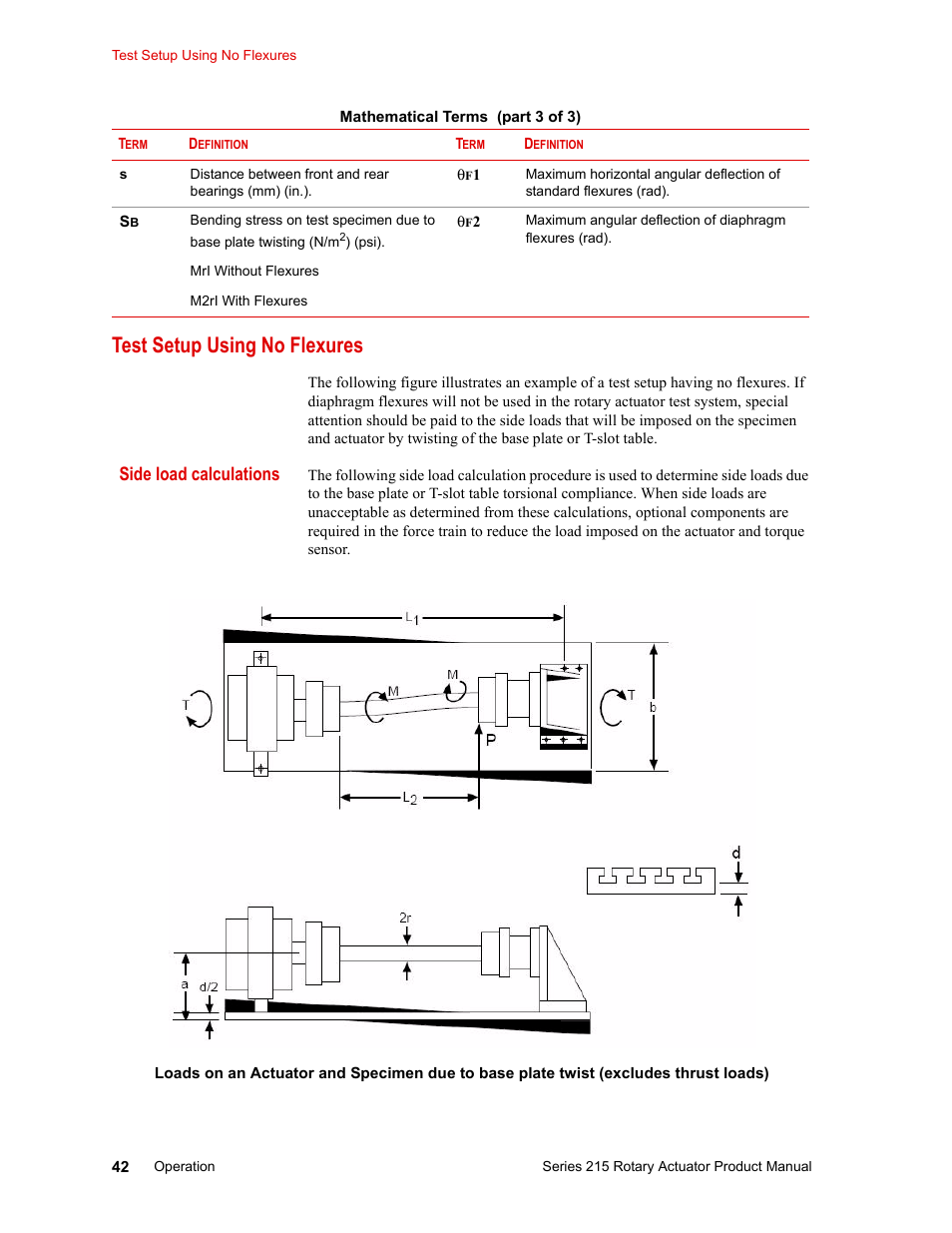

Test setup using no flexures, Side load calculations, Test setup using no flexures 42 – MTS Series 215 Rotary Actuator User Manual
Page 42
