»PCAN-View« for diagnostic purposes
15 Appendix
This chapter describes how to use the »PCAN-View« program for diagnostics of your
CANopen network.
»PCAN-View« is the basic version of the »PCAN-Explorer« program for Windows® of PEAK
System Technik GmbH. The program permits a simultaneous transmission and receipt of
CAN messages which can be sent manually and periodically. Errors on the bus system and
memory overflows of the controlled CAN hardware are displayed.
Finally important information on visualisation using »VisiWinNET®« is provided.
15.1 »PCAN-View« for diagnostic purposes

Monitor telegram traffic on the CANopen bus
1. First directly connect your Engineering PC via the USB system bus adapter
EMF2177IB to the CANopen bus.
2. Start the program »PCAN-View«.
3. Connect the »PCAN-View« with "Connect to CAN Hardware" according to the USB
system bus adapter and the baud rate.

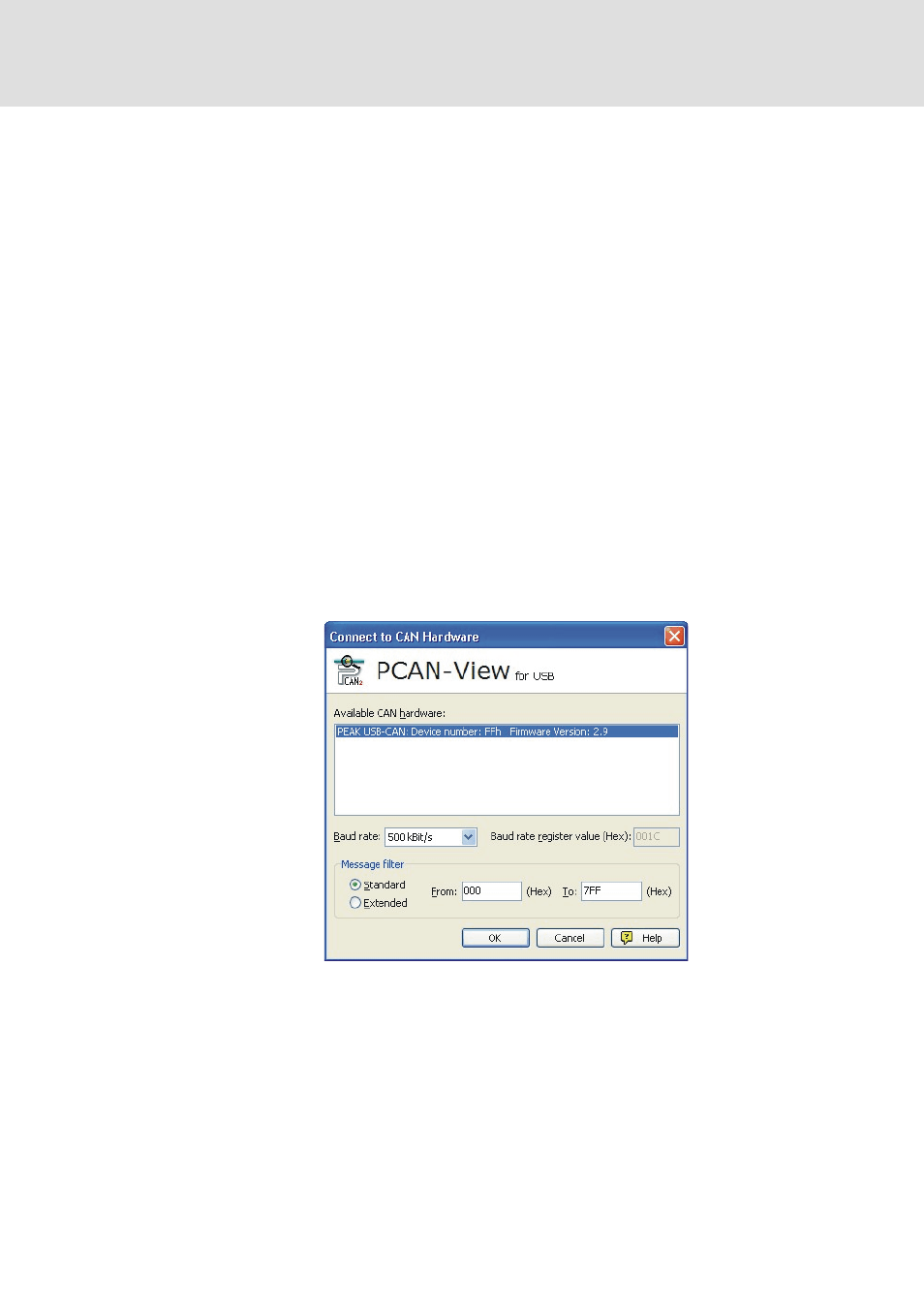

Example:
