Commissioning the CANopen Motion bus
Creating a PLC program
9.3 Creating a PLC program
The »PLC Designer« serves to illustrate the field device topology in the control
configuration.

Tip!
The »PLC Designer« serves to configure CANopen nodes and nodes on other
fieldbus systems.
CANopen with PROFIBUS
( 85)

How to create a PLC program in the »PLC Designer«:
1. Create a new »PLC Designer« project:
• Menu command: FileNew

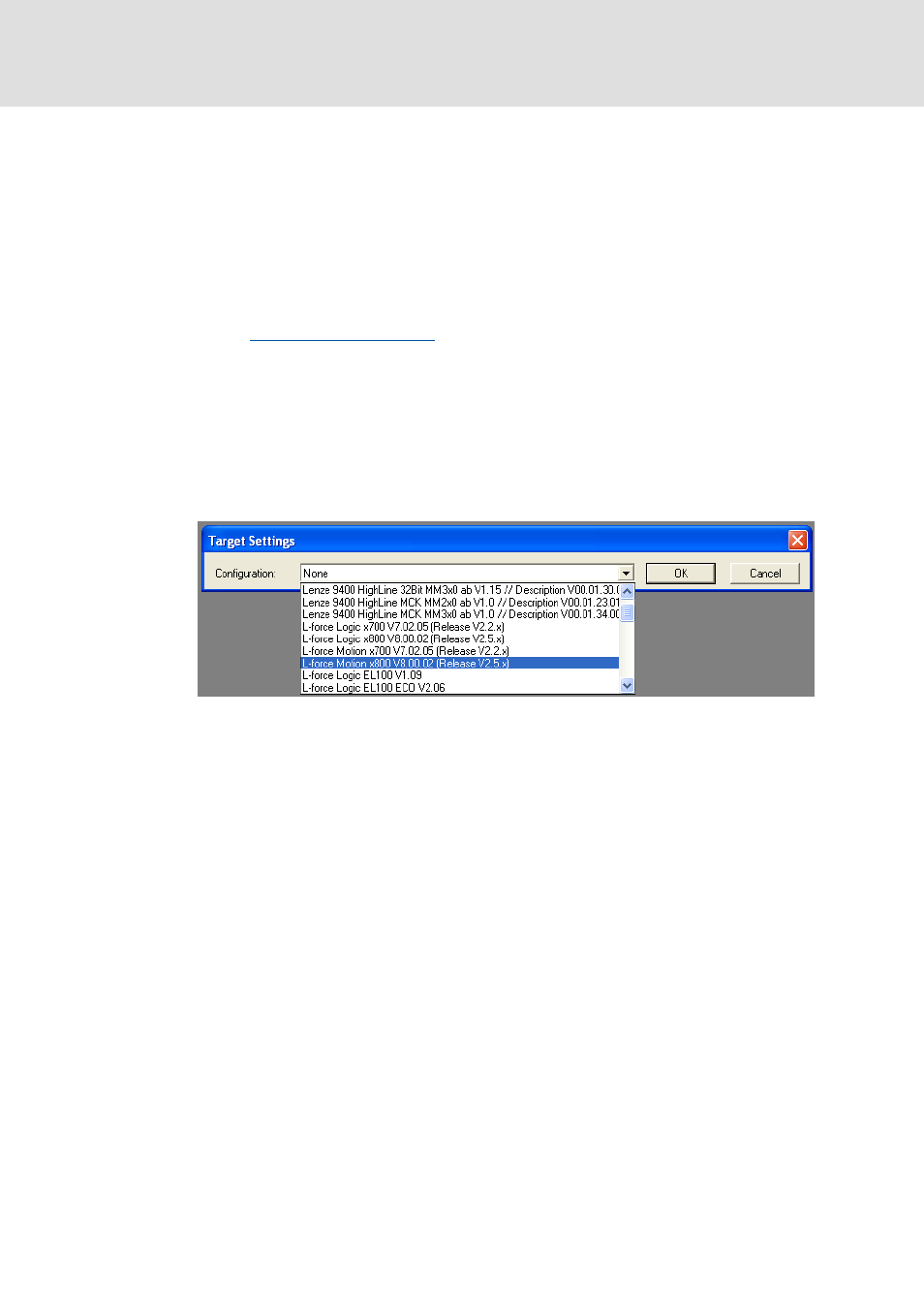

2. In the Target settings dialog box, select the L-force Motion x800 V8.xx.xx target
system:
The target systems of the release 2.2/2.3 (L-force Logic/Motion x700) can also be
used for device series EL x8xx, CS x8xx, and CPC x8xx.
3. Confirm the configuration of the target system setting by clicking the OK button.
