Commissioning the CANopen Logic bus
Creating a PLC program
54
L
DMS 4.2 EN 07/2011 TD17
8.4 Creating a PLC program
The »PLC Designer« serves to illustrate the field device topology in the control
configuration.

Tip!
The »PLC Designer« serves to configure CANopen nodes and nodes on other
fieldbus systems.
CANopen with PROFIBUS
( 85)

How to create a PLC program in the »PLC Designer«:
1. Create a new »PLC Designer« project:
• Menu command: FileNew

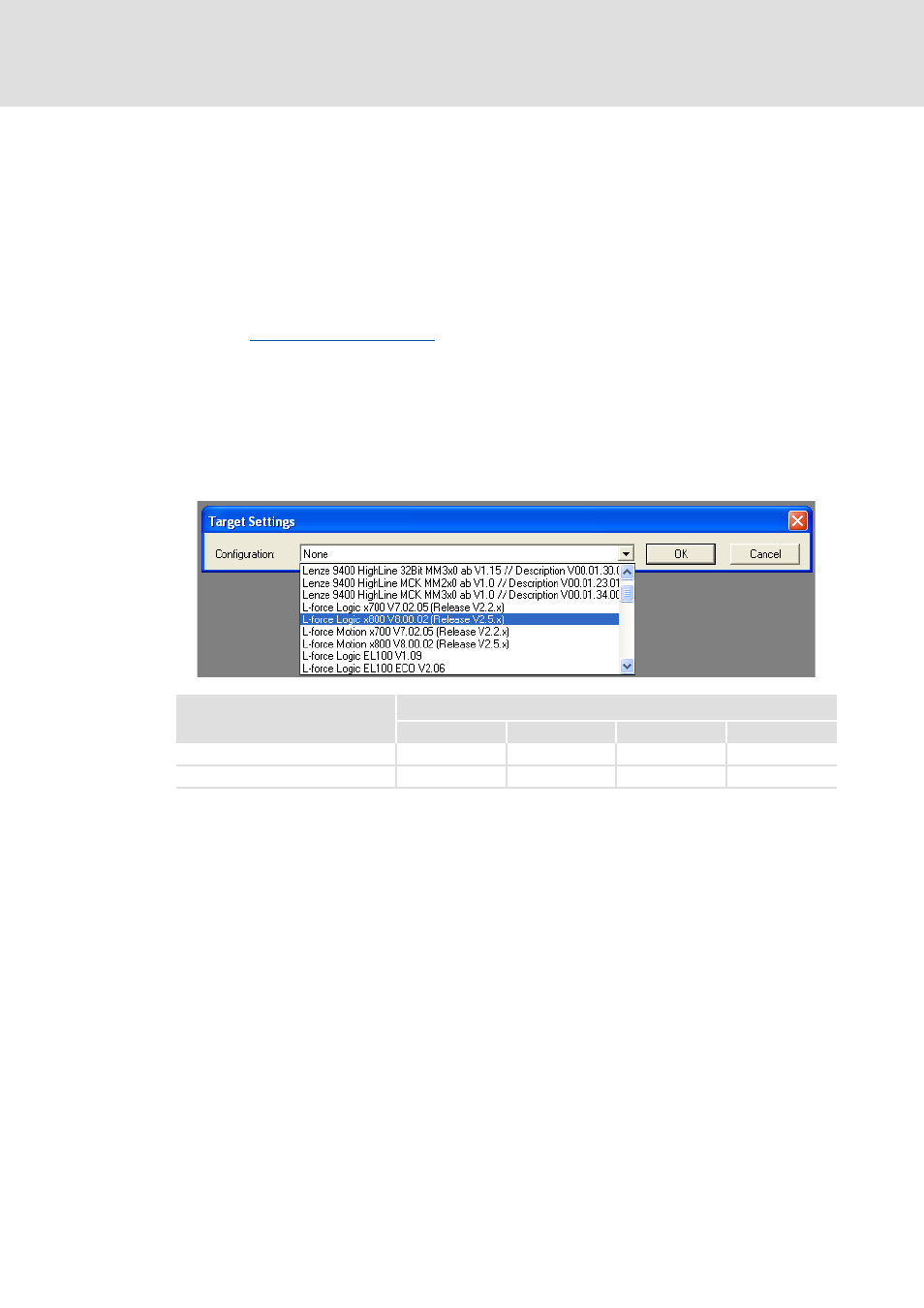

2. Select the suitable target system from the Target Settings dialog box:
The target systems of the release 2.2/2.3 (L-force Logic/Motion x700) can also be
used for device series EL x8xx, CS x8xx, and CPC x8xx.
3. Confirm the configuration of the target system setting by clicking the OK button.
Target system Application with Industrial PC
EL x8xx CS x8xx CPC x8xx EL 1xx PLC
L-force Logic x800 V8.xx.xx z z z -
L-force Logic EL1xx V1.xx - - - z
