Kinze Grain Carts Rev. 4/14 - Manual (Page 89)

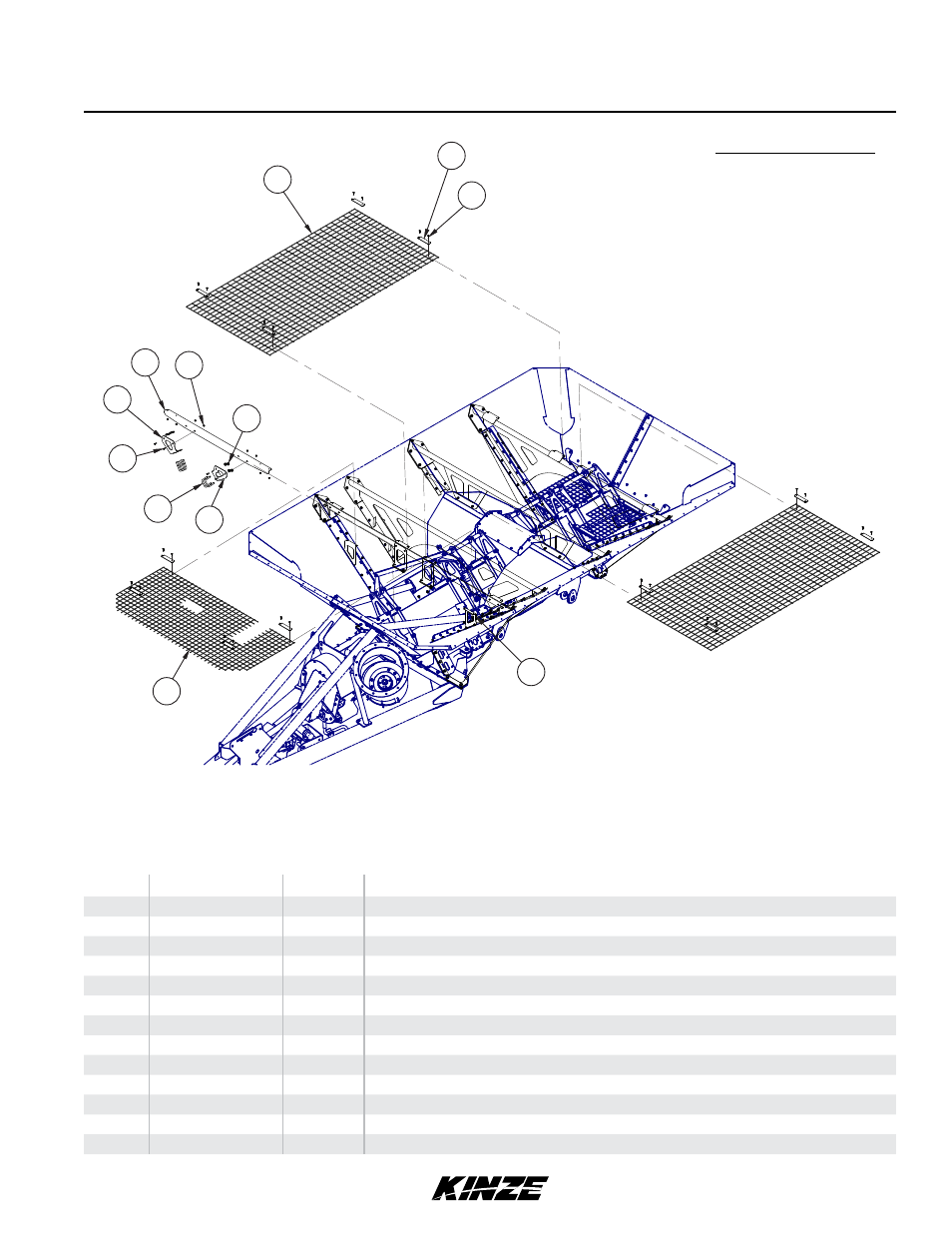

Safety Screens (900)
(IP1423-1)
ITEM PART NO. QTY. DESCRIPTION
1 GD24242 1 Front Screen Bracket Bar
2 GD24975 1 L.H. Front Screen Brace
3 GD24976 1 R.H. Front Screen Brace
4 GD24245 2 Rear Screen Brace
5 GD24390 1 Front Safety Screen
6 GD24905 2 Safety Screen
7 GD24063 12 Upper Screen Clamp Plate
8 G11091 4 Serrated Flange Nut, ⅜"-16
9 G11415 8 Serrated Flange Nut, ⅝"-11
10 G10171 24 Hex Head Cap Screw, 5⁄16"-18 x 1¼"
G10109 24 Lock Nut, 5⁄16"-18
11 G10001 4 Hex Head Cap Screw, ⅜"-16 x 1"
12 GD14671 4 U-Bolt, 3" x 3" x ⅝"-11
7
6
1 8
2
11
3
12
9
5
4
10
2012 Production Only
Refer to G1K556 for Safety
Screen Support Kit
Grain Cart M0238-02
Rev. 4/13 P86
