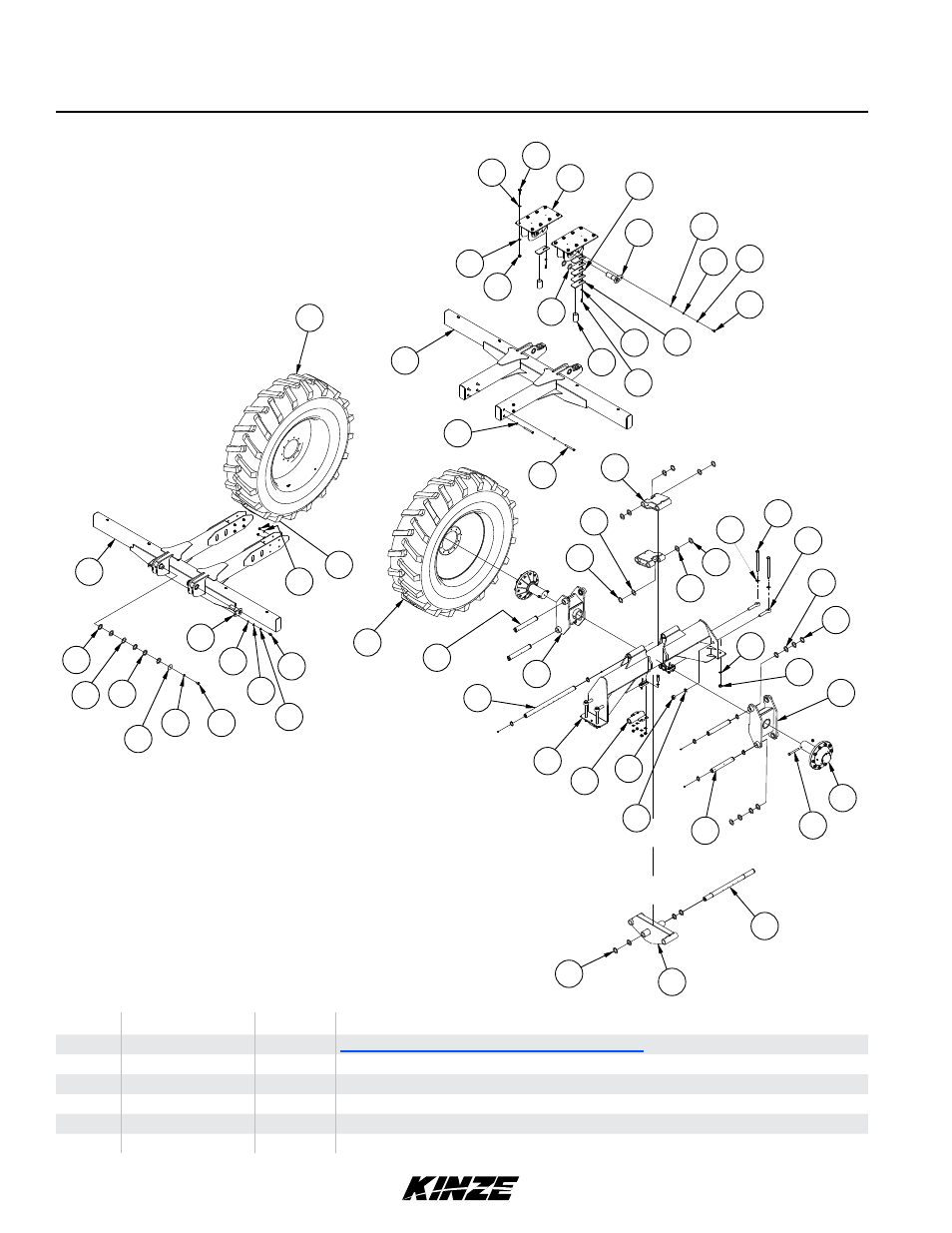

Row Crop Axle (1100/1300)
(IP1391)
1300 Model Shown
38
7
6
5
6
11
10 3
9
42
12 13
39
14 2
1
31
37
27
17
16 36
35
34 33
26
24
16
17
17
16
17
16
27
16
28
23
18
19
20
15
26
3
4
3
32
30
29
21
22
40
45
43
36
44
11
10
3
9
25
8
ITEM PART NO. QTY. DESCRIPTION
1 --- - See “Tire Assemblies (Row Crop)” on page P122
2 GA17305 1 Row Crop Rear Axle
3 G11391 20 Flat Washer, ⅝" SAE
4 G10068 8 Hex Head Cap Screw, ⅝"-11 x 6"
5 G10112 12/16 Lock Nut, ¾"-10
6 G11392 24/32 Flat Washer, ¾" SAE
