Kinze Grain Carts Rev. 4/14 - Manual (Page 129)

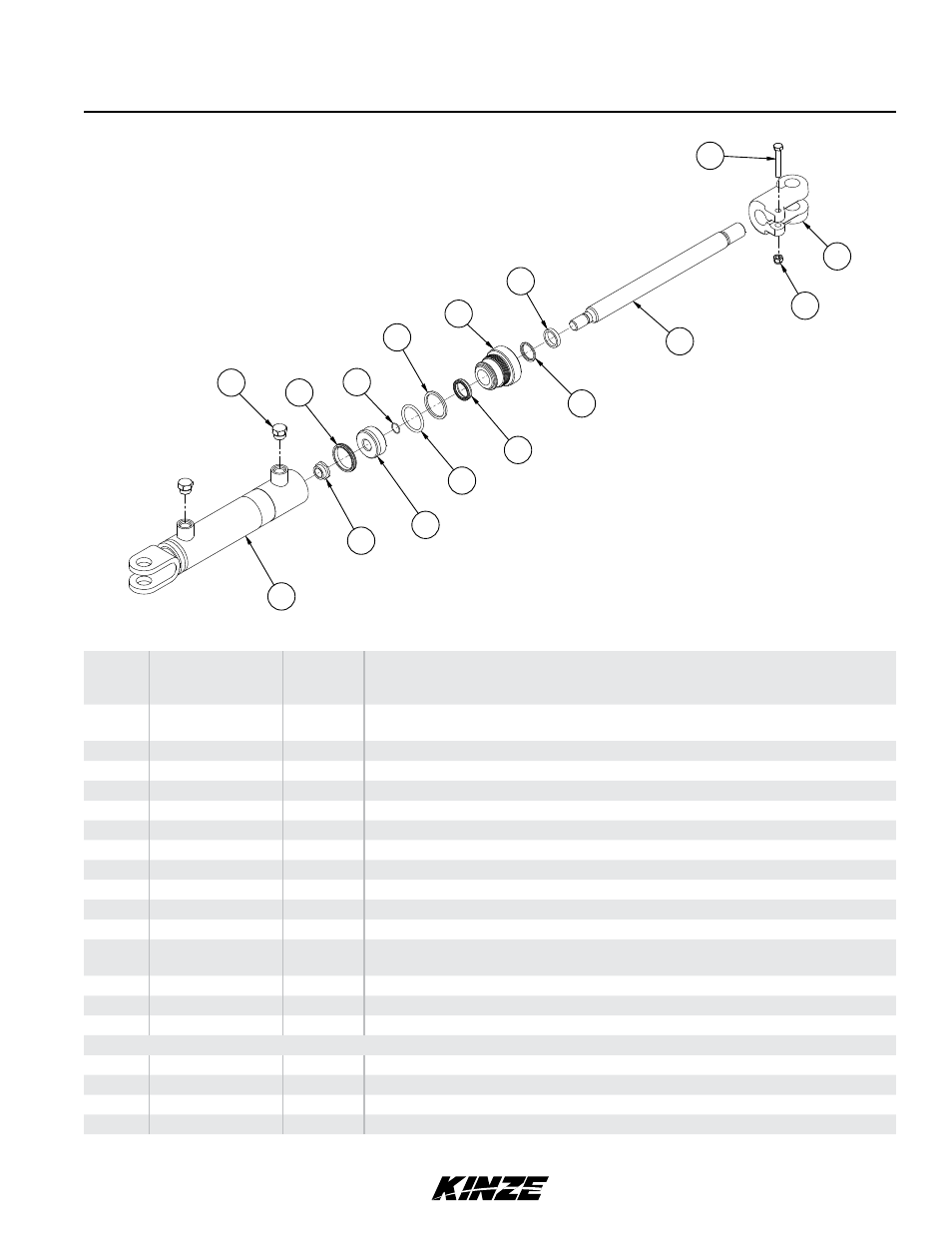

Hydraulic Flow Gate Cylinder
(IP1332)
ITEM PART NO. QTY. DESCRIPTION
1 GA17219
GA8775
GA17220 1
-
-
Barrel (Non-Stock Item) (900)
Barrel (Non-Stock Item) (1300/1500)
Barrel (Non-Stock Item) (1100)
2 G6408-08
GR1037 2
-
Plug W/O-Ring, ¾"-16 O-Ring
O-Ring
3 G10967 1 Lock Nut, ¾"-16
4 *D12277 1 T-Seal
5 GD4632 1 Piston
6 *D12239 1 O-Ring, No. 016
7 *D12235 1 O-Ring, No. 326
8 *D12236 1 Back-Up Ring
9 *D19250 1 U-Cup
10 GD5949 1 Gland
11 *D19251 1 Wiper
12 GD19662 1 Ring
13 GD25774
GD25065 1
-
Rod (900)
Rod (1100/1300/1500)
14 GD25138 1 Clevis
15 G10108 1 Lock Nut, ⅜"-16
16 G10939 1 Hex Head Cap Screw, ⅜"-16 x 2¼"
A GA17629 - Cylinder Complete, 2" x 8" (Part Number Stamped On Barrel) (900)
A GA17237 - Cylinder Complete, 2" x 8" (Part Number Stamped On Barrel) (1300/1500)
B GA17220 - Cylinder Complete, 2" x 9½" (Part Number Stamped On Barrel) (1100)
C GR1930 - Seal Kit
*Part of seal kit, item can not be purchased individually.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
16
15
Grain Cart M0238-02
Rev. 4/13 P126
TM
