Kinze Grain Carts Rev. 4/14 - Manual (Page 87)

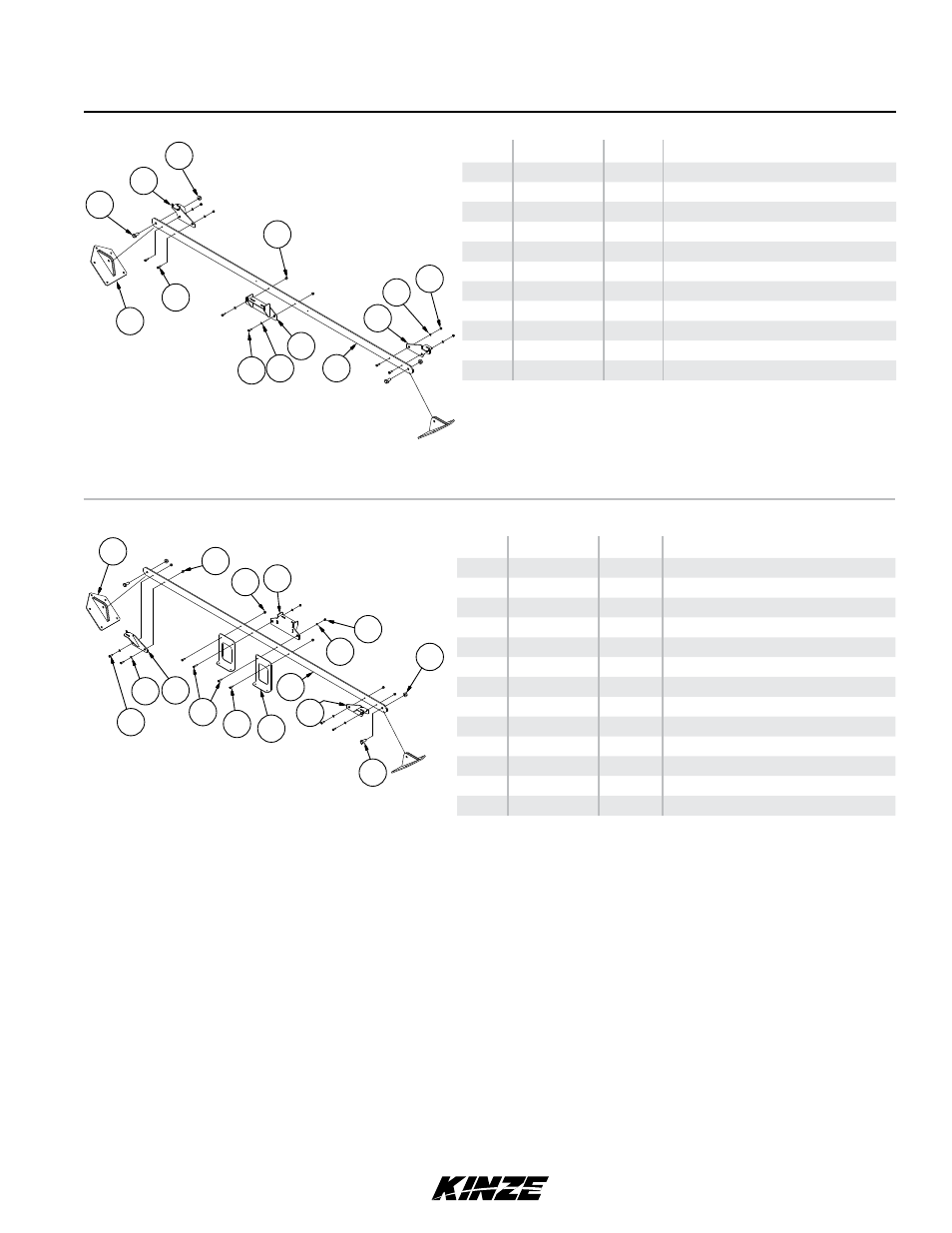

Cross Brace Assemblies (2013 Production)
ITEM PART NO. QTY. DESCRIPTION
1 GA14773 2 Cross Brace
2 GA18744 1 Screen Bracket
3 GA18748 1 Screen Bracket
4 GD23533 1 Brace Side Support
5 G10004 6 Hex Head Cap Screw, ⅜"-16 x 1¼"
6 G10108 4 Lock Nut, ⅜"-16
7 G11042 2 Hex Head Cap Screw, ¾"-10 x 1¾"
8 G11314 2 Serrated Flange Nut, ¾"-10
9 G11387 6 Flat Washer, ⅜" SAE
10 GA18805 1 Screen Bracket
11 G11091 2 Serrated Flange Nut, ⅜"-16
ITEM PART NO. QTY. DESCRIPTION
1 GA14773 2 Cross Brace
2 GA18744 1 Screen Bracket
3 GA18748 1 Screen Bracket
4 GD23533 1 Brace Side Support
5 GD24246 2 Brace Side Support
6 G10003 2 Hex Head Cap Screw, ⅜"-16 x 1½"
7 G10004 6 Hex Head Cap Screw, ⅜"-16 x 1¼"
8 G11042 2 Hex Head Cap Screw, ¾"-10 x 1¾"
9 G11314 2 Serrated Flange Nut, ¾"-10
10 GA18805 1 Screen Bracket
11 G11091 6 Serrated Flange Nut, ⅜"-16
12 G11387 6 Flat Washer, ⅜" SAE
13 G10108 2 Lock Nut, ⅜"-16 Front
Rear
4
10
5
1
3
2
8
7
6
9
11
5 9
4
10
3
2
8
9
11
5
1
13
11
12
7
6
12
7
Grain Cart M0238-02
