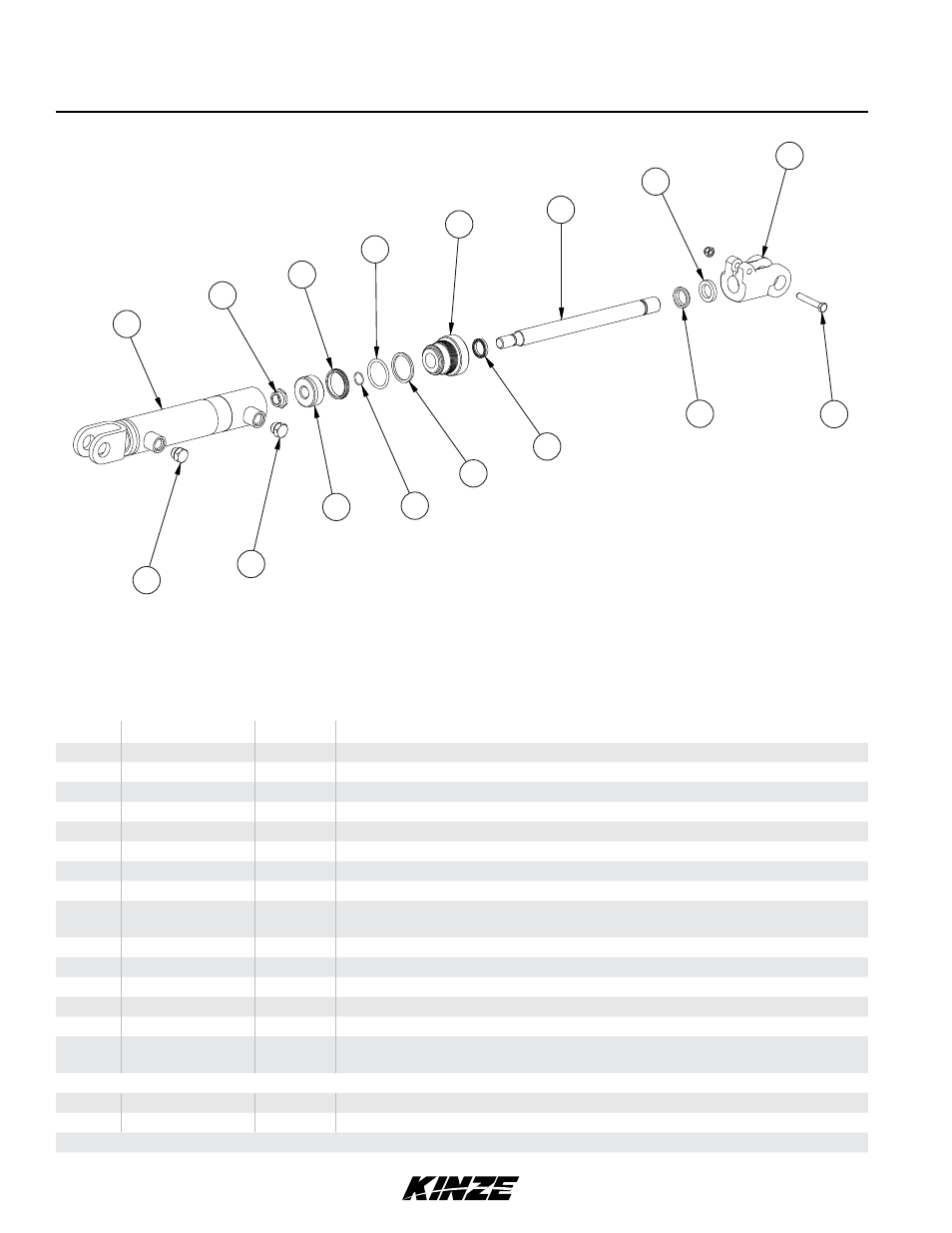

Auger Discharge Hood Cylinder
ITEM PART NO. QTY. DESCRIPTION
1 A8775 1 Barrel (Non-Stock Item)
2 GD27233 1 Nylon Lock Nut, ¾"-16, Grade 8
3 *D12277 1 T-Seal
4 *D12235 1 O-Ring, No. 326
5 GD12510 1 Gland
6 GD14233 1 Rod
7 GD12101 1 Ring
8 GD11950 1 Clevis
9 G10939
G10108 1
1 Hex Head Cap Screw, ⅜"-16 x 2¼"
Lock Nut, ⅜"-16
10 *D12233 1 Wiper Rod
11 *D12256 1 U-Cup
12 *D12236 1 Back-Up Ring
13 *D12237 1 O-Ring, No. 018
14 GD12511 1 Piston
15 G6408-08
GR1037 2
-
Plug W/O-Ring, ¾"-16 O-Ring
O-Ring
A GA11967 - Cylinder Complete, 2" x 8" (Part Number Stamped On Barrel)
B GR1529 - Seal Kit, Includes: (1) T-Seal, (2) O-Rings, (1) BU Ring, (2) U-Cups,
*Part of seal kit, item can not be purchased individually.
(IP1307)
1
2
14
3
13
4
12
5
11
6
10
7
9
8
15
15
TM
M0238-02 Grain Cart
P127 Rev. 4/14
