Spout manifold block assembly, P136 – Kinze Grain Carts Rev. 4/14 User Manual
Page 139

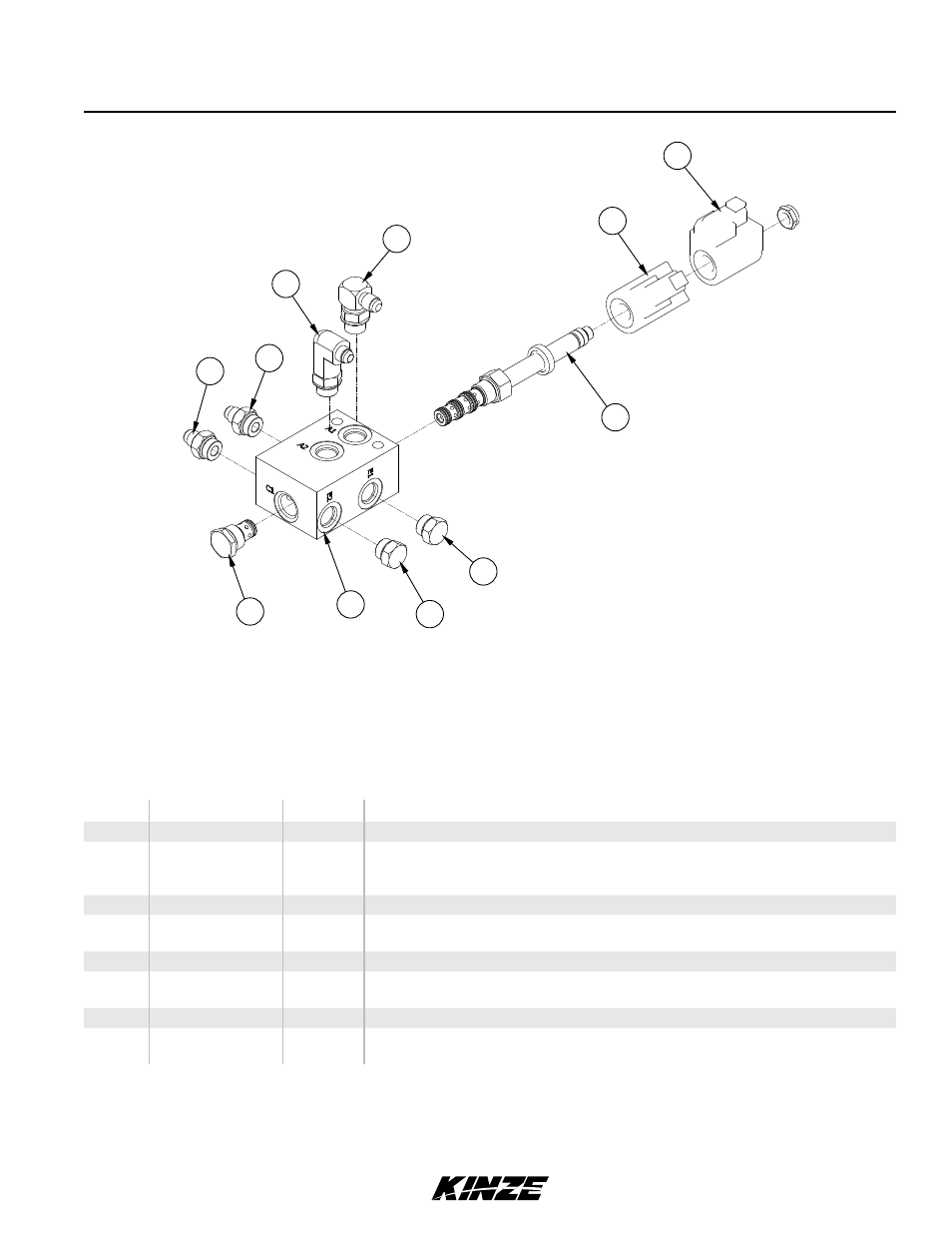

Spout Manifold Block Assembly
(IP1382)
3
3
2
4
5
7
8
8
1
6
6
ITEM
PART NO.
QTY.
DESCRIPTION
1
GD24104
1
Block
2
GA11365
GR1750
GR1756
1
-
-
Spool Valve Assembly
Hex Nut
Seal Kit
3
GA16676
2
Coil
4
G6801-06-08
GR1037
1
Connector W/O-Ring, 9⁄16"-18 Male JIC To ¾"-16 O-Ring
O-Ring
5
G6801-L-06-08
1
Long Elbow W/O-Ring, 90°, 9⁄16"-18 x ¾"-16
6
G6400-06-08
GR1037
2
Connector W/O-Ring, 9⁄16"-18 Male JIC To ¾"-16 O-Ring
O-Ring
7
GA4293
1
Check Valve
8
G6408-08
GR1037
2
-
Plug W/O-Ring, ¾"-16 O-Ring
O-Ring
