Kinze Grain Carts Rev. 4/14 - Manual (Page 134)

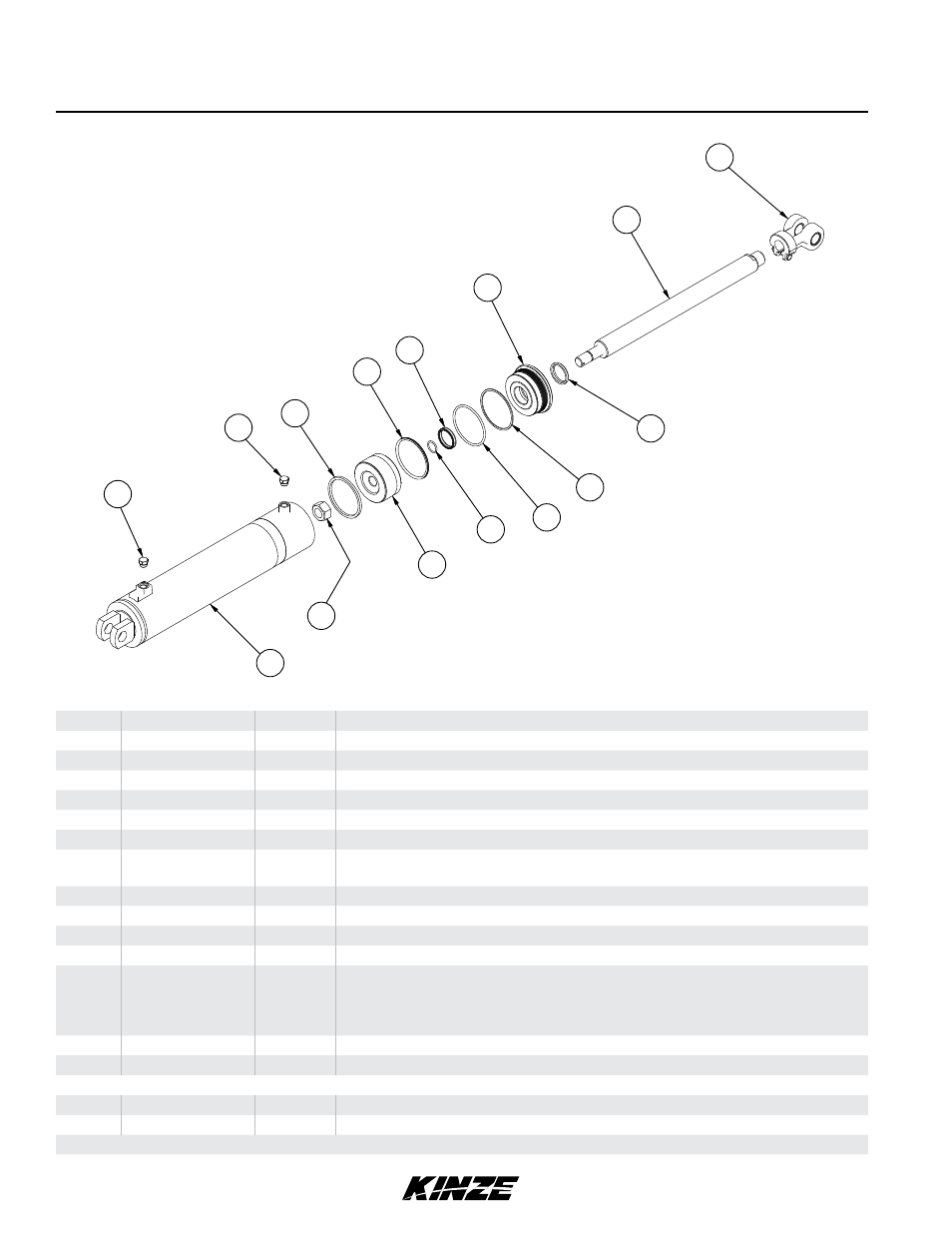

Vertical Auger Cylinder
(IP1334)
ITEM PART NO. QTY. DESCRIPTION
1 A9610 1 Barrell (Non-Stock Item)
2 GD12572 1 Gland
3 *D12092 1 Piston Ring
4 *D12246 1 O-Ring, No. 348
5 *D12247 1 Back-Up Ring
6 *D12255 1 U-Cup
7 *D12240 1 Wiper, 2"
8 G6408-08
GR1037 2
-
Plug W/O-Ring, ¾"-16 O-Ring
O-Ring
9 GD13500 1 Rod
10 GD13498 1 Piston
11 GD27236 1 Nylon Lock Nut, 1⅛"-12, Grade 8
12 --- - ---
13 GA8130
GR1401
G10939
G10101 1
-
-
-
Clevis W/Bushings, Hex Head Cap Screw And Hex Nut
Bushing
Hex Head Cap Screw, ⅜"-16 x 2¼"
Hex Nut, ⅜"-16
14 *D12267 1 O-Ring, No. 342
15 *D12283 1 T-Seal, 4¾"
A GA9611 1 Cylinder Complete, 4¾" x 20" (Part Number Stamped On Barrel)
B GR1600 1 Seal Kit, Includes: (1) Wiper, (1) U-Cup, (2) O-Rings, (1) BU Ring, (1) T-Seal, (1) Piston Ring
*Item is part of seal kit, item can not be purchased individually.
13
9
7
2
5
4
6
15
14
10
3
1
8
8
11
TM
M0238-02 Grain Cart
P131 Rev. 4/14
