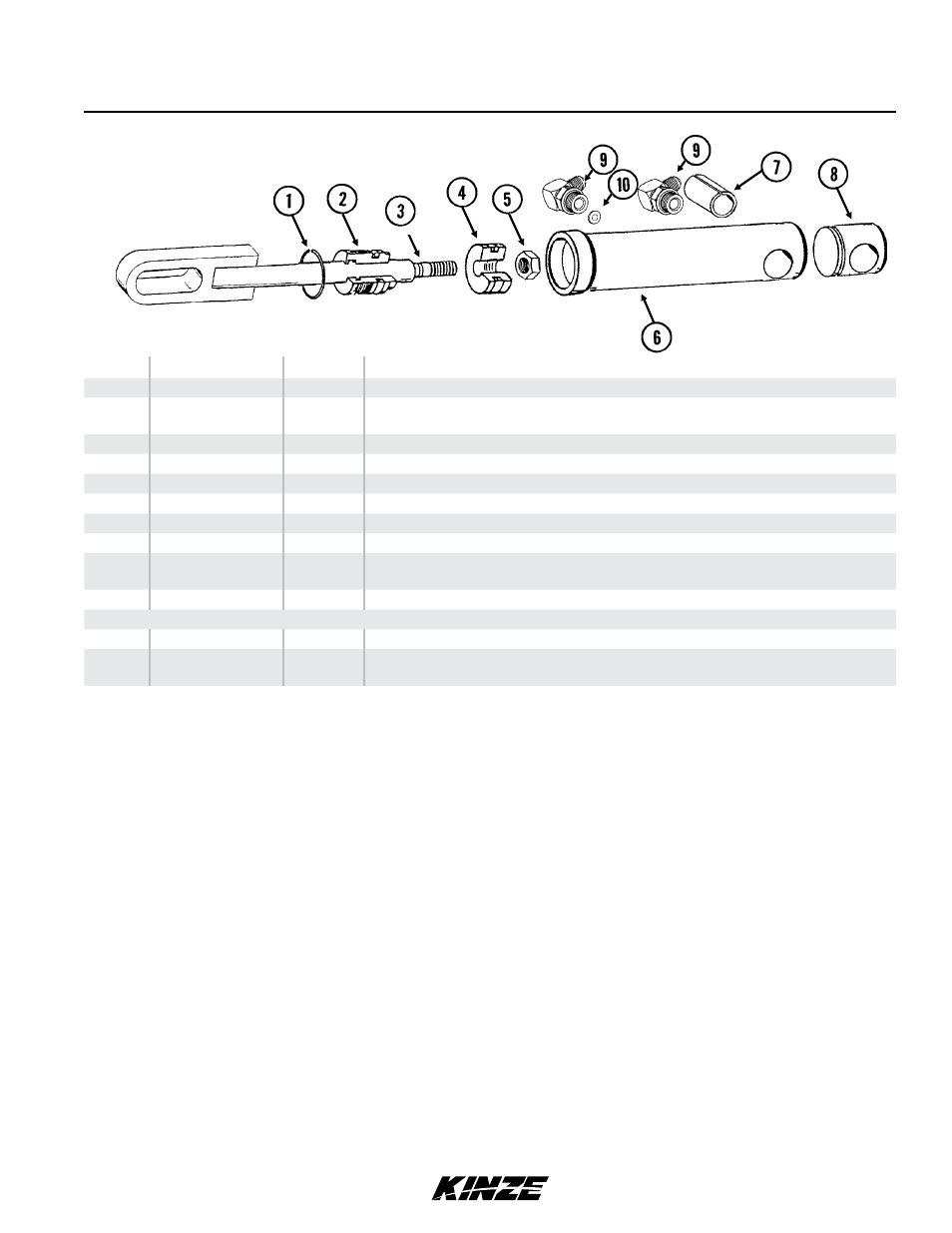

Horizontal Auger Drive (Idler) Cylinder
ITEM PART NO. QTY. DESCRIPTION
1 G10770 1 Internal Retaining Ring, 11116"
2 GA13651 1 Head Gland Assembly (Includes Back-Up Ring, O-Ring, U-Cup, Wiper, Bushing, and
Head Gland)
3 GA9561 1 Rod Assembly
4 GD13172 1 Piston
5 GD27232 1 Nylon Lock Nut, ½"-20, Grade 8
6 D13169 1 Barrel (Non-Stock Item)
7 GD13400 1 Tension Bushing, 1" x 2" Long
8 GD13173 1 End Cap
9 G6801-06-08
GR1037 2
-
Elbow W/O-Ring, 90°, 916"-18 Male JIC To ¾"-16 O-Ring
O-Ring
10 GD13541 1 Orifice Plate, One-Way Restriction
A GA9616 - Cylinder Complete, 1½" x 2½" (Part Number Stamped On Barrel)
B GR1598 - Seal Kit, Includes: (3) O-Rings, (2) BU Rings, (1) Wiper, (1) T-Seal, (1) Bronze
Bushing, (1) Seal, (1) U-Cup
(CYL2h)
