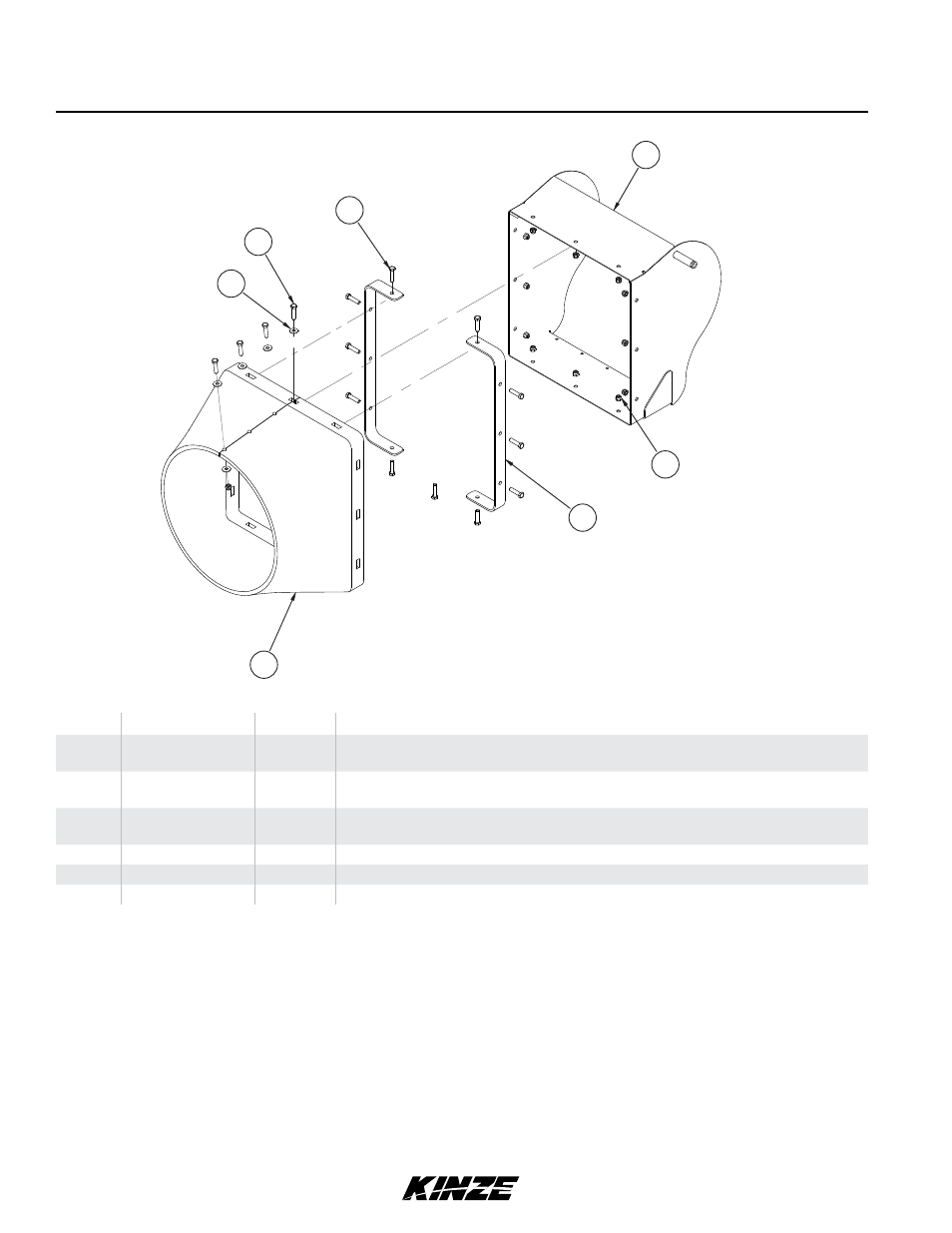

Upper Vertical Auger Discharge Hood
(IP1390)
ITEM PART NO. QTY. DESCRIPTION
1 GA15847
GA16002 1
-
Adjustable Discharge Hood (900)
Adjustable Discharge Hood (1100/1300/1500)
2 GD22866
GD23140 1
-
Rubber Belting (900)
Rubber Belting (1100/1300/1500)
3 GD22865
GD23141 2
-
Side Mount Plate (900)
Side Mount Plate (1100/1300/1500)
4 G10016 15 Hex Head Cap Screw, ½"-13 x 2"
5 G10111 15 Lock Nut, ½"-13
6 G10216 8 Washer, ½" USS
1
2
3
4
4
6
5
