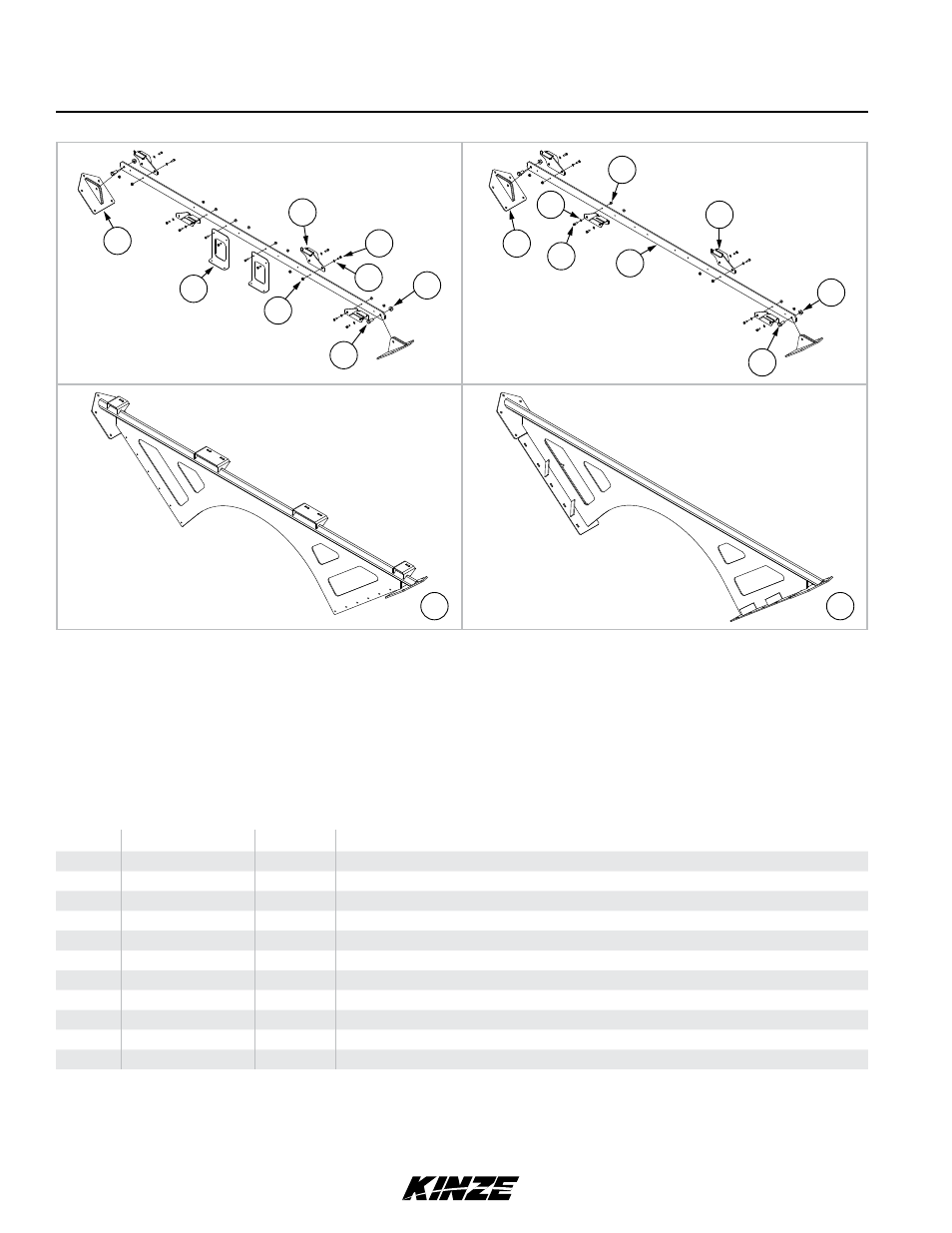

Cross Brace Assemblies (2014 Production and on)
2
1
3
8
6
7
9
5
1300 Track Only
3
2
5
7
1
8
6
9
ITEM
PART NO.
QTY.
DESCRIPTION
1
GA14773
-
Cross Brace
2
GA19747
-
Screen Bracket
3
GD24246
-
Screen Mount Bracket
4
GD28198
-
Side Support Brace
5
G10004
-
Hex Head Cap Screw, ⅜"-16 x 1¼"
6
G11042
-
Hex Head Cap Screw, ¾"-10 x 1¾"
7
G11091
-
Serrated Flange Nut, ⅜"-16
8
G11314
-
Serrated Flange Nut, ¾"-10
9
G11387
-
Flat Washer, ⅜" SAE
10
GA19742
-
Tub Brace
11
GA16727
-
Tub Brace, 1300
10
11
TM
M0238-02
Grain Cart
P85
Rev. 4/14
