65

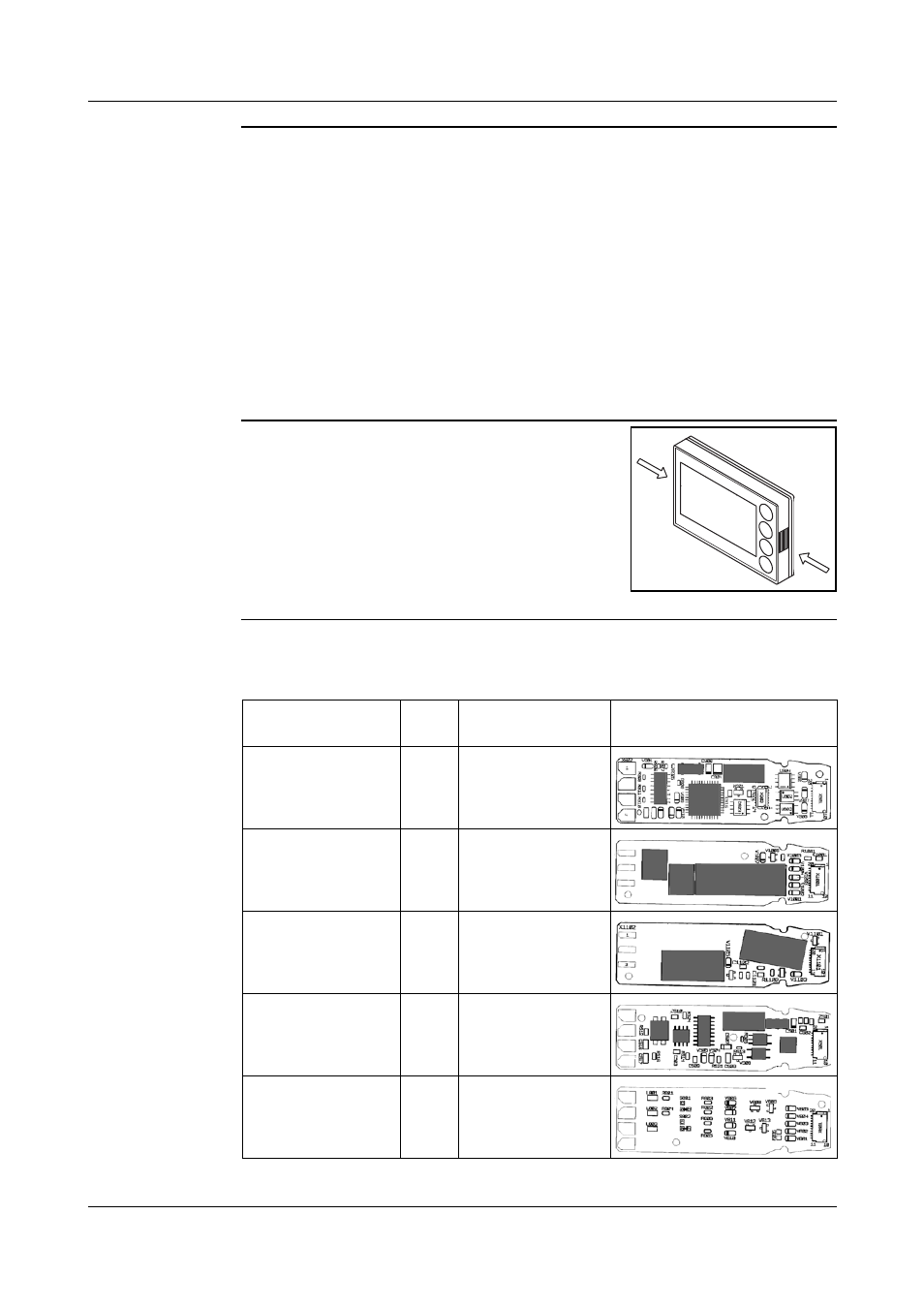

9 Retrofitting of modules
Safety notes
Removing the
controller
module
h Press together the knurled
surfaces on the front panel (left
and right), and pull out the
controller module.
Identifying the
module
h Identify the module by the sales number pasted on
the packaging
A
Only qualified personnel are permitted to carry
out module retrofits.
E Risk of damage to the modules by electrostatic
discharge. For this reason, avoid electrostatic
charge during fitting and removal. Carry out
retrofitting on a grounded workbench.
Modules Code Sales
No.
View of boards
Analog input 2 1 70/00442785
1 relay
(changeover) 2 70/00442786
2 relays
(make, N/O) 3 70/00442787
1 analog output 4 70/00442788
2 binary inputs 5 70/00442789
