43
7 Configuration
Limit value AL
relative to
setpoint
value w

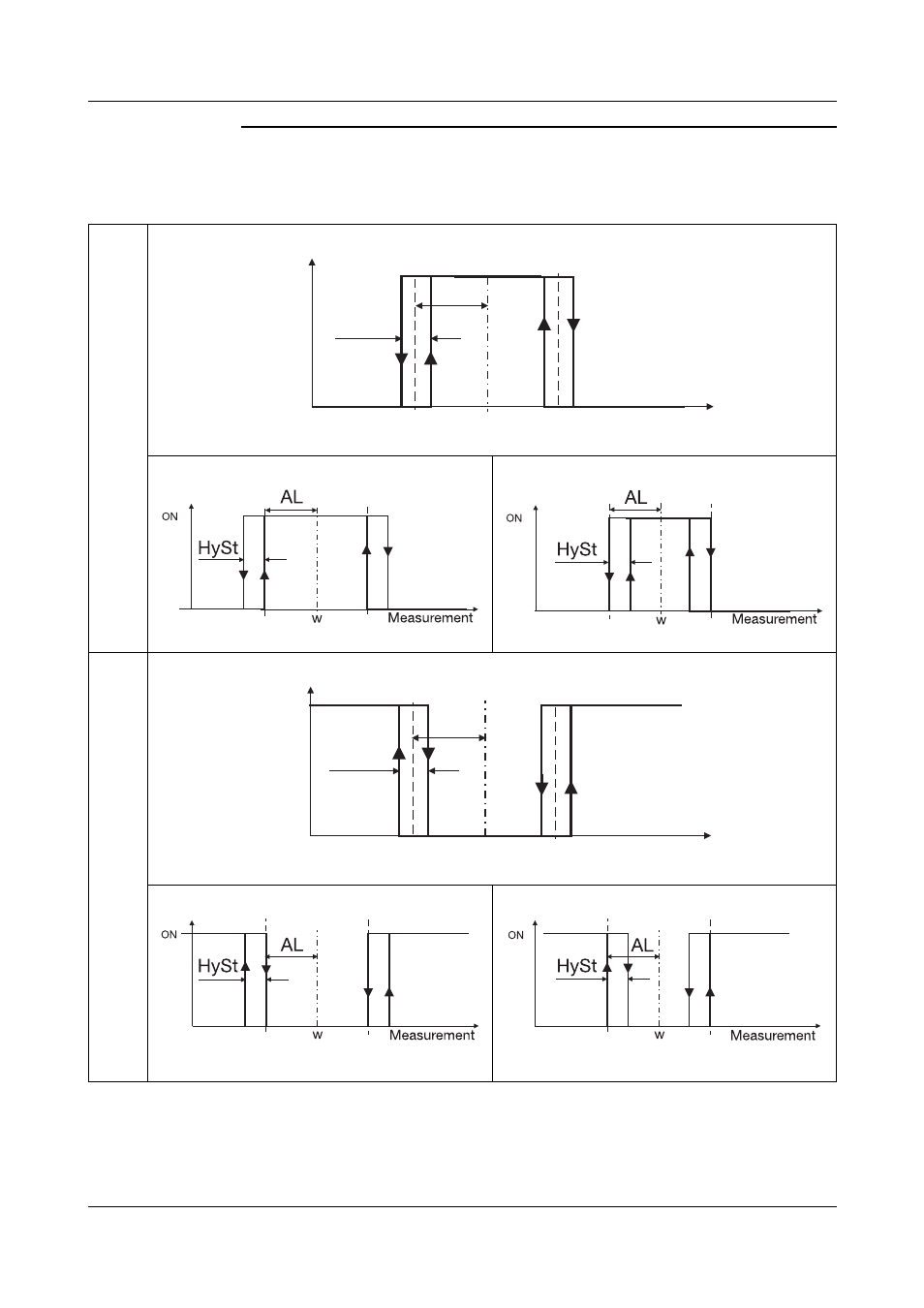

The limit comparator functions lk1 to lk6 monitor the
input variable for a limit value AL (LIMVALUE) to be set,
the absolute value depending on setpoint value w.
lk1 symmetrical
asymmetrical, left asymmetrical, right
lk2 symmetrical
asymmetrical, left asymmetrical, right
w
ON
AL
Measurement
HySt
AL
w
ON
Measurement
HySt
