5 Operation
5.1 Displays and controls
The displays are configurable.
vChapter 7.5 „Display / Operation „DISPLAY““

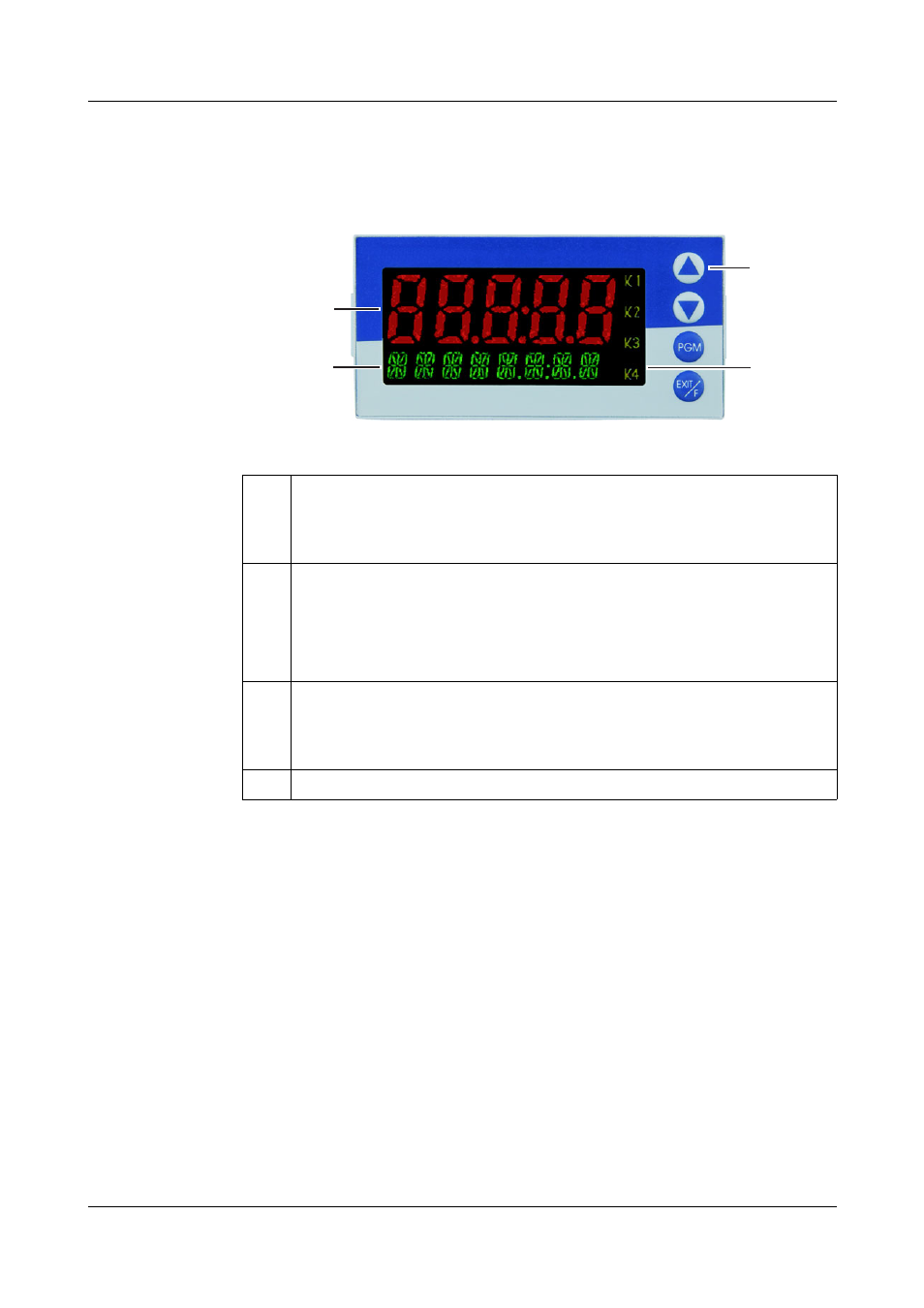

(1) 7-segment display (measured value display)
five-digit, red; decimal place is configurable
(automatic adjustment on display overflow)
(2) 16-segment display (24 character ticker,
parameter name, level symbols)
eight-digit, green or red;
decimal place configurable
(3) Indication
yellow; for four switch positions of max. four
outputs (display lit = ON)
(4) Keys
(4)
(2)
(1)
(3)
