7 Configuration
Access
H
Levels can be inhibited
vChapter 5.3 „Level inhibit“
H
Parameters are not displayed if the equipment
level does not permit the function assigned to the
parameter. Example: Analog output 2 cannot be
configured if no second analog output is
implemented in the instrument.
H
Some parameters can only be programmed
through the set-up program. In the following
tables, these are marked in the „Parameter“
column with „(Setup)“.
Normal display
OPERATOR
P
- INPUT (analog inputs)
- LIMITCOM (limit comparators)
- OUTPUT (outputs)
- BINFUNCT (binary functions)
- DISPLAY (display)
- INTERFCE (interfaces)
Configuration level
P
i
d
CONFIG
P
> 2 sec
or time-out

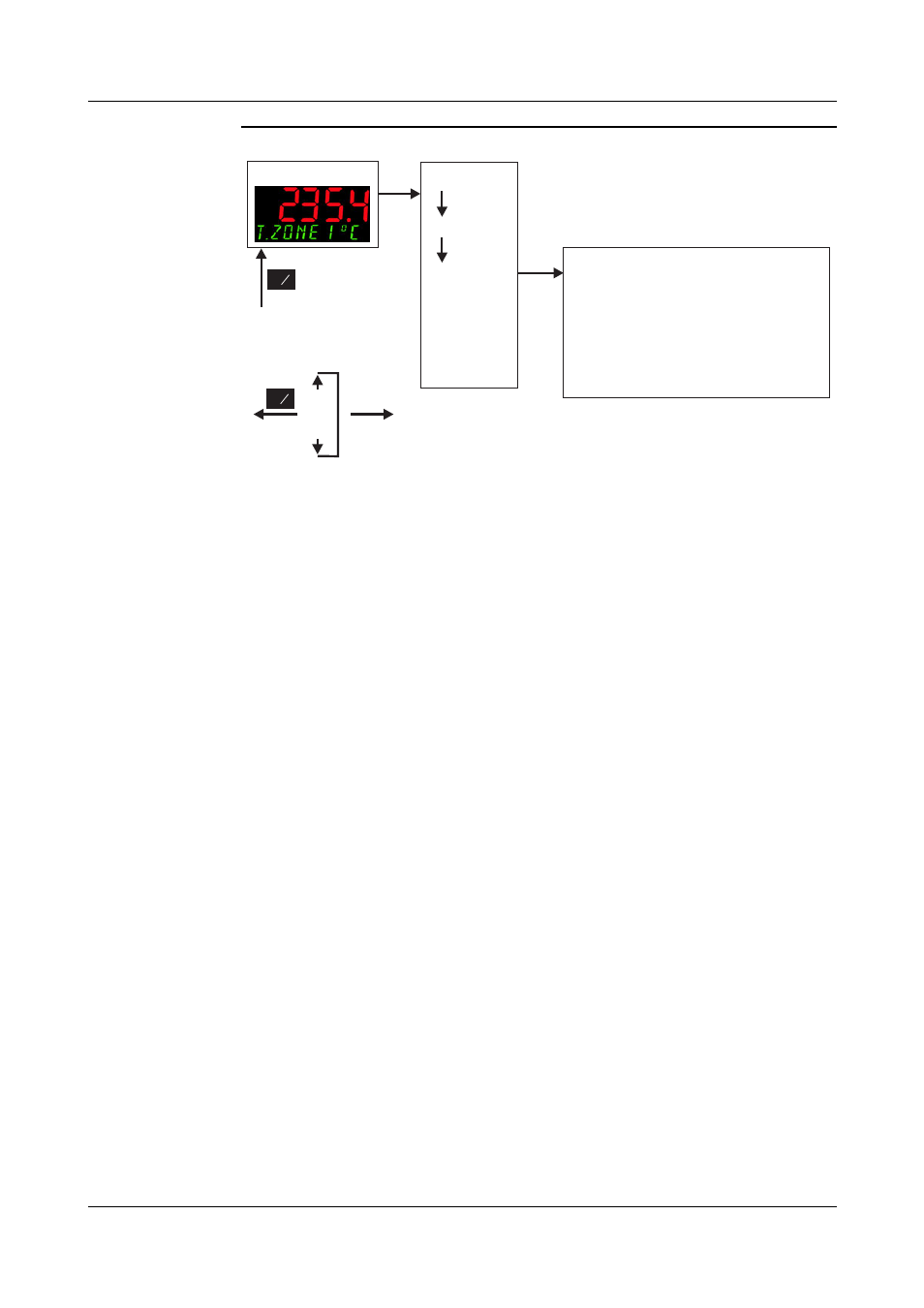

Navigation principle
USER
1. USER only visible
if user data is configured
(setup program)
1
d
d
EXIT
F
EXIT
F
