3 Mounting
16
brackets into the guides on the sides of the
housing.
The flat faces of the mounting brackets must make
contact with the housing.
h Place the mounting brackets against the panel rear,
and tighten them evenly with a screwdriver.
Mounting
controllers
back-to-back/
next to each
other
Care of the
front panel
The front panel can be cleaned with commercial
detergents and cleaning agents. It has a limited
resistance to organic solvents (e.g. methylated spirits,
white spirit, P1, xylol, etc.). Do not use high-pressure
cleaning equipment.

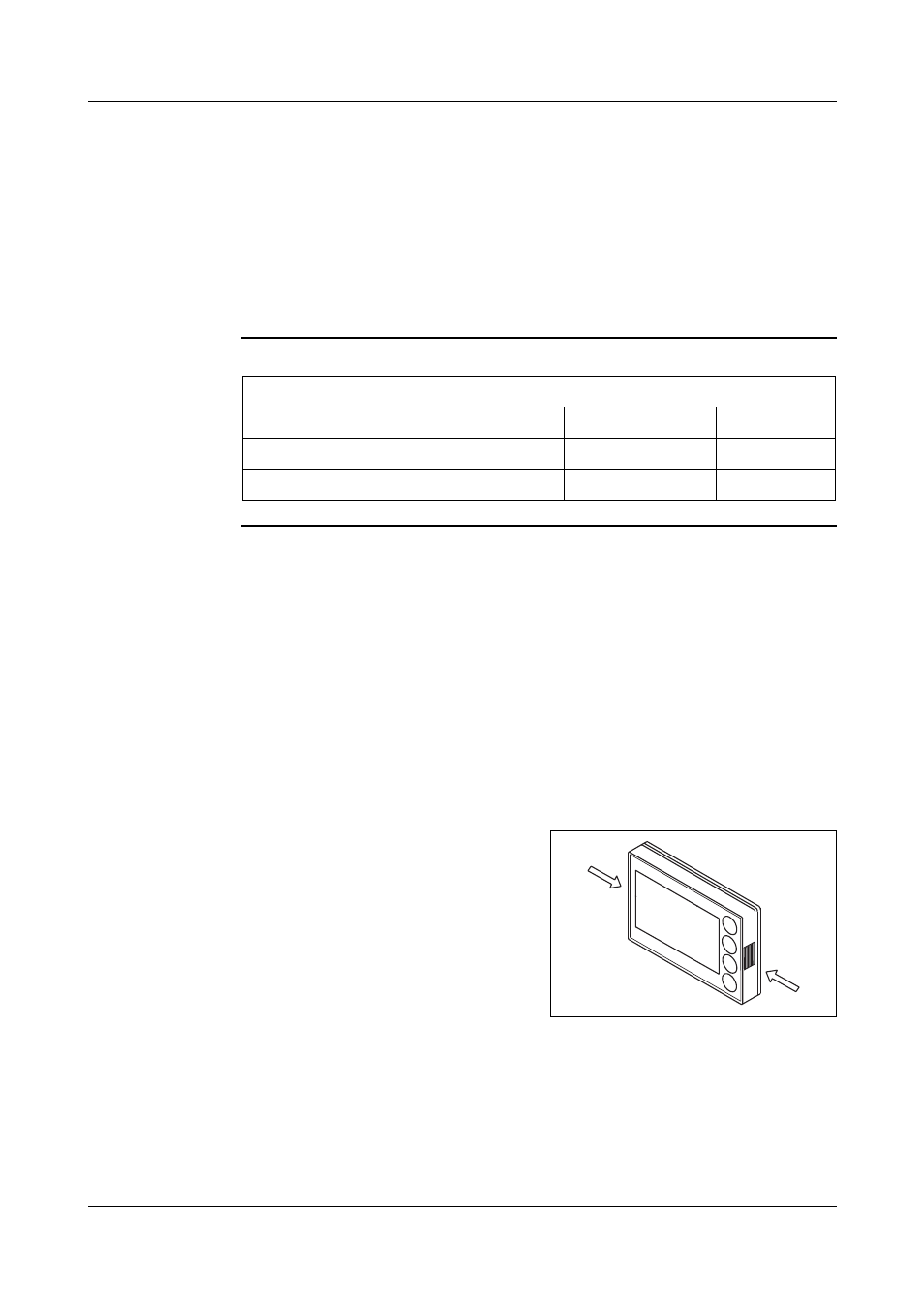

3.4 Removing the plug-in module
The plug-in module can be removed from its housing
for servicing.
h Press together the
knurled surfaces on the
front panel (left and
right), and pull out the
plug-in module.
Minimum spacing of panel cut-outs
horizontal vertical
without setup plug 30mm 11mm
with setup plug (arrow) 65mm 11mm
H
When re-inserting the plug-in module, ensure
that the latches (beneath the knurled areas)
engage.
