7 Configuration
40
Procedure:
h Step 1: The measurement carried out with the
reference measuring instrument shows a constant
oven temperature of 20°C.
h Step 2: Enter value 20 as start value (FINEADJB) at
the instrument.
h Step 3: The oven temperature is increased to 80°C,
the temperature is still controlled by a
reference measuring instrument.
The temperature must remain constant.
h Step 4: Enter the value 80 as end value
(FINEADJE) at the instrument.

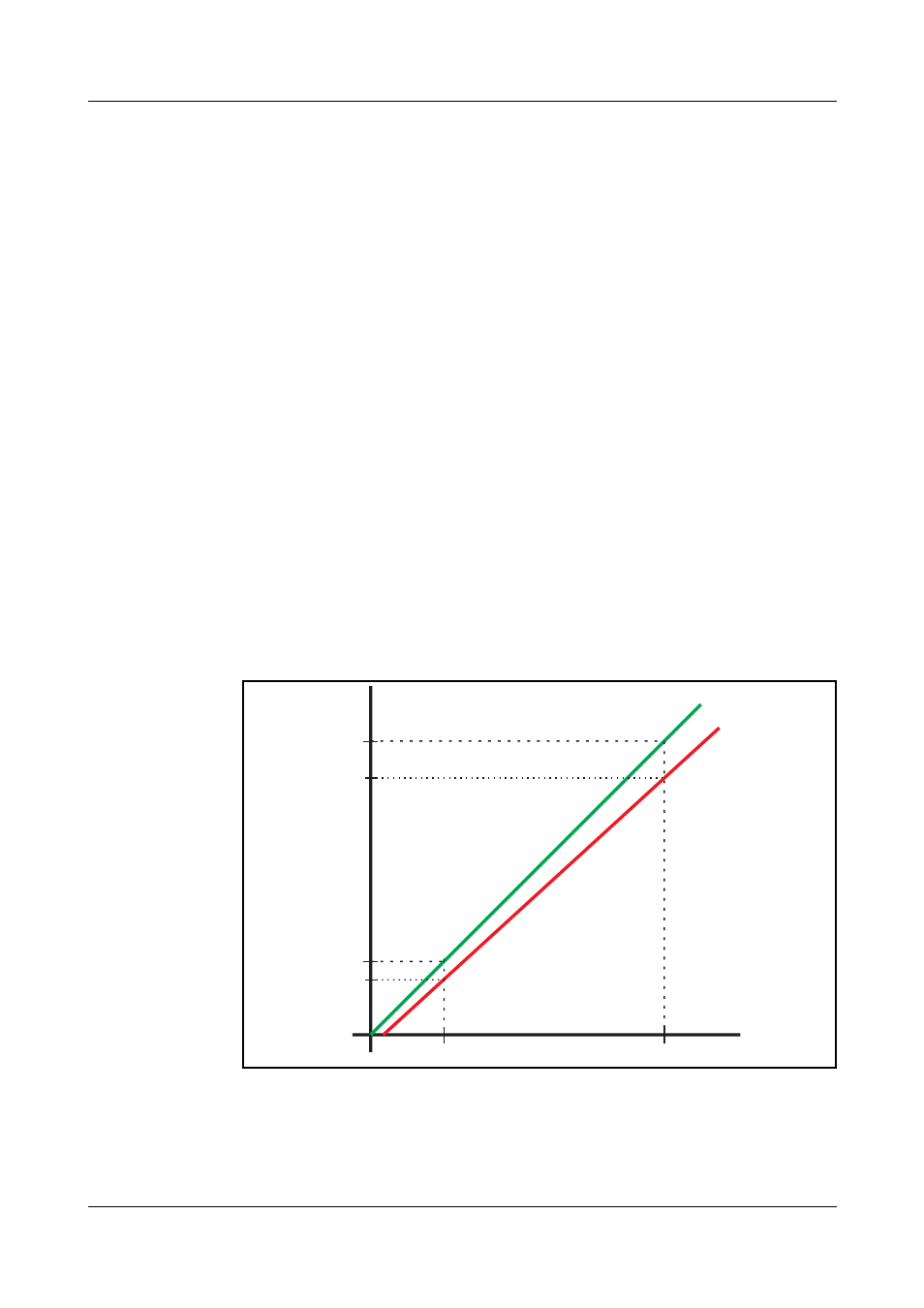

The following diagram shows the changes in the
characteristic curve caused by the fine adjustment
(point of intersection with the x axis as well as ascent)
20 80
20
80
70
15
Before fine
adjustment
After fine
adjustment
Measurement
(Reference)
Display
(Instrument)
