7 Configuration
Example of a
variable
setpoint value
The measurement is monitored (analog input 1). The
setpoint value w default value is manually entered via
a potentiometer connected to analog input 2. For this,
analog input 2 is selected as setpoint value
(LCSETVAL).

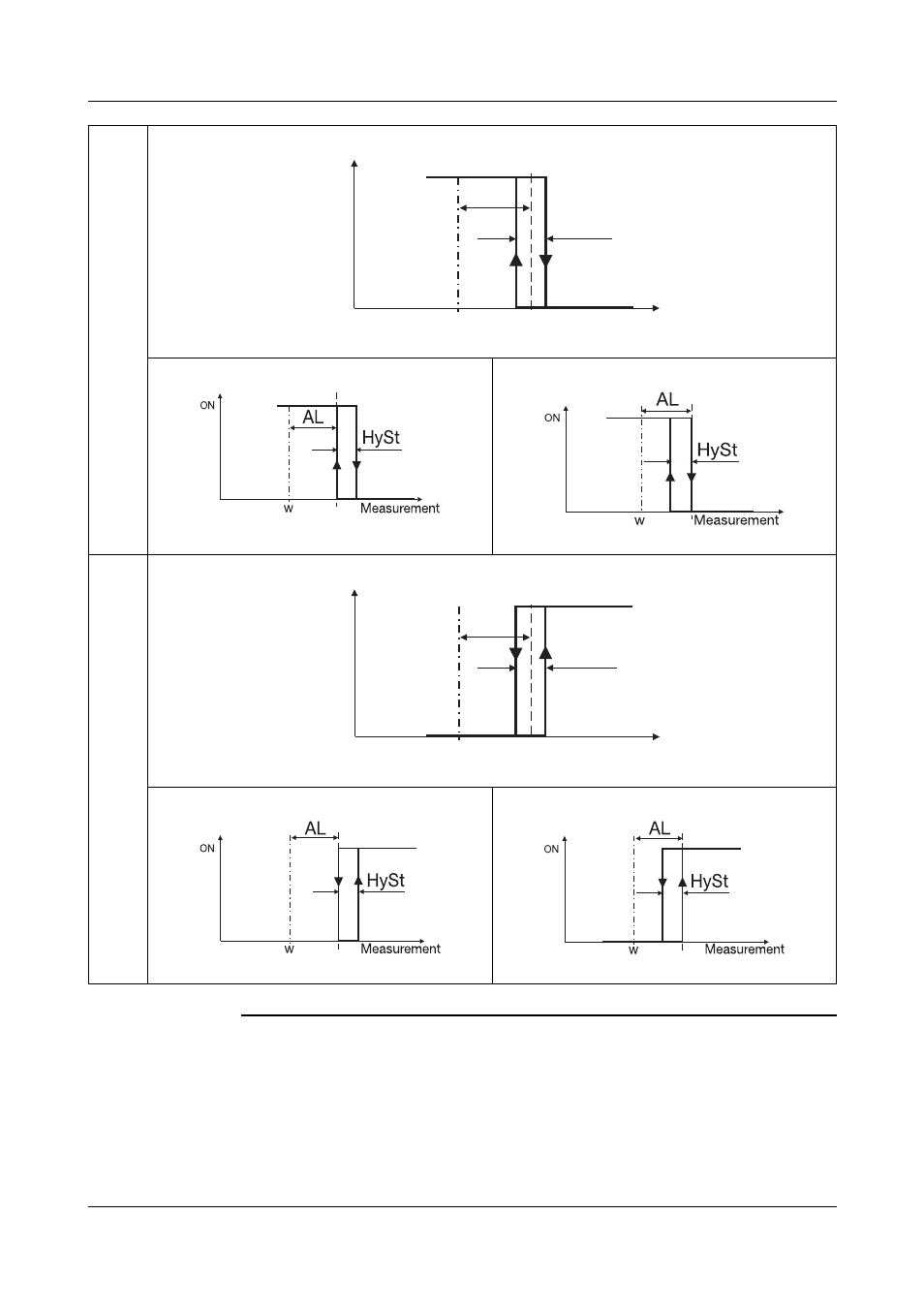

lk5 symmetrical
asymmetrical, left asymmetrical, right
lk6 symmetrical
asymmetrical, left asymmetrical, right
AL
w
ON
Measurement
HySt
AL
w
ON
Measurement
HySt
