67

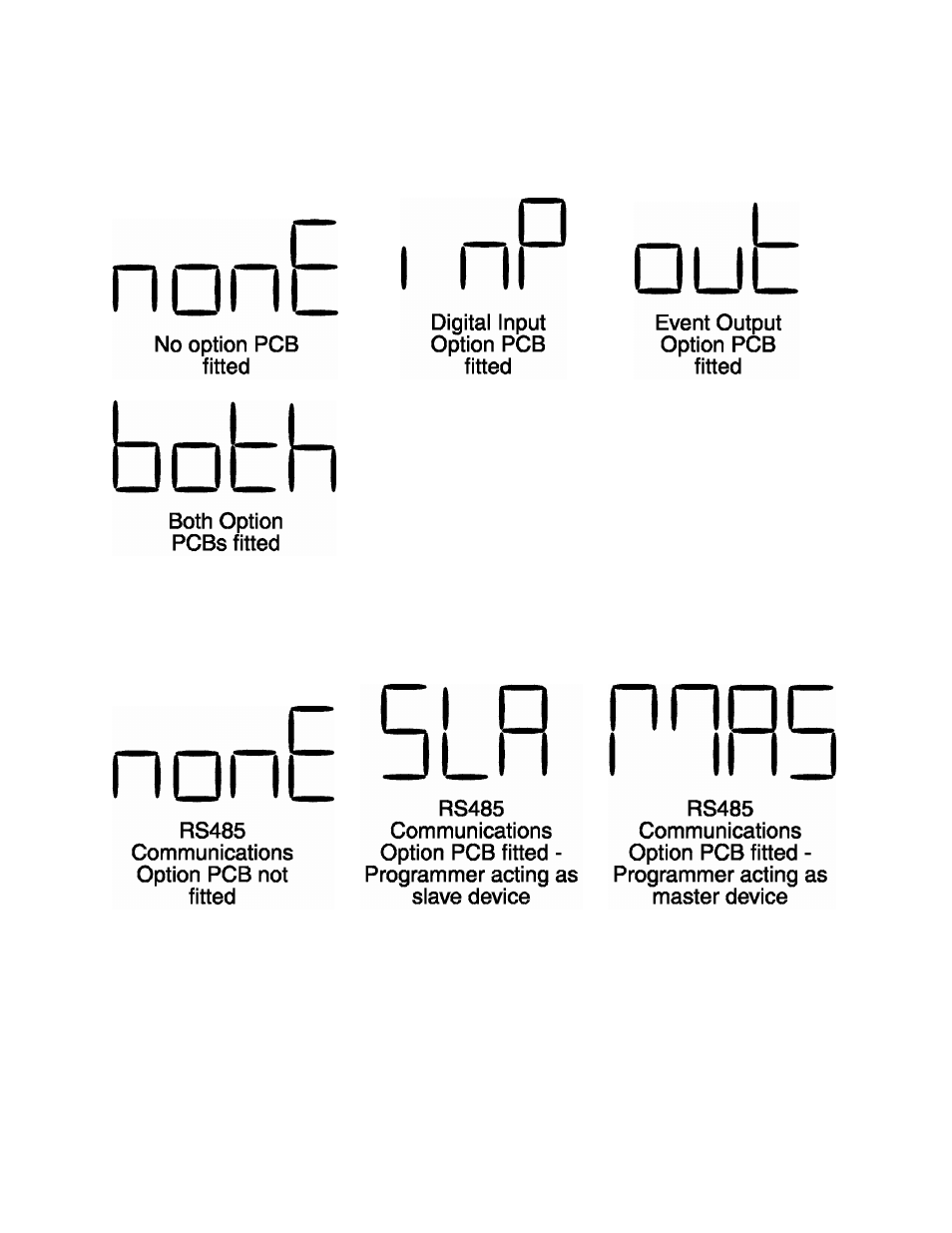

While the Hardware Definition Code is displayed, pressing the SCROLL key
will cause the Message Display to read ExtOptn, and the lower main display to change
to one of:
The desired setting can be achieved using the UP/DOWN keys.
Press the SCROLL key to change the Message Display to Comms, and the lower main
display to one of:
The desired setting can be achieved using the UP/DOWN keys.
Pressing the SCROLL key again will display Inputs in the Message Display. Press the
UP and DOWN keys to select from contact (cont) and low voltage (ttl) type of inputs.
Pressing the SCROLL key again will display the desired function of the remote input
wired to terminal 28 (see Section 2). Press the UP and DOWN keys to select from X60
