21

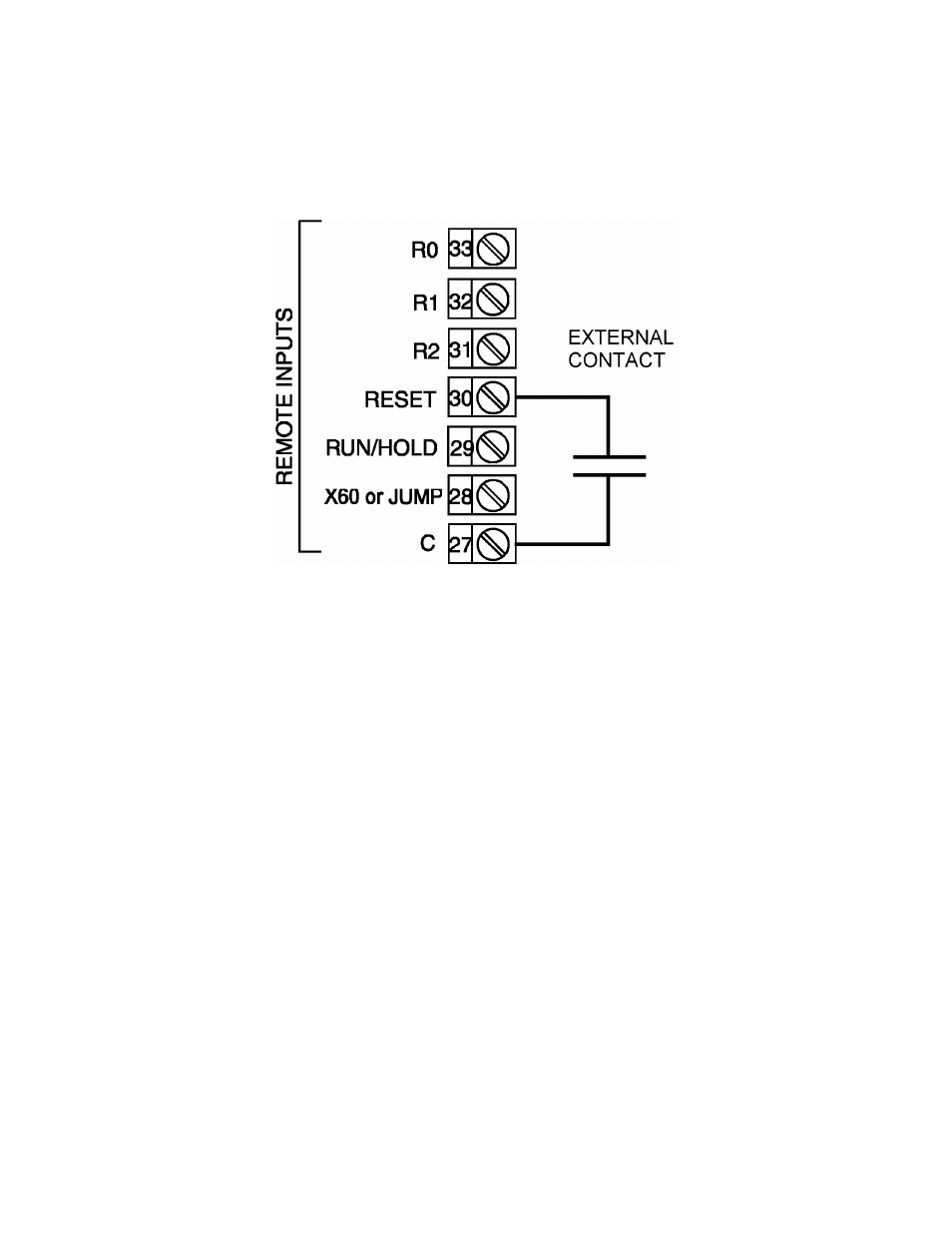

FIGURE 2-24
Remote Program Inputs (optional)
If the Remote Program Control Inputs has been specified, make connections as shown.
Note: Only one remote connection shown for clarity.
Remote inputs may be used to control parameters normally operated via the keypad.
Remote inputs are operated by closing an external relay. R0, R1 and R2 form a three-
bit digital representation of the desired profile, with R0 being the least significant bit.
Closing the RESET input will cause a running profile to abort. Closing the RUN/HOLD
relay will start a profile. Subsequently opening this contact will hold the profile at its
current setting and closing it again will continue the profile. The X60 or JUMP input is
configurable to cause either a change to the profile timebase (X60) or jump to the next
segment (JUMP).
