6

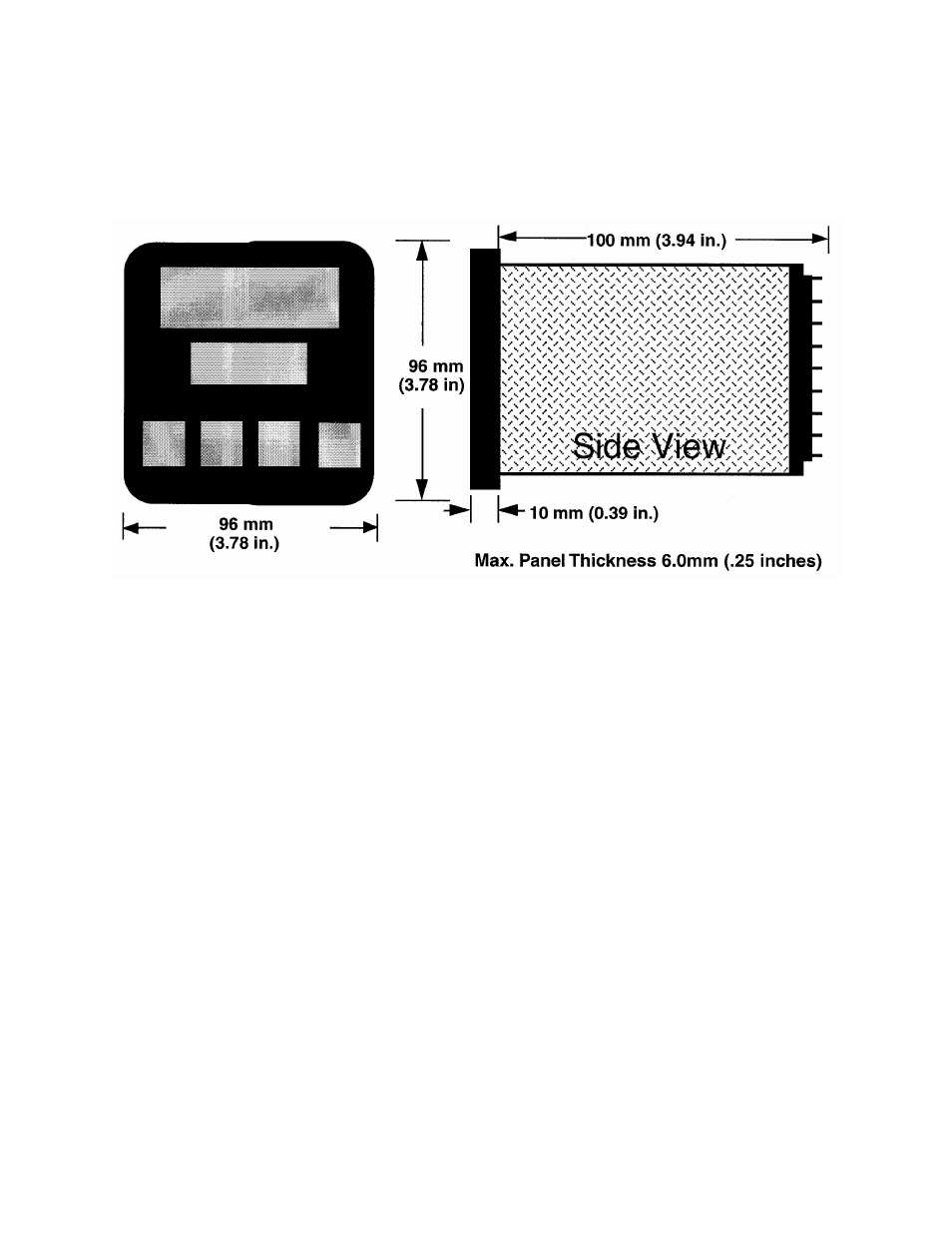

The main dimensions of the instrument are shown below.
FIGURE 2-2
Main Dimensions
To panel-mount the instrument:
1. Insert the rear of the instrument housing through the cutout (from the front of the
mounting panel) and hold the instrument lightly in position against the panel.
Ensure that the panel gasket is not distorted and that the instrument is positioned
squarely against the mounting panel. Apply pressure to the front panel bezel only.
Caution: Do not remove the panel gasket, as this may result in inadequate
clamping of the instrument in the panel.
2. Slide the fixing strap in place (Figure 2-3) and push it forward until it is firmly in
contact with the rear face of the mounting panel (the tongues on the strap should
have engaged in matching ratchet positions on the instrument housing and the fixing
strap springs should be pushing firmly against the mounting panel rear face).
Once the instrument is installed in its mounting panel, it may be subsequently removed
from its housing, if necessary, as described in Appendix B.
