1.7 Event Outputs
The optional event outputs may be used to control external components during either
single setpoint control (Base Mode) operation or during a profile (Program Run Mode).
The events can be configured as timed or process value events.
1.8 Real-Time Clock
The instrument may be fitted with a real-time clock which allows starting a profile at a
specific time and day. The clock may also be used by the controller to determine
whether to restart a profile or return to Base Mode when a power loss occurs.
1.9 Communications
The optional communications feature allows the instrument to be controlled from an
external source or to supply digital information. This feature provides for
uploading/downloading of profiles and configuration information.

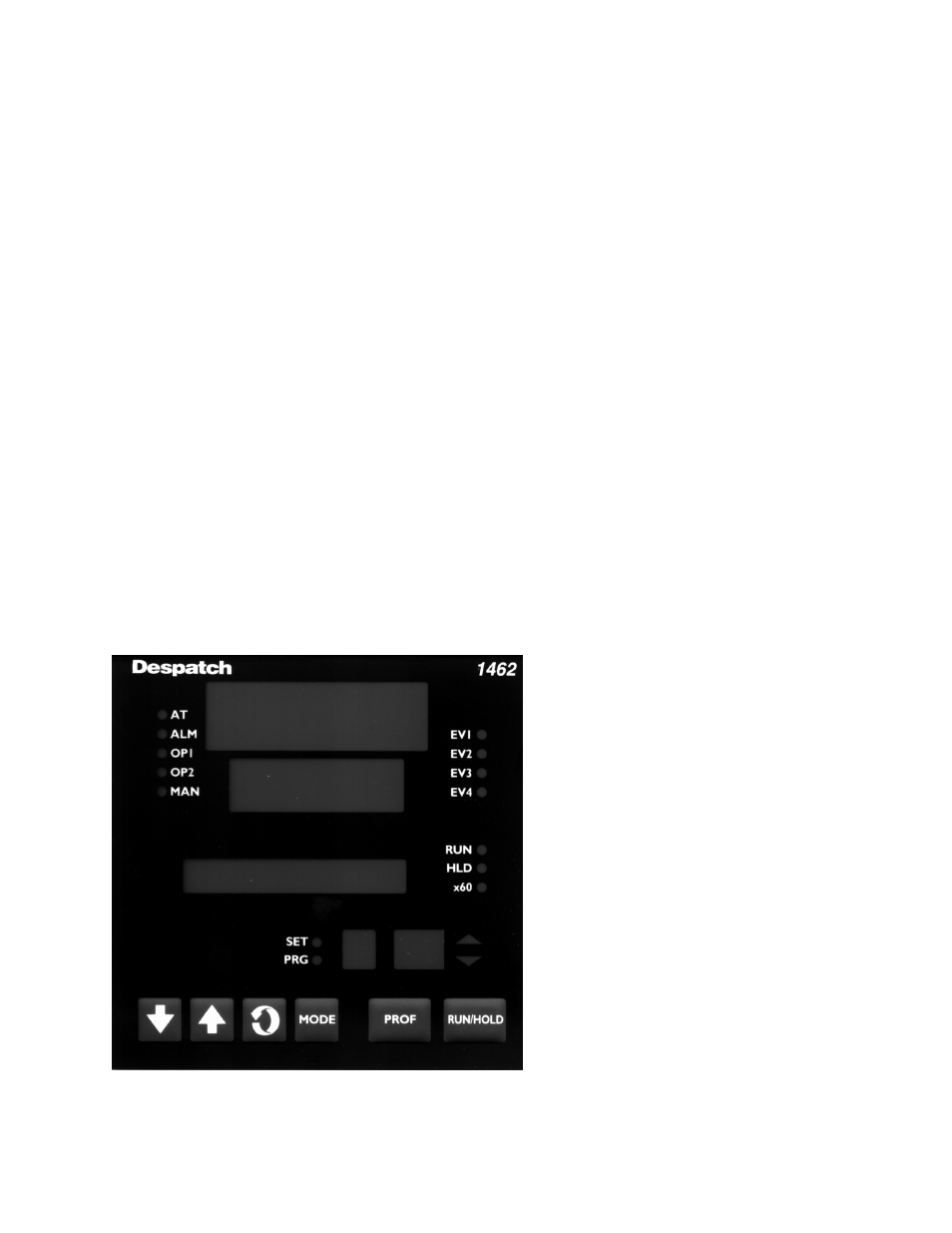

FIGURE 1-1 Front Panel
