50

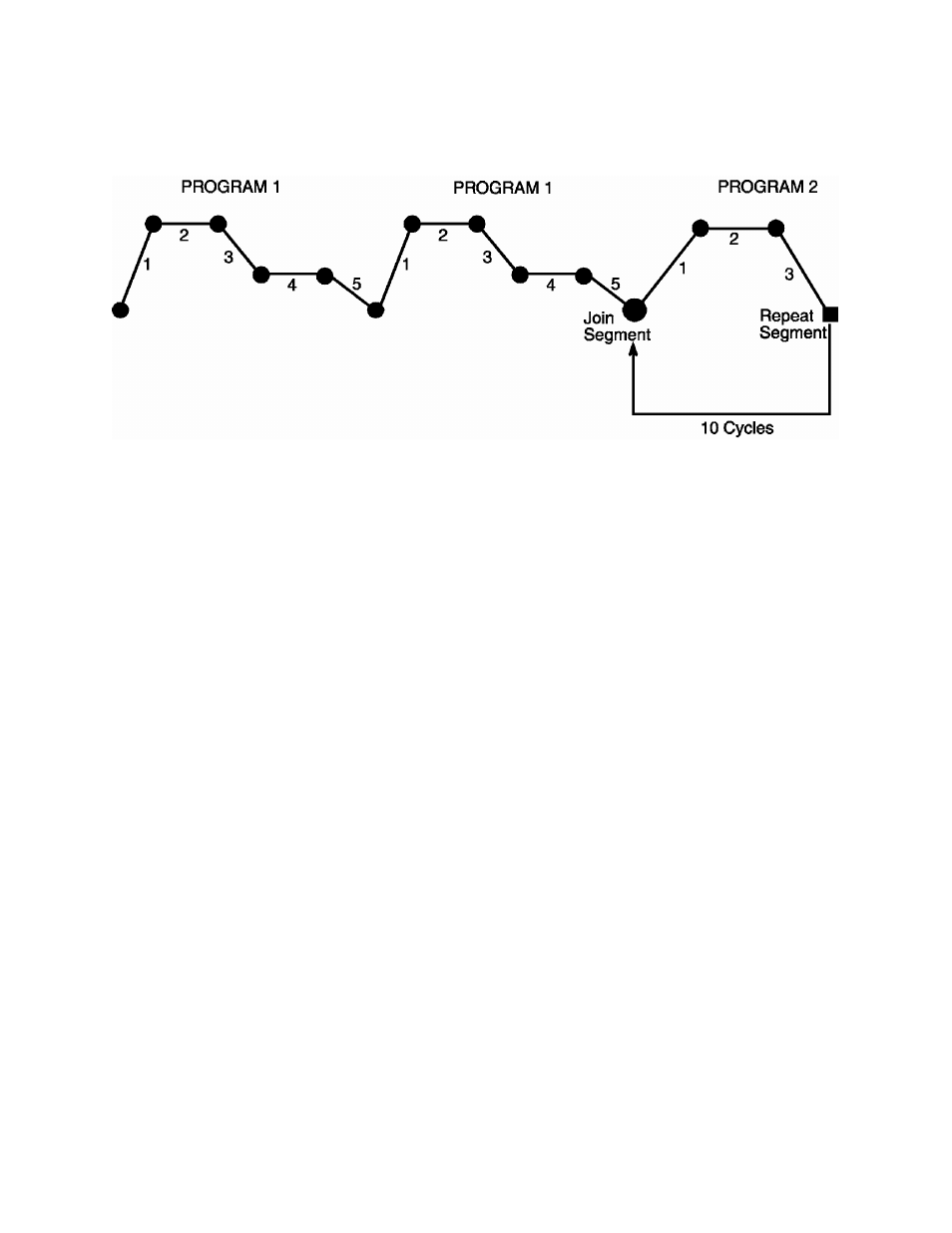

Now, with Program 2 set to perform 10 cycles, change its last segment to a Repeat
segment (Segment Time or Ramp Rate set to REP); the result would be:
At the end of the tenth cycle of Program 2, the program sequence would end.
6.6 Basic Rules To Remember
In any program sequence:
•
A program ending in a Join segment will perform the required number of cycles of
itself before joining the new program.
•
A program ending in a Repeat segment (hence, by definition, the last program in the
sequence) will perform the required number of cycles of itself before ending the
sequence.
•
A program ending in an End segment (hence, by definition, the last program in the
sequence) will perform its cycle on the entire program sequence before ending that
sequence.
6.7 Exiting Profile Set Mode
The operator may exit from Profile Set Mode by pressing the MODE key. To return to
Base Mode, press the MODE key until the Base Mode prompt appears in the Message
Display, then press the SCROLL key.
