Atop Industrial Serial Device Server
SE5408A/SE5416A Series
User Manual V 1.0
85
IP Address Link Mode Local Listening Port Destination IP Destination Port
SE5416A Master COM1 10.0.50.100 UDP 5000 10.0.50.200~10.0.50.202 5000
SE5416A Master COM1 10.0.50.100 UDP 5001 10.0.50.200~10.0.50.201 5000
SE5416A Master COM1 10.0.50.100 UDP 5002 10.0.50.200 5000
SE5416A Slave 1 COM1 10.0.50.200 UDP 5000 10.0.50.100 5000
SE5416A Slave 1 COM2 10.0.50.200 UDP 5001 10.0.50.100 5001
SE5416A Slave 1 COM3 10.0.50.200 UDP 5002 10.0.50.100 5002
SE5416A Slave 2 COM1 10.0.50.201 UDP 5000 10.0.50.100 5000
SE5416A Slave 2 COM2 10.0.50.201 UDP 5001 10.0.50.100 5001
SE5416A Slave 3 COM1 10.0.50.202 UDP 5000 10.0.50.100 5000

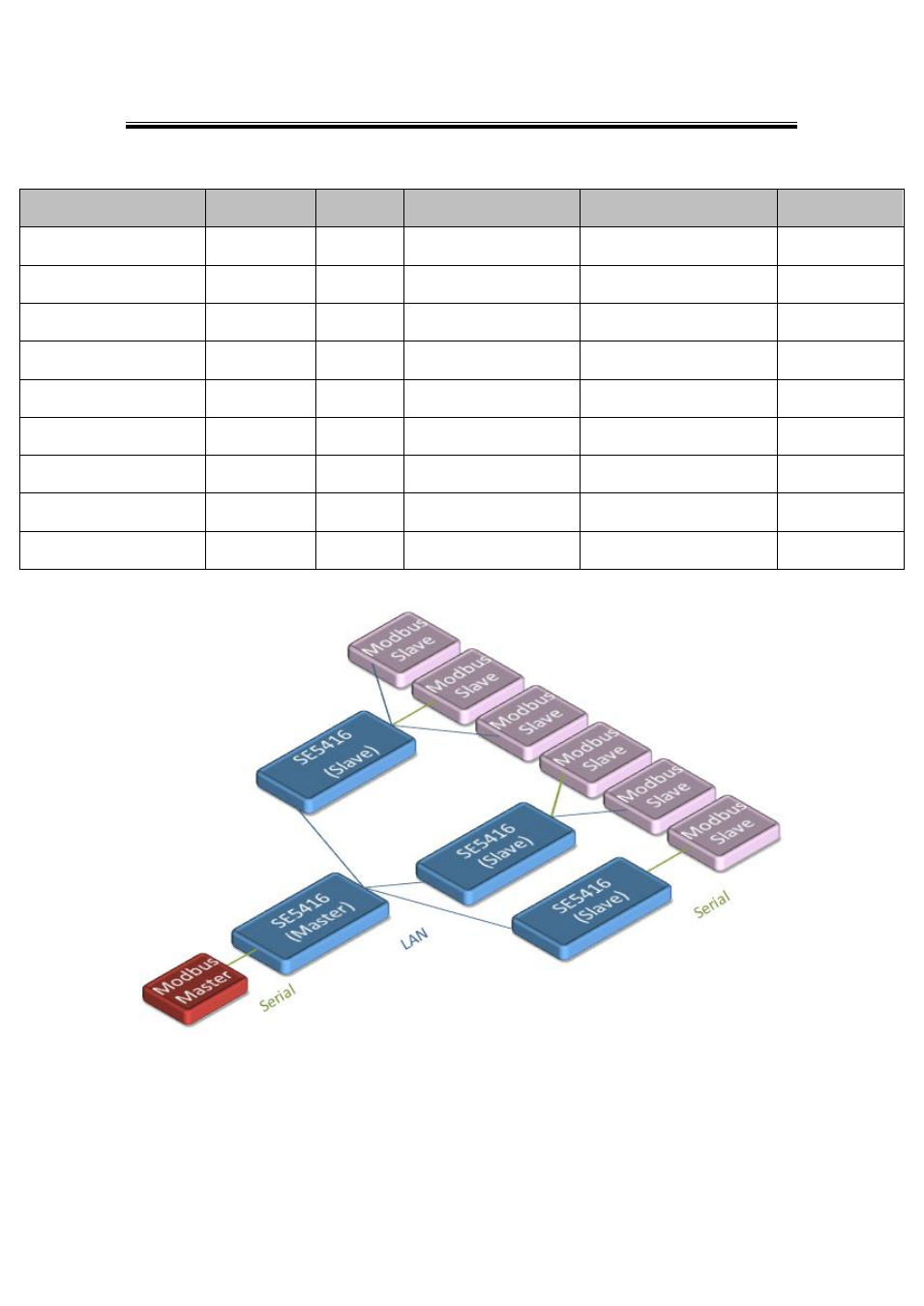

Figure 7.12
