Atop Industrial Serial Device Server
SE5408A/SE5416A Series
User Manual V 1.0
61
Figure 6.7
6.5.4 Bridge Settings

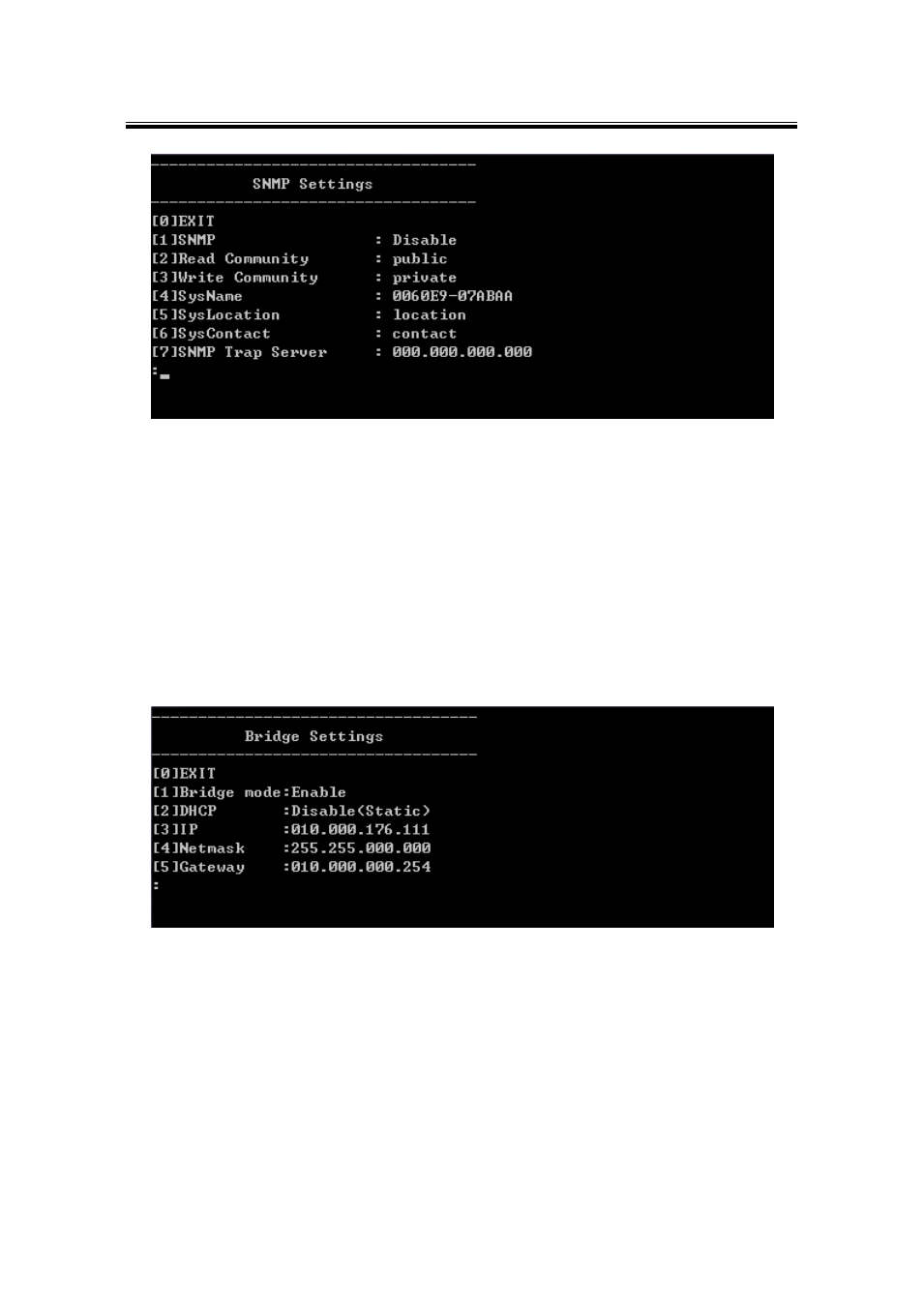

SE5416A Series has a bridge mode that can be enabled. When the bridge mode is enabled,
LAN1 and LAN2 would be merged to create one single Ethernet interfaces. When one of the
physical LAN port fails, SE5416A Series would automatically use the other LAN port.
Configure network settings of the bridge here.
Operation: Main
→ [2]Networking → [6]Bridge Settings
Figure 6.8
6.5.5 ERPS Settings
SE5416A Series supports the ERPS function, a standard ring protocol. The options in this
menu allows you to definite ERPS status, RAPS VLAN, RPL owner, RPL port, WTR timer,
holdoff timer, guard timer, and MEL.
Operation: Main
→ [2]Networking → [7]Bridge Settings
