Atop Industrial Serial Device Server
SE5408A/SE5416A Series
User Manual V 1.0
18
4 LCM Configuration

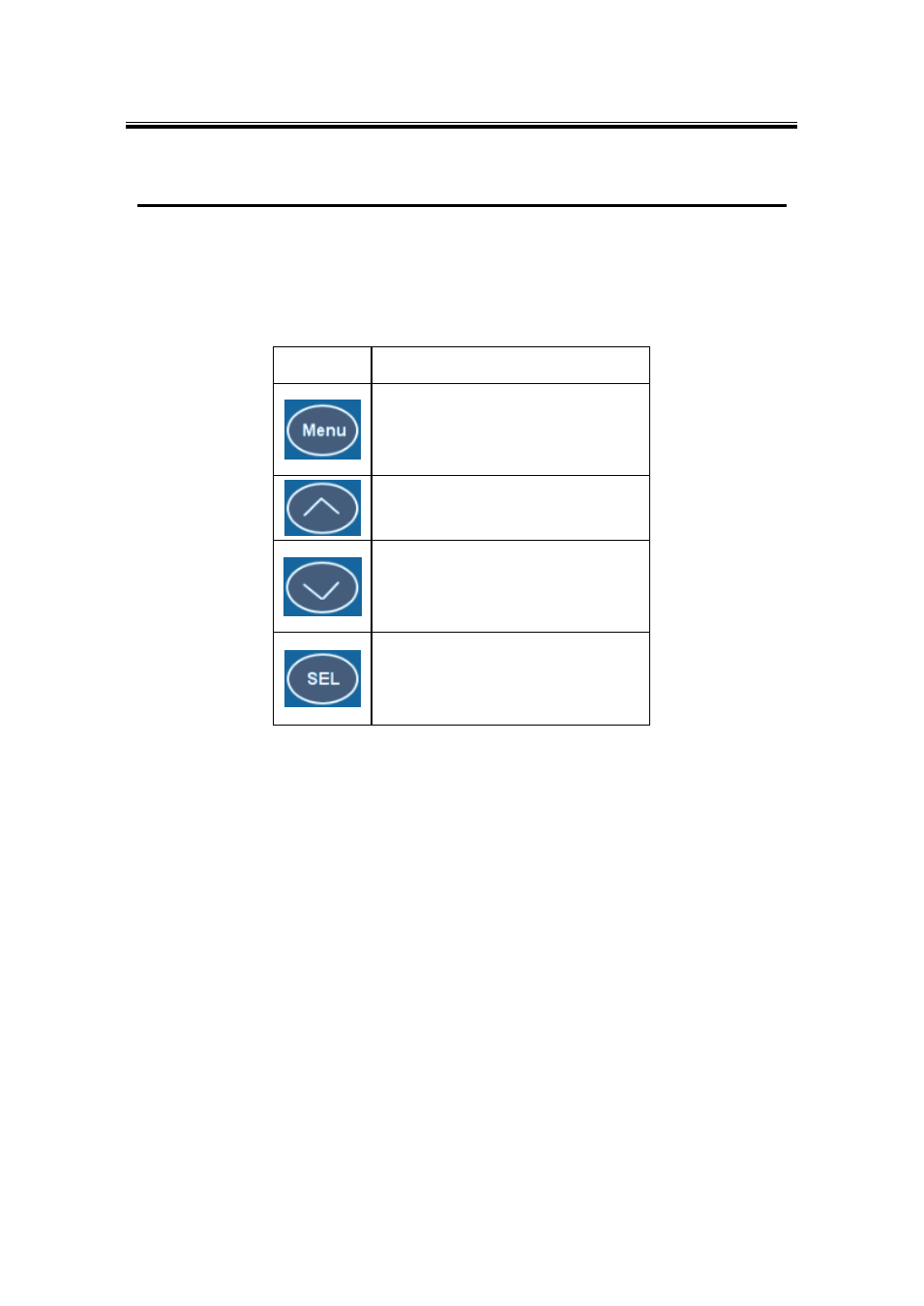

There is an LCM (Liquid Crustal Monitor) installed on the front panel of the device that can be
used to display device information and perform basic configurations. The table below
illustrates its buttons and corresponding functions.
Buttons
Function
Open Main Menu or go back one level
higher
Scroll up
Scroll down
Confirm the selection. When working
with IP addresses, pressing
means moving to the next digit
4.1 Welcome Screen
When the device boots up, the LCM will display LAN1. If you scroll down, it will display LAN2
information. The format is:
LAN1: Link down
10.0.50.100
▼
4.2 Main Menu Structure
Press the
