2. Press the “ESC” key to return to the previous menu.
3. Some changes to the device would take effect only after the device is restarted.
4. Detailed explanations are embedded in the LCM Configuration
There is an LCM (Liquid Crustal Monitor) installed on the front panel of the device that can be
used to display device information and perform basic configurations. The table below
illustrates its buttons and corresponding functions.

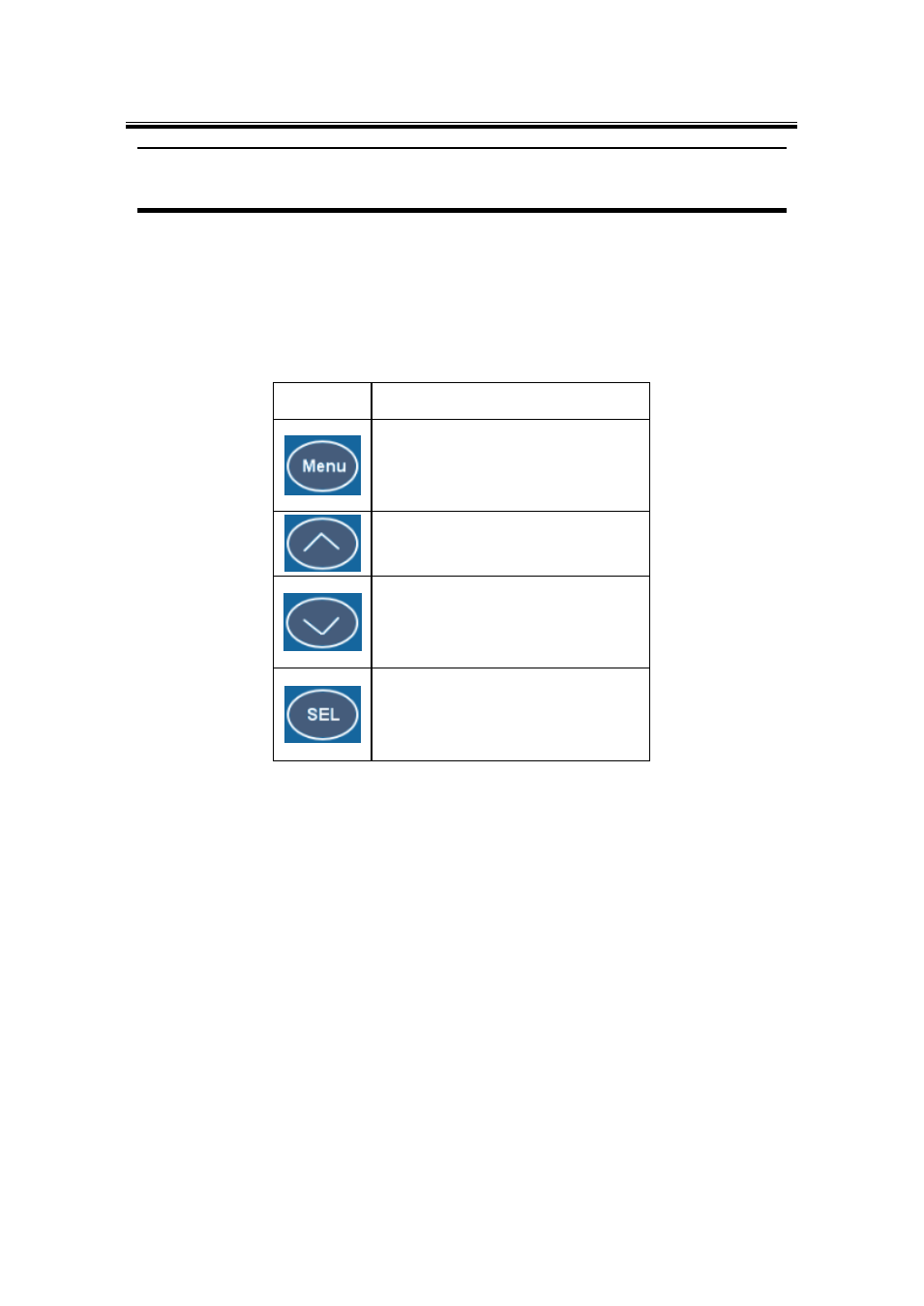

Buttons Function
Open Main Menu or go back one level
higher
Scroll up
Scroll down
Confirm the selection. When working
with IP addresses, pressing
means moving to the next digit
6.3 Welcome Screen
When the device boots up, the LCM will display LAN1. If you scroll down, it will display LAN2
information. The format is:
LAN1: Link down
10.0.50.100 ▼
6.4 Main Menu Structure
Press the
option. Press to go to the back one layer or option.
