Page 65: Serial settings

Atop Industrial Serial Device Server
SE5408A/SE5416A Series
User Manual V 1.0
65
(if enabled).

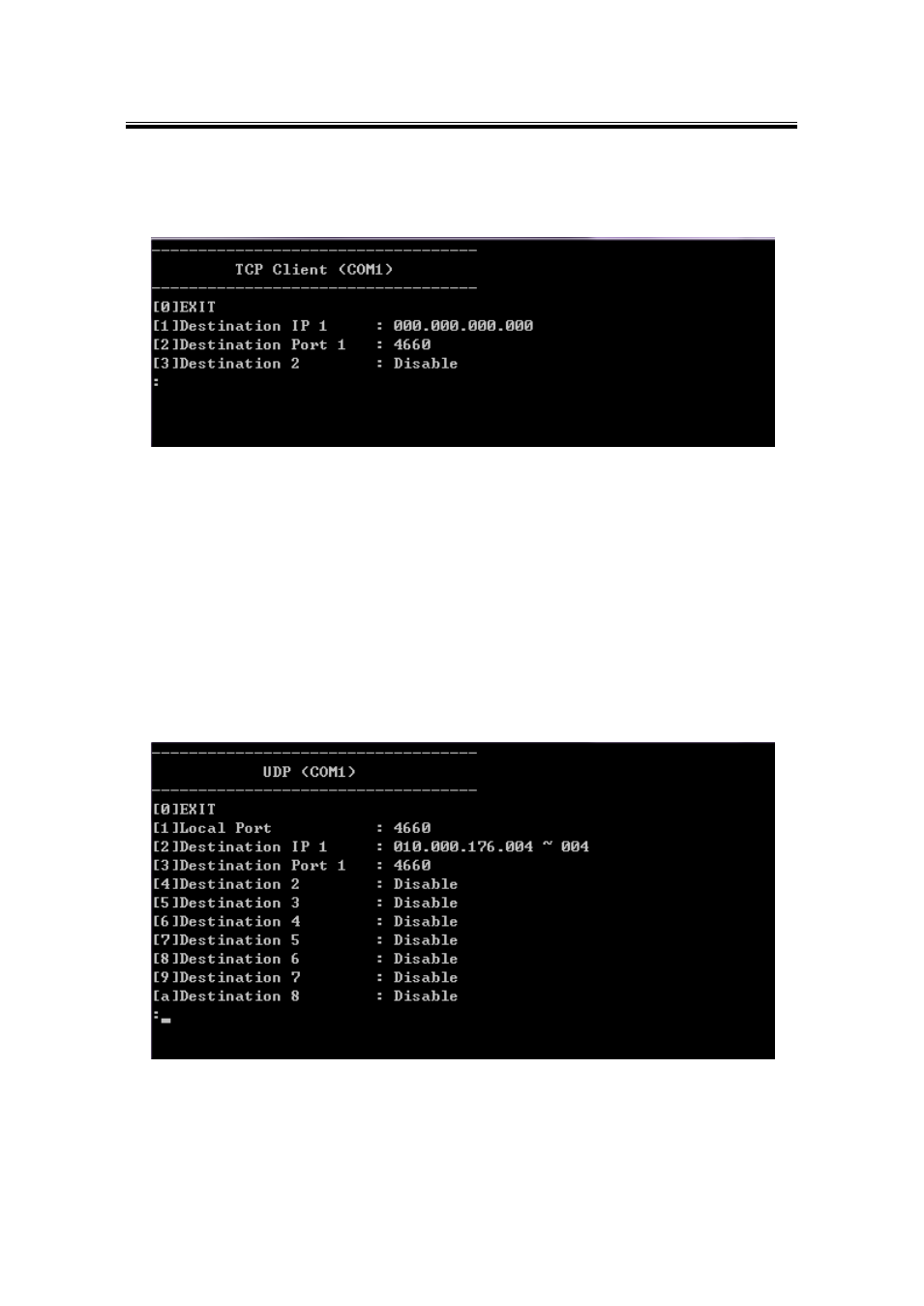

Operation: Main [6]COM Port Setting[1-4]Select Port[1]Link Mode[2]TCP Client
Figure 6.13
6.6.3 UDP Link Mode
SE5416A
Series’ Link Mode can be configured to utilize UDP. Note that UDP is a
connection-less protocol, so data delivery is not guaranteed. You will need to configure the
settings of Destination IPs. The Destination IP field supports input of IP range and up to eight
Destination IPs are supported.
Operation: Main [6]COM Port Setting[1-4]Select Port[1]Link Mode[3]UDP
Figure 6.14
6.6.4 Serial Settings
Here you can configure Uart mode, baud rate, parity, data bit, stop bit, and flow control.
