Atop Industrial Serial Device Server
SE5408A/SE5416A Series
User Manual V 1.0
82

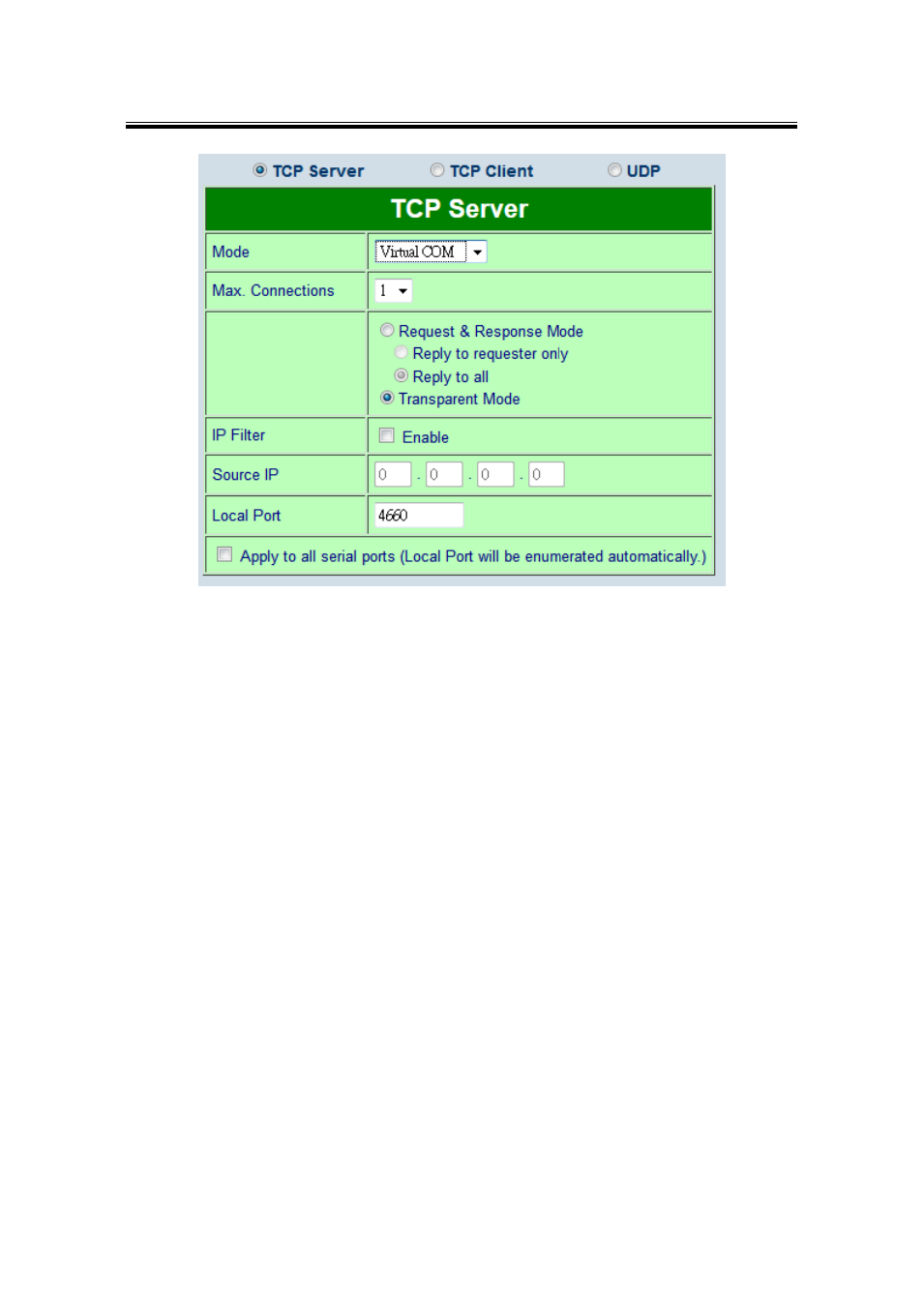

Figure 7.9
Follow
Sec. 7.2.1
to configure SE5416A Series in TCP Server mode properly.
Click on the dropdown box of the Mode
option and switch to “Virtual COM” to enabled
Virtual COM application in SE5416A Series.
Scroll
to the bottom of the page and click on “Save Configuration” button to save the
changes.
Remember Pair Connection Master’s IP address here in order to enter this information in
the Slave later.
Proceed to the
Sec. 7.2.6
to configure a Slave to connect to this Master.
7.2.6 TCP Client Application: Configure SE5416A Series as a Pair
Connection Slave
A Pair Connection Slave, is shown in Figure 7.10; it is necessary to pair up with a Pair
Connection Master. Please setup a Pair Connection Master first before proceeding.
