©2014 POISON SPYDER CUSTOMS, INC. • 951-849-5911 • WWW.POISONSPYDER.COM

INSTALLATION INSTRUC

TIO

NS

Thank you for purchasing a Poison Spyder JK

Evap Skid. The Skid will protect your Jeep’s

vulnerable evaporative canister from damage

on the trail. Note that the installation procedure,

brackets and hardware are different for ‘07-’11

and ‘12+ JK’s (hardware and instructions for both

are included). Installation is fairly simple with

the right tools and good mechanical abilities. If

you are not confident in your mechanical skills,

please seek the help of a professional to perform

the installation. Please read through these entire

instructions before proceeding with installation.

PARTS LIST
Please check your packages immediately upon

arrival to ensure that everything listed is included,

and to check for damage during shipping. If

anything is missing or damaged, call Poison

Spyder at (951) 849-5911 as soon as possible.

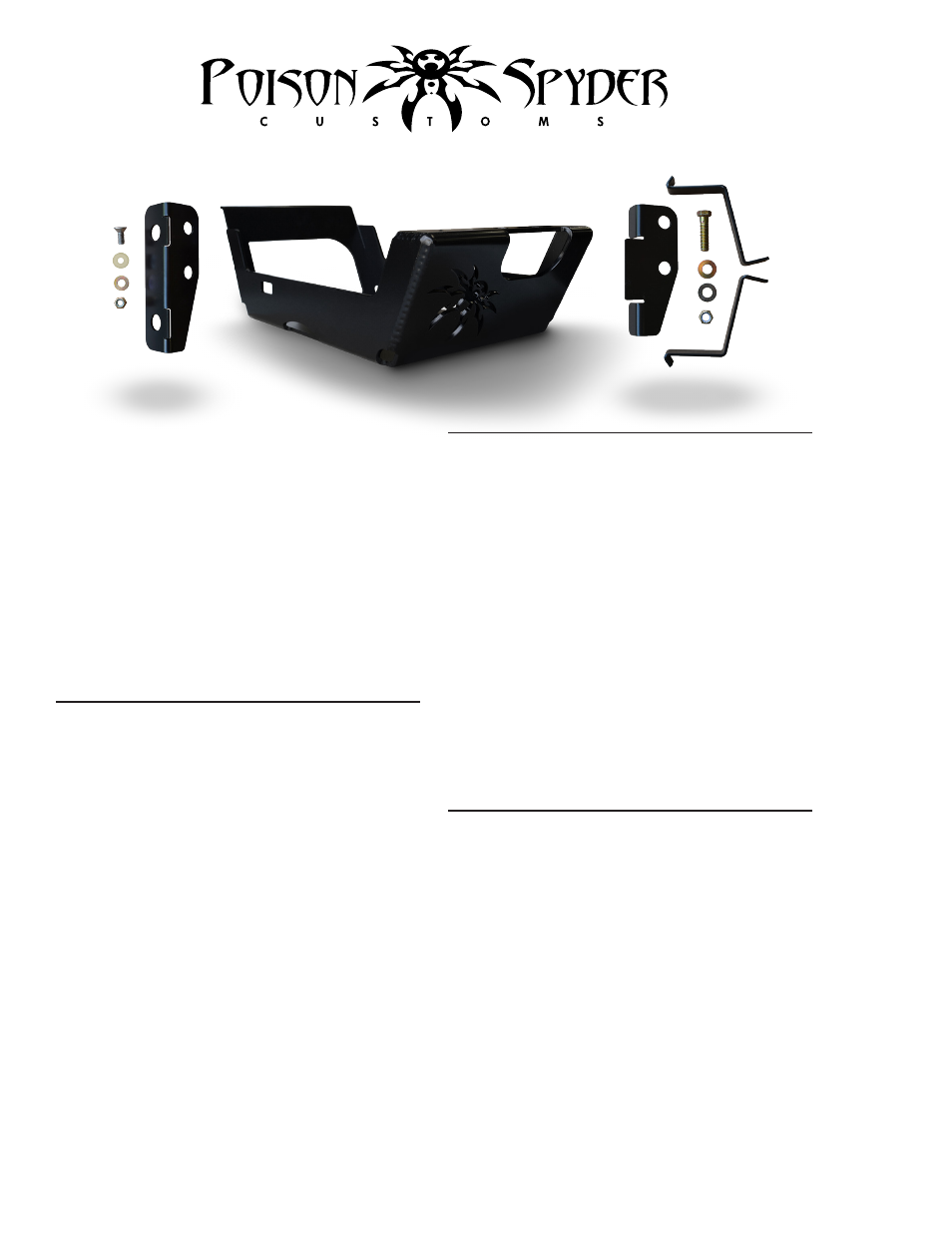

(1) JK Evap Skid

‘12+ INSTALL KIT:

(1) 12+ Front Hold-Down Bracket
(1) 5/16 X 3/8 Nylon Spacer
(1) 5/16-18 X 1 SS Flat Head Cap Screw
(1) 5/16-18 Nylon Insert Lock Nut
(1) 5/16 Flat Washer

‘07-’11 INSTALL KIT:

(1) 07-11 Front Hold-Down Bracket
(2) 07-11 Rear Hold-Down Strap
(1) 3/8-16 X 1-1/2 Gr.8 Hex Head Cap Screw
(1) 3/8-16 Nylon Insert Lock Nut
(2) 3/8 Flat Washer

TOOLS NEEDED

• Small flat screwdriver or pick (07-11)
• 9/16” end wrenches (2) (07-11)
• Needle-nosed pliers (12+)
• 3/16” Hex key or driver bit (12+)
• 1/2” end wrench (12+)
• 13mm (12+) & 16mm end wrenches
• 13mm (12+) & 16mm sockets & ratchet

NOTE: Parts and procedures are provided for

installing the JK Evap Skid in either ‘07-’11 or

‘12+ model year Jeep JK’s. Use the parts and

tools from the lists above, and the procedure

below, that correspond to your specific year

model.

‘07-’11 INSTALLATION PROCEDURE
1. Park vehicle on a level
surface, place the

transmission in gear or park, and set the

emergency brake. Wear safety glasses from

this point on.

2. Use a small flat screwdriver or pick to

disengage and unplug the two line lines

at the back of the canister. Each of these

connections has a wire spring/bail that can

be pried up to release it from its socket.

Work the vapor line loose from its fitting. It is

just a slip-fit but can be on there pretty tight.

JK EVAP SKID INSTALL INSTRUCTIONS

‘12+ INSTALL KIT

‘07-’11 INSTALL KIT

JK EVAP SKID
