INSTALLATION INSTRUC

TIO

Poison Spyder Customs • JK ROCKER KNOCKERS INSTALLATION

Page 3

drilling these holes—the material is thin and

a bit this size can catch and distort the metal.

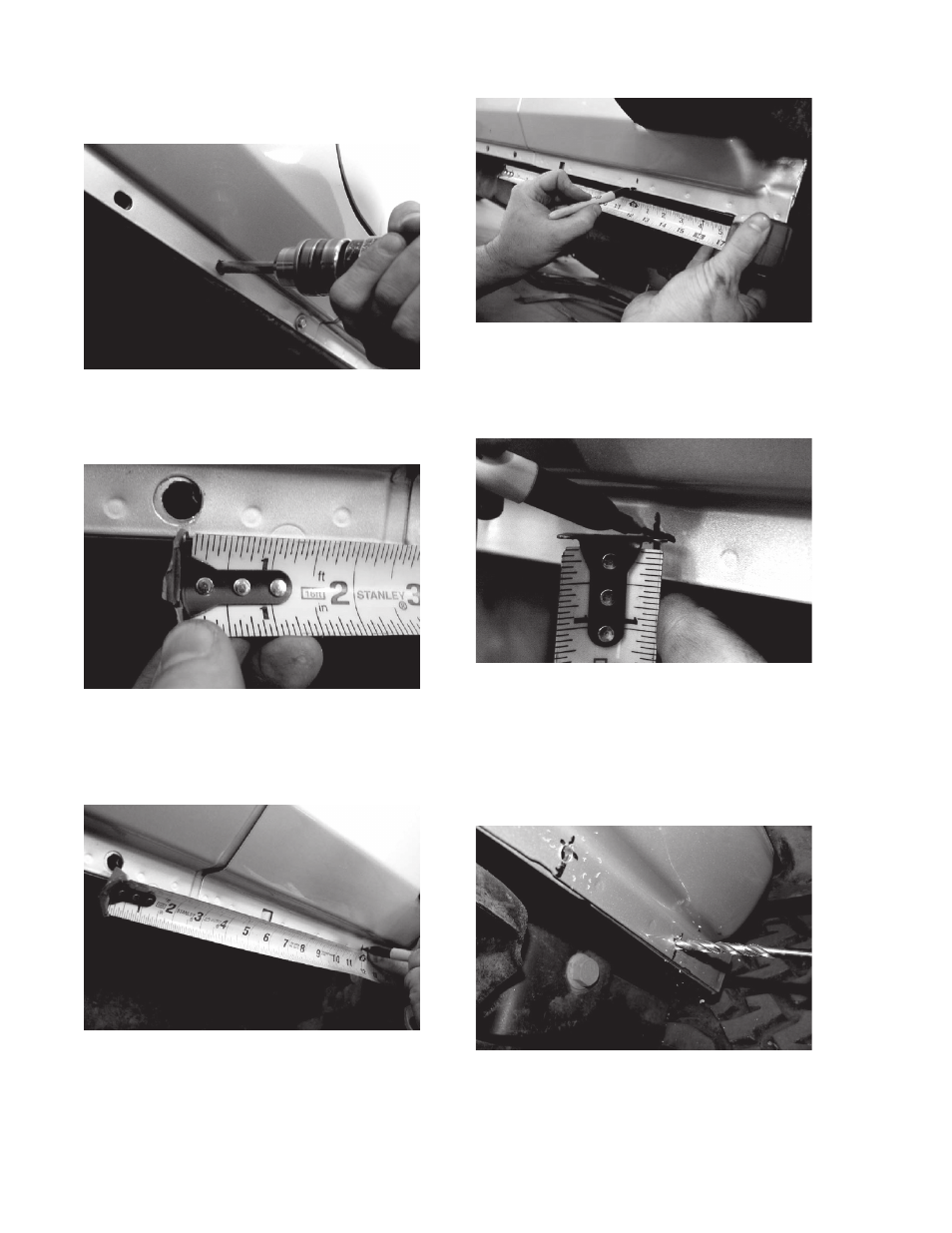

FIGURE 4

2. (2-door models only) Starting from the

front of the Jeep, count backward to the

fourth hole in the pinch weld flange.

FIGURE 5

From the center line of the fourth hole,

measure backward (toward the rear of the

Jeep) 11-3/4” and mark a vertical line in the

pinch weld flange.

FIGURE 6

From this mark, measure another 4-5/16”

toward the rear of the Jeep and make another

mark in the pinch weld flange.

FIGURE 7

Next, measure from the bottom edge of the

pinch weld flange, at each vertical mark, and

make a horizontal mark 5/16” up from the

bottom edge.

FIGURE 8

You should now have two cross-marks on

the pinch weld flange.

3. (2-door models only) Center punch and

drill two 1/4” holes through the pinch weld

flange, one at each cross-mark made in the

previous step.

FIGURE 9

Use the 7/16” drill bit to open up the two

holes. Use caution when drilling these holes

as the material is very thin and a large drill bit
