ENGINE & ATTACHING PARTS

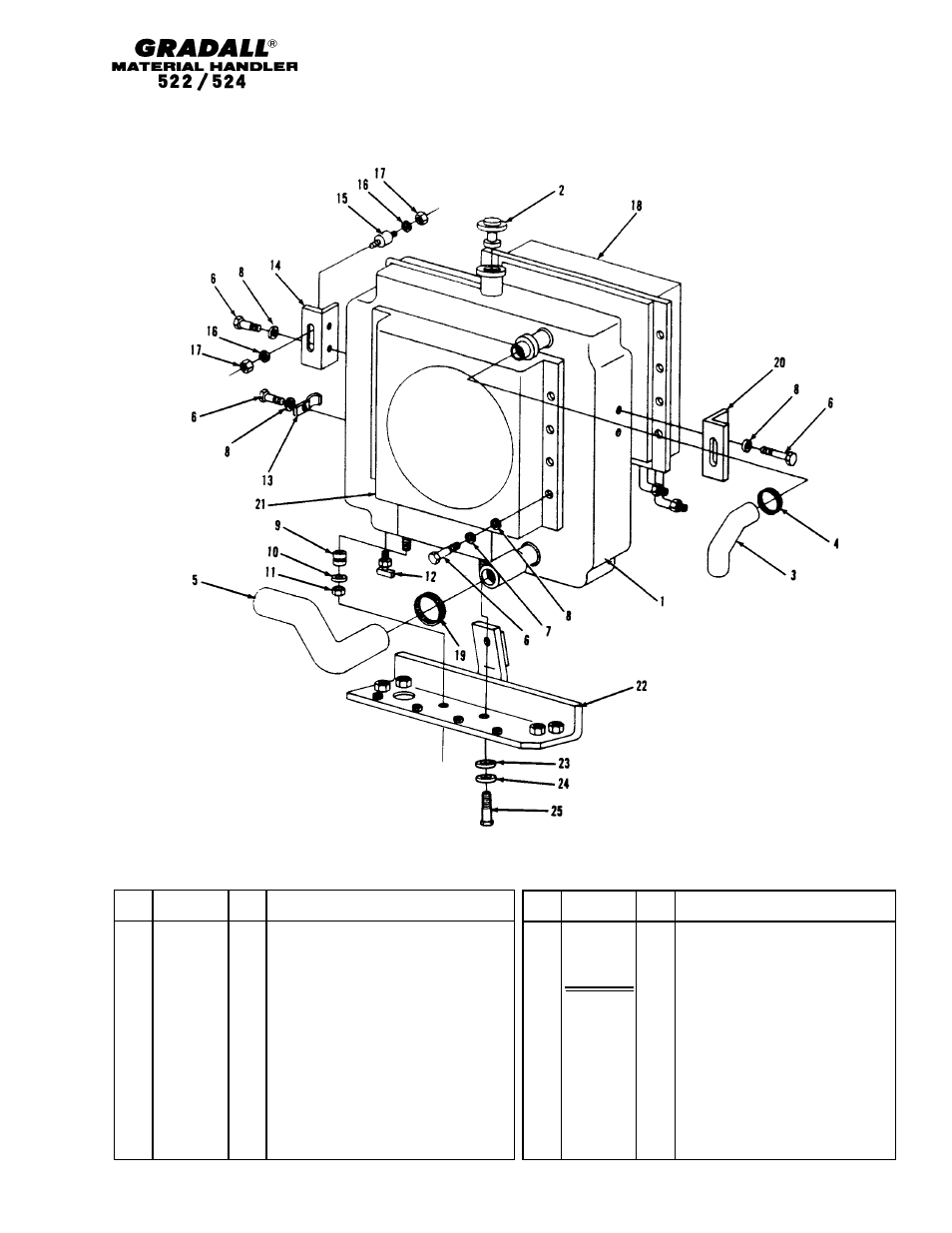

(9108-5013) Radiator Assembly
Starting Serial No. 0177005
Original Issue 1-90
Revised 2-23-98
5-6
Item
Part No.
Qty.
Description Of Part
9108-5013
Ref
RADIATOR ASSY (includes items 1, 2, 6,
thru 14, 19, 20, 21 & 22)
1
9108-3065
1
RADIATOR (includes item 2)
2
9108-4198
1
RADIATOR CAP, 15 PS1
3
9108-3094
1
UPPER RADIATOR HOSE
4
8507-1128
2
HOSE CLAMP
5
9108-3364
1
LOWER RADIATOR HOSE
6
8820-1016
17
HEX HD CAPSCREW, 5/16-18x1/2,
GR5
7
8856-1108
12
FLAT WASHER, 5/16
8
8855-1010
17
LOCKWASHER, 5/16
9
8368-3308
2
SHOCK MOUNT
10
9020-5918
2
WASHER
11
8852-1206
2
HEX LOCKNUT, 3/8-16
12
8452-1056
1
DRAIN COCK
13
2486-1170
1
CLAMP
Item
Part No.
Qty.
Description Of Part
14
9108-1181
1
MOUNTING BRACKET
15
9103-3137
1
SHOCK MOUNT
16
8856-1003
2
FLAT WASHER, 5/16
17
8852-1205
2
HEX LOCKNUT, 5/16-18
18
9108-3066
1
OIL COOLER (No Longer Available)
9112-5109
1
OIL COOLER KIT (includes one
9108-3573 oil cooler and one
8471-9110 hose assy)
19
8688-3327
2
HOSE CLAMP
20
9108-1541
1
MOUNTING BRACKET
21
9108-3085
1
RADIATOR SHROUD
22
9108-6041
1
RADIATOR MOUNT
23
8856-1006
4
FLAT WASHER, 1/2
24
8855-1013
4
LOCKWASHER, 1/2
25
8820-1067
4
HEX HD CAPSCREW,1/2-13X1-1/2,
GR5
971217-KG
* Added replacement kit for oil cooler that is no longer available.
