PCN 950861 MB
11-6
Item
Part No.
Qty.
Description Of Part
9131-5007
1
GAUGE PANEL ASSY (includes all
items)
1
9114-3138
1
FORMICA DASH PANEL
9114-3137
1
PANEL WIRING HARNESS
2
7738-3709
1
VOLTMETER
3
9114-3137
1
PANEL WIRING HARNESS
4
9114-3114
1
TOGGLE - DPDT
5
7738-3470
2
BOOT
6
2477-1004
1
BUTTON
7
9114-3130
1
HOUR METER
8
9105-3419
2
TIE WRAP
9
9114-3128
2
AMBER DASH LIGHT
Item
Part No.
Qty.
Description Of Part
10
9114-3127
1
RED DASH LIGHT
11
9114-3129
3
TINNERMAN NUT
12
9020-5686
1
FUEL GAUGE
13
9020-5687
1
WATER TEMP. GAUGE
14
9103-3247
1
OIL PRESSURE GAUGE
15
9114-3221
1
GAUGE PROTECTOR
16
9114-3277
4
RUBBER SPACER
17
8830-1075
4
MACHINE SCREW, #8-32X1"
18
8856-1104
4
STEEL PUNCHED WASHER
19
8850-1610
4
HEX NUT, #8-32
20
9100-3065
1
PLUG BUTTON
ELECTRICAL

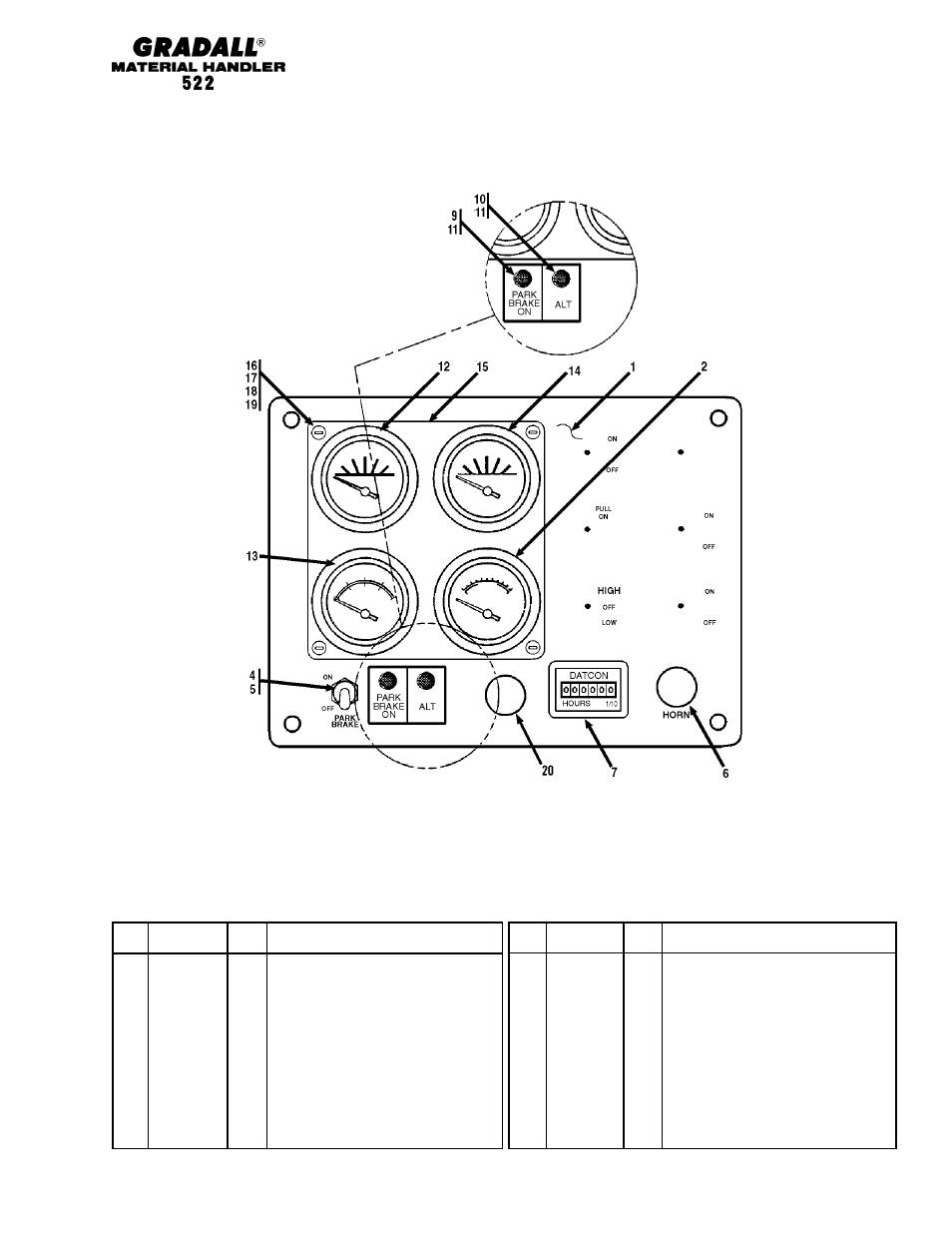

(9131-5007) Gauge Panel Assembly(522)
Starting Serial No. 0177122
Original Issue 12-95
Revised 10-24-97
* Changed part number on item 15
*
